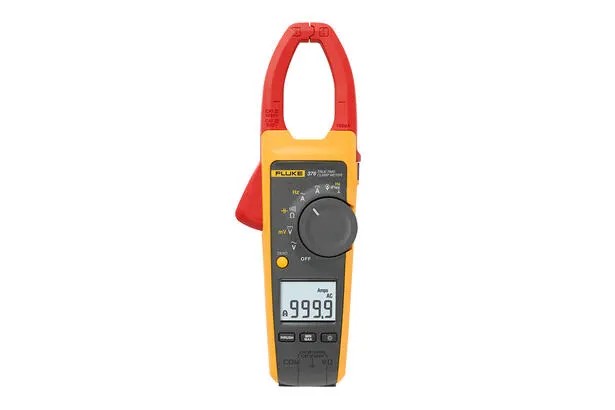

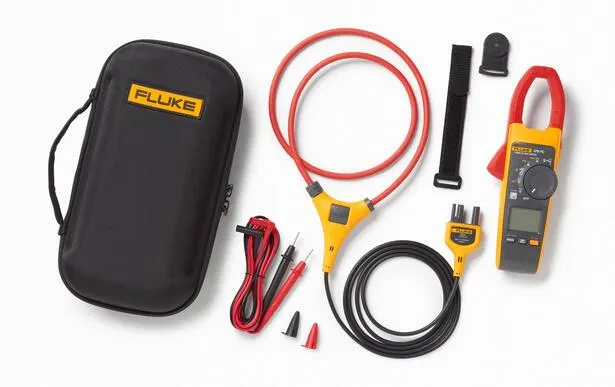

Fluke, 376, FC, TrueRMS, AC/DC, FC, traadita, Ampertangid,, 1000A, +, iFlex

• Mõõdab vahelduvvoolu kaasasoleva 18-tollise või 36-tollise iFlex vooluanduriga
• VFD madalpääsfilter mittelineaarsete signaalide täpseks mõõtmiseks
• Kaugjuhtimisega logimine, trendide jälgimine ja seire, et tuvastada ajutised rikked
• Sisselülitusvoolu mõõtmine müra filtreerimiseks ja käivitusvoolu registreerimiseks

Specifications: Fluke 376 FC True-RMS Clamp Meter with iFlex

General Specifications
AC Current via Jaw
Range				999.9 A
Resolution				0.1 A
Accuracy				2% ±5 digits (10 Hz to 100 Hz)
				2.5% ±5 digits (100-500 Hz)
Crest Factor (50 Hz/60 Hz)				3 @ 500 A
				2.5 @ 600 A
				Add 2% for C.F. >2

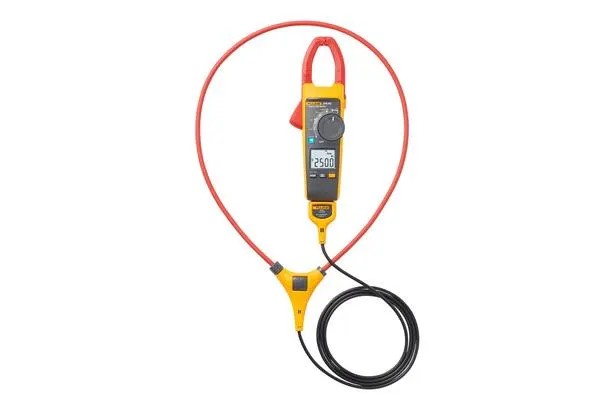

AC Current via Flexible Current Probe
Range				2500 A
Resolution				0.1 A (≤ 600 A)
				1 A (≤ 2500 A)
Accuracy				3% ±5 digits (5 – 500 Hz)
Crest Factor (50/60Hz)				3.0 at 1100 A
				2.5 at 1400 A
				1.42 at 2500 A
				Add 2% for C.F. > 2
	i2500-10 Flex		i2500-18 Flex			i2500-36 Flex
A
Distance from Optimum	0.5 in (12.7 mm)		1.4 in (35.6 mm)			4.8 in (122.2 mm)
Error	±0.5 %		±0.5 %			±0.5 %
B
Distance from Optimum	0.8 in (20.3 mm)		2.0 in (50.8 mm)			5.3 in (133.6 mm)
Error	±1.0 %		±1.0 %			±1.0 %
C
Distance from Optimum	1.4 in (35.6 mm)		2.5 in (63.5 mm)			5.8 in (147.6 mm)
Error	±2.0 %		±2.0 %			±2.0 %
Measurement uncertainty assumes centralized primary conductor at optimum position, no external electrical or magnetic field, and within operating temperature range.
DC Current
Range		999.9 A
Resolution		0.1 A
Accuracy		2% ±5 digits
AC Voltage
Range		1000 V
Resolution		0.1 V (≤600.0 V)
		1 V (≤1000 V)
Accuracy		1% ±5 digits (20 Hz to 500 Hz)
DC Voltage
Range		1000 V
Resolution		0.1 V (≤600.0 V)
		1 V (≤1000 V)
Accuracy		1% ±5 digits
mV dc
Range		500.0 mV
Resolution		0.1 mV
Accuracy		1% ±5 digits
Frequency via Jaw
Range		5.0 Hz to 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ±5 digits
Trigger level		5 Hz to 10 Hz, ≥10 A
		10 Hz to 100 Hz, ≥5 A
		100 Hz to 500 Hz, ≥10 A
Frequency via Flexible Current Probe
Range		5.0 Hz to 500.0 Hz
Resolution		0.1 Hz
Accuracy		0.5% ±5 digits
Trigger level		5 Hz to 20 Hz, ≥25 A
		20 Hz to 100 Hz, ≥20 A
		100 Hz to 500 Hz, ≥25 A
Resistance
Range		60 kΩ
Resolution		0.1 Ω (≤600 Ω)
		1 Ω (≤6000 Ω)
		10 Ω (≤60 kΩ)
Accuracy		1% ±5 digits
Capacitance
Range		1000 μF
Resolution		0.1 μF (≤ 100 μF)
		1 μ F (≤ 1000 μF)
Accuracy		1% ±4 digits
Mechanical Specifications
Maximum voltage between any terminal and earth ground		1000 V
Batteries		2 AA, NEDA 15A, IEC LR6
Operating temperature		-10 °C to +50 °C
Storage temperature		-40 °C to +60 °C
Operating humidity - non-condensing (< 10°C)		≤90% RH (at 10 °C to 30 °C)
		≤75% RH (at 30 °C to 40 °C)
		≤45% RH (at 40 °C to 50 °C)
Operating altitude		2000 m
Storage altitude		12,000 m
Size (L x W x H)		249 x 85 x 45 mm
Weight		395 g
Jaw opening		34 mm
