Voolutangid / multimeeter AC/DC 600A, TrueRMS, Termokaamera 80x60 pix

Voolutangid / multimeeter AC/DC 600A, TrueRMS, Termokaamera 80x60 pix

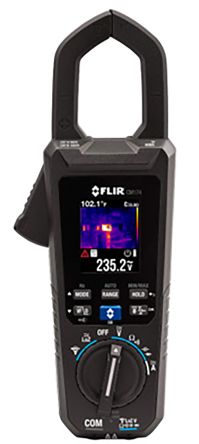

Model Number	FLIR CM174
Thermal Imaging
Thermal Imaging Detector	FLIR Lepton microbolometer
Thermal Image Resolution	4800 pixels (80 × 60)
Field of View	38.6° × 50°
Thermal Image Palettes	Iron, Rainbow, Ice, Greyscale
Image Frame Rate	9 Hz
Temperature Measurement	Center point of thermal image
Temperature Range	-13°F to 302°F (-25°C to 150°C)
Temperature Distance to Spot Ratio	30:1
Temperature Accuracy	±5.4°F (3°C) or ±3% of rdg
Spectral Response	8–14 μm
Temperature Targeting	Class 1 Laser Pointer and Crosshair on display
Emissivity Settings	4 Presets with Custom Adjustment

Electrical Measurements	Range	Basic Accuracy
AC/DC Voltage	1000V	±1.0%
VFD AC Voltage	1000V	±1.0%
LoZ Mode AC Voltage	1000V	±1.0%
LoZ Mode DC Voltage	1000V	±1.0%
DC Current	600.0A	±2.0%
AC Current	600.0A	±2.0%
VFD AC Current	600.0A	±2.0%
Inrush AC Current	600.0A	±2.0%
Inrush AC Current Threshold	Min 0.5A Integration Time 100ms
Frequency	60.00kHz	±0.1%
Resistance	6000Ω	±1.0%
Continuity	6000Ω	±1.0%
Capacitance	1000μF	±1.0%
Diode	1.5V	±1.5%
General Information
Display	6000 Count 2.0” (50mm) Color TFT
Jaw Opening	1.38" (35mm), 1250MCM
Category Rating	CAT IV-600V, CAT III-1000V
Certifications	UL
Battery Type	4 × AAA
Warranty	10 yrs on product and detector

255,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: CM174
Tootekood: EE-100-175-612

Spetsifikatsioon

Weight

0.426 kg
