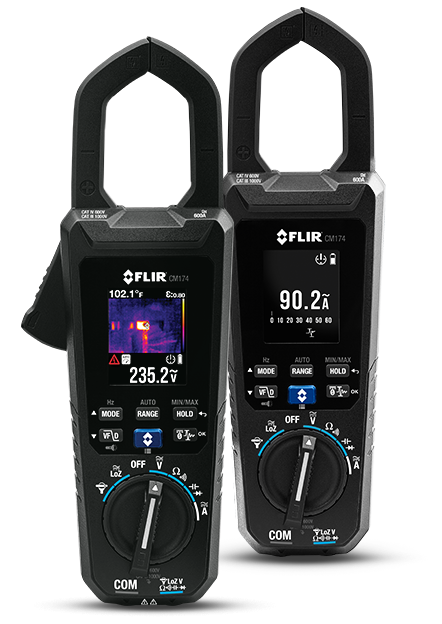

FLIR 600A AC/DC Imaging Clamp Meter with IGM

Model Number FLIR CM174
Thermal Imaging
Thermal Imaging Detector FLIR Lepton microbolometer
Thermal Image Resolution 4800 pixels (80 × 60)
Field of View 38.6° × 50°
Thermal Image Palettes Iron, Rainbow, Ice, Greyscale
Image Frame Rate 9 Hz
Temperature Measurement Center point of thermal image
Temperature Range -13°F to 302°F (-25°C to 150°C)
Temperature Distance to Spot Ratio 30:1
Temperature Accuracy ±5.4°F (3°C) or ±3% of rdg
Spectral Response 8–14 μm
Temperature Targeting Class 1 Laser Pointer and Crosshair on display
Emissivity Settings 4 Presets with Custom Adjustment
Electrical Measurements Range Basic Accuracy
AC/DC Voltage 1000V ±1.0%
VFD AC Voltage 1000V ±1.0%
LoZ Mode AC Voltage 1000V ±1.0%
LoZ Mode DC Voltage 1000V ±1.0%
DC Current 600.0A ±2.0%
AC Current 600.0A ±2.0%
VFD AC Current 600.0A ±2.0%
Inrush AC Current 600.0A ±2.0%
Inrush AC Current Threshold Min 0.5A Integration Time 100ms
Frequency 60.00kHz ±0.1%
Resistance 6000Ω ±1.0%
Continuity 6000Ω ±1.0%
Capacitance 1000μF ±1.0%
Diode 1.5V ±1.5%
General Information
Display 6000 Count 2.0” (50mm) Color TFT
Jaw Opening 1.38" (35mm), 1250MCM
Category Rating CAT IV-600V, CAT III-1000V
Certifications UL
Battery Type 4 × AAA
Warranty10 yrs on product and detector
255.00 € 255.00 € (Tax excluded)

  • Weight
Add to cart
Add to wishlist
Terms and Conditions
Prices exclude VAT.

Manufacturer Part Number: CM174
Internal Reference: EE-100-175-612

Specifications

Weight 0.426 kg
