Keerdpaarkaabel Cat7 S/FTP 4x2x0,5 ühekiuline 23AWG LSZH Cca valge 500m/rull

Portfolio	NETCONNECT®
Product Type	Twisted pair cable
Regional Availability	EMEA
Standards And Qualifications
EN50575 CPR Cable EuroClass	Cca | s1 | d1 | a1

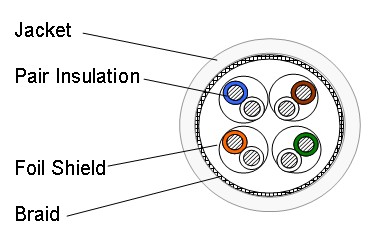

Cross Section Drawing
Click on image below to enlarge.
Construction Materials
Jacket Material	Low Smoke Zero Halogen (LSZH)
Conductor Material	Bare copper
Insulation Material	Polyolefin
Separator Material	Polyolefin
Shield (Braid) Material	Tinned copper
Shield (Tape) Material	Polyester/Aluminum shield
Dimensions
Cable Length	500 m | 1640 ft
Cable Length Tolerance	±5%
Cable Weight	38.30 lb/kft
Diameter Over Jacket, nominal	7.391 mm | 0.291 in
Jacket Thickness	0.635 mm | 0.025 in
Electrical Performance
Click on image below to enlarge.
Electrical Specifications
ANSI/TIA Category	7
dc Resistance Unbalance, maximum	2 %
dc Resistance, maximum	7.61 ohms/100 m
Mutual Capacitance at Frequency	4.2 nF/100 m @ 1 kHz
Nominal Velocity of Propagation (NVP)	80 %
Operating Frequency, maximum	600 MHz
Operating Voltage, maximum	80 V
Transmission Standards	CENELEC EN 50288-4-1 | ISO/IEC 11801 Class F
Note	All electrical transmission tests include swept frequency measurements
Environmental Specifications
Environmental Space	Low Smoke Zero Halogen (LSZH)
Smoke Test Method	IEC 61034-2
Acid Gas Test Method	EN 50267-2-3
Installation Temperature	0 °C to +50 °C (+32 °F to +122 °F)
Operating Temperature	-20 °C to +60 °C (-4 °F to +140 °F)
General Specifications
Cable Type	S/FTP (shielded)
Packaging Type	Reel
Pairs, quantity	4
Cable Component Type	Horizontal
Jacket Color	White
Product Number	CS54ZC
Conductor Gauge, singles	23 AWG
Conductor Type, singles	Solid
Conductors, quantity	8
Mechanical Specifications
Pulling Tension, maximum	11 kg | 25 lb

Regulatory Compliance/Certifications

Agency	Classification
RoHS 2011/65/EU	Compliant
ISO 9001:2015	Designed, manufactured and/or distributed under this quality management system
CENELEC	EN 50575 compliant, Declaration of Performance (DoP) available

1,54 € 1,54 € (ilma km-ta)

• Cable material class

  • Cca

• Cable shielding

  • S/FTP

• Cat cables category

  • Cat7

• Color

  • White

• Suitable for outside

  • Indoor only

• Weight

  • 0.04 kg

 Lisa ostukorvi

Add to compare Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

884021358_16_CS54ZC_WHT_C7_4_23_S_FTP_RL_500M.pdf commscope (4).pdf

Manufacturer Part Number: 884021358/16
Tootekood: EE-100-169-616
