Hardware Specifications

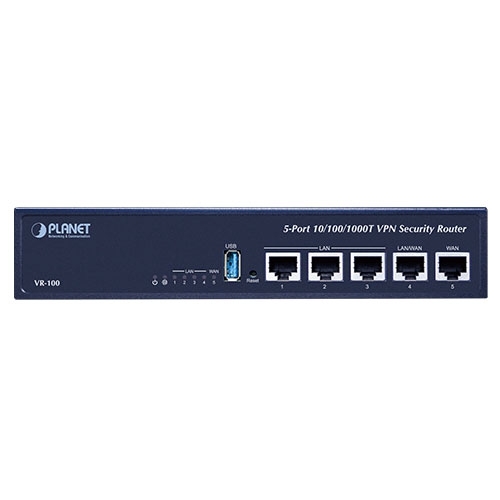

Ethernet5 10/100/1000BASE-T RJ45 Ethernet ports including
3 LAN ports (Port-1 to Port-3)
1 LAN/WAN port (Port-4)
1 WAN port (Port-5)
USB Port1 USB 3.0 port for system configuration backup and restore
Reset ButtonReset to factory default
Thermal FanFanless
LED IndicatorsPWR (Green)
Internet (Green)
LAN/WAN (Green)
InstallationDesktop installation or rack mounting (optional)

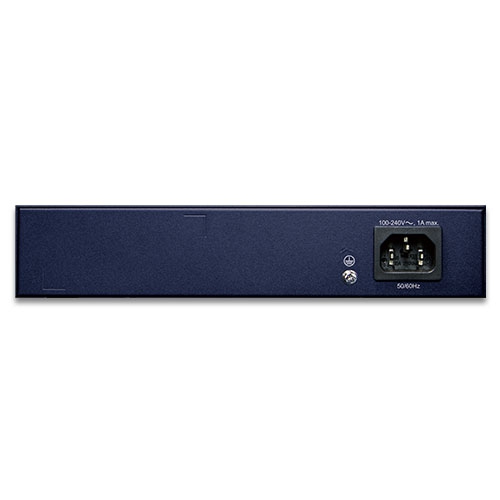

Power Requirements100-240V AC, 1A max.
Power Consumption13W max.
Weight0.85kg
Dimensions (W x D x H)217 x 135 x 43.5 mm
EnclosureMetal
Security Service
Firewall SecurityCybersecurity
Stateful packet inspection (SPI)
Anti-DoS/DDoS protection
ALG (Application Layer Gateway)SIP, RTSP, FTP, H.323, TFTP
NATPort forwarding
DMZ Host
UPnP
Content FilteringMAC filtering
IP filtering
Web filtering
Bandwidth ManagementOutbound load balancing
Failover for dual-WAN
QoS (Quality of Service)
Networking
Operation ModeRouting mode
Routing ProtocolStatic route, dynamic route (RIP), OSPF
VLAN802.1q tag-based, port-based, multi-VLAN
MulticastIGMP proxy
NAT ThroughputMax. 900Mbps
Outbound Load BalancingSupported algorithms: Weight
ProtocolIPv4, IPv6, TCP/IP, UDP, ARP, HTTP, HTTPS, NTP, DNS, PLANET DDNS, PLANET Easy DDNS, DHCP, , PPPoE, SNMPv1/v2c/v3
Key FeaturesCaptive portal
RADIUS server/client
VPN
VPN FunctionIPSec/Remote server (Net-to-Net, Host-to-Net), GRE, PPTP server, L2TP server, SSL server/client (Open VPN)
VPN ThroughputMax. 60Mbps
Encryption MethodsDES, 3DES, AES or AES-128/192/256 encrypting
VPN TunnelsMax. 60
Authentication MethodsMD5/SHA-1/SHA-256/SHA-384/SHA-512 authentication algorithm
Management
Basic Management InterfacesWeb browser
SNMP v1, v2c
PLANET Smart Discovery utility/UNI-NMS supported
Secure Management InterfacesSSHv2, TLSv1.2, SNMP v3
System LogSystem Event Log
OthersSetup wizard
Dashboard
System status/service
Statistics
Connection status
Auto reboot
Diagnostics
Standards Conformance
Regulatory ComplianceCE, FCC
Environment Specifications
OperatingTemperature: 0 ~ 50 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
StorageTemperature: -10 ~ 60 degrees C
Relative Humidity: 5 ~ 95% (non-condensing)
Standard Accessories
Packet ContentsVR-100 x 1
Quick Installation Guide x 1
Power Cord x 1
Feet Pads x 4
