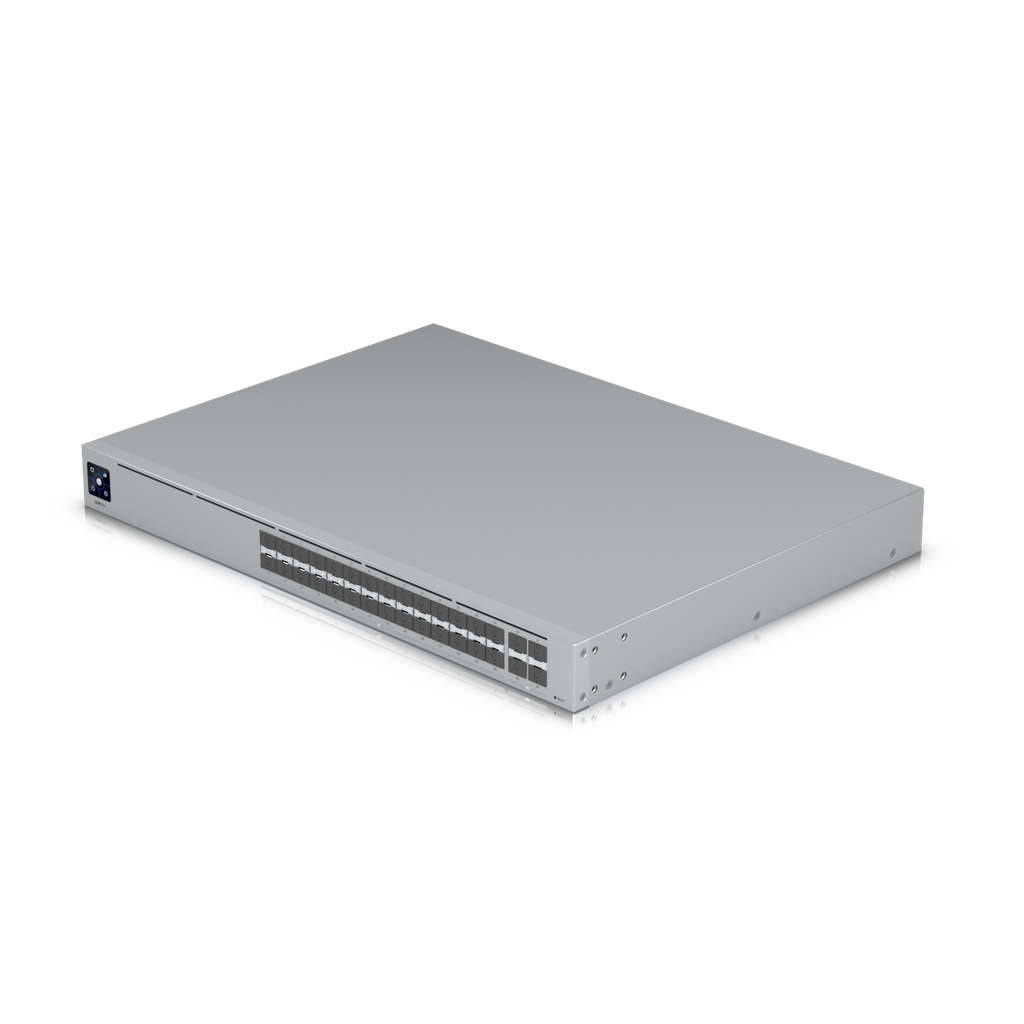

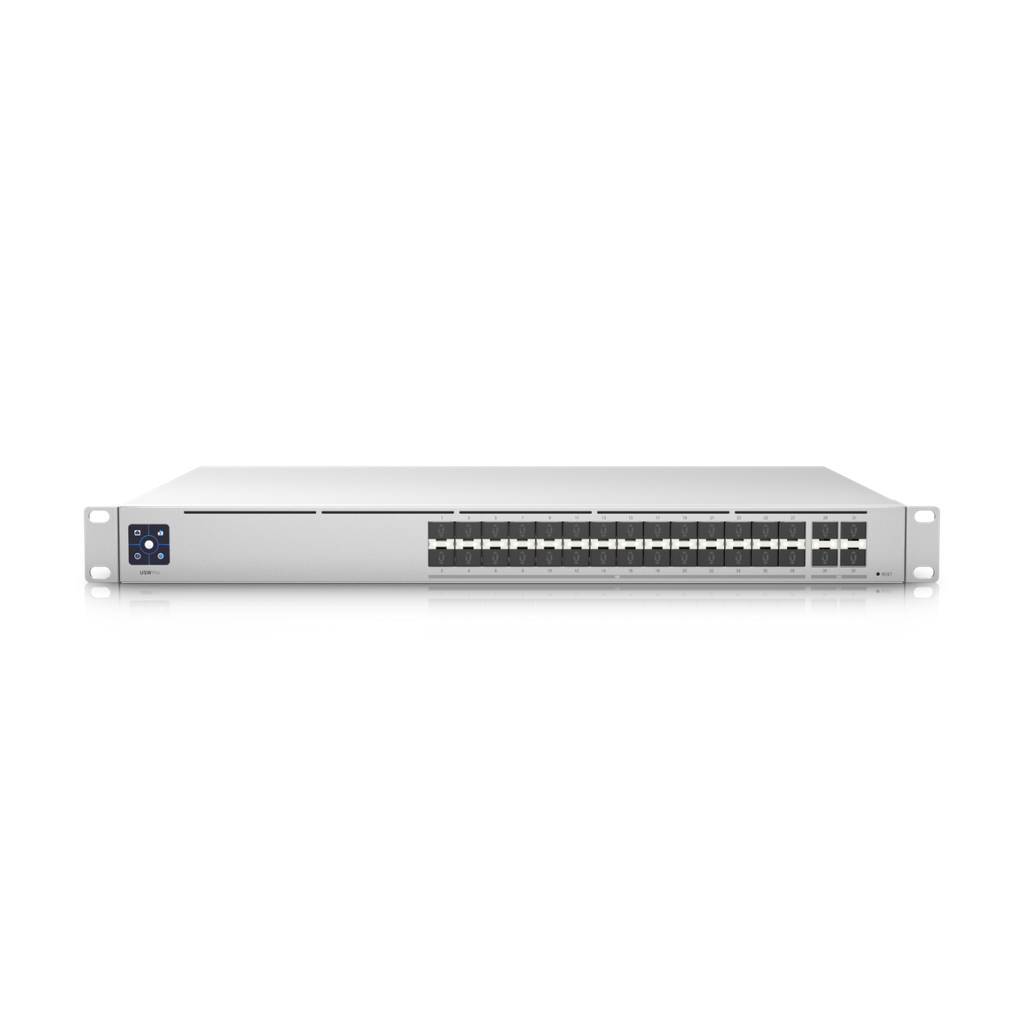

See suure jõudlusega Layer 3 kiudoptiline switch on mõeldud ettevõtete võrgulahenduste jaoks. Sellel on 28 1/10G SFP+ porti ja 4 1/10/25G SFP28 porti, pakkudes 380 Gbps mittetõkestavat läbilaskevõimet ja 760 Gbps switching capacity, mis sobib nõudlikele töökoormustele. Vastupidav SGCC terasest korpus ning 1,3" värviline LCM-puutetundlik ekraan lihtsustavad haldamist. Täiustatud Layer 2 ja Layer 3 funktsioonid, nagu DHCP relay, LACP agregatsioon ja staatiline marsruutimine, tagavad tõhusa ja turvalise võrgu juhtimise. Maksimaalse voolutarbega 100W ja ESD/EMP kaitsega mudel töötab usaldusväärselt temperatuurivahemikus -5 kuni 40°C. Sertifikaadid CE, FCC ja IC teevad sellest switchist ideaalse lahenduse skaleeritavate ja turvaliste ettevõtete võrkude jaoks.
| Mechanical |
|---|
| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mounting brackets: 4.6 kg (10.1 lb)
With mounting brackets: 4.7 kg (10.4 lb) |
| Enclosure material | SGCC steel |
| Hardware |
|---|
| Management interface | Ethernet In-Band |
| Networking interface | (28) 1/10G SFP+ ports
(4) 1/10/25G SFP28 ports*
*Don't support mixed speed at 25 Gbps mode. Once one of the ports is configured at 25 Gbps mode, the others will be limited at 25 Gbps too. Supports mixed speed when all ports are at 1 or 10 Gbps. |
| Total non-blocking throughput | 380 Gbps |
| Switching capacity | 760 Gbps |
| Forwarding rate | 565.44 Mpps |
| Power method | (1) Universal input, 100—240V AC, 2A Max., 50/60 Hz
(1) USP RPS DC input, 11.5V DC, 8.7A |
| Power supply | AC/DC, internal, 100W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W |
| ESD/EMP protection | Air: ± 16kV, contact: ± 12kV |
| Services | SMB Layer 3 10/25 G Fiber switch |
| LCM display | (1) 1.3" LCM color touchscreen |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features |
|---|
| Layer 2 features | IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks |
| LEDs |
|---|
| System | Status |
| SFP28/SFP+ | Link/activity |
| Application Requirements |
|---|
| UniFi Network | Version 6.1.25 and later |
