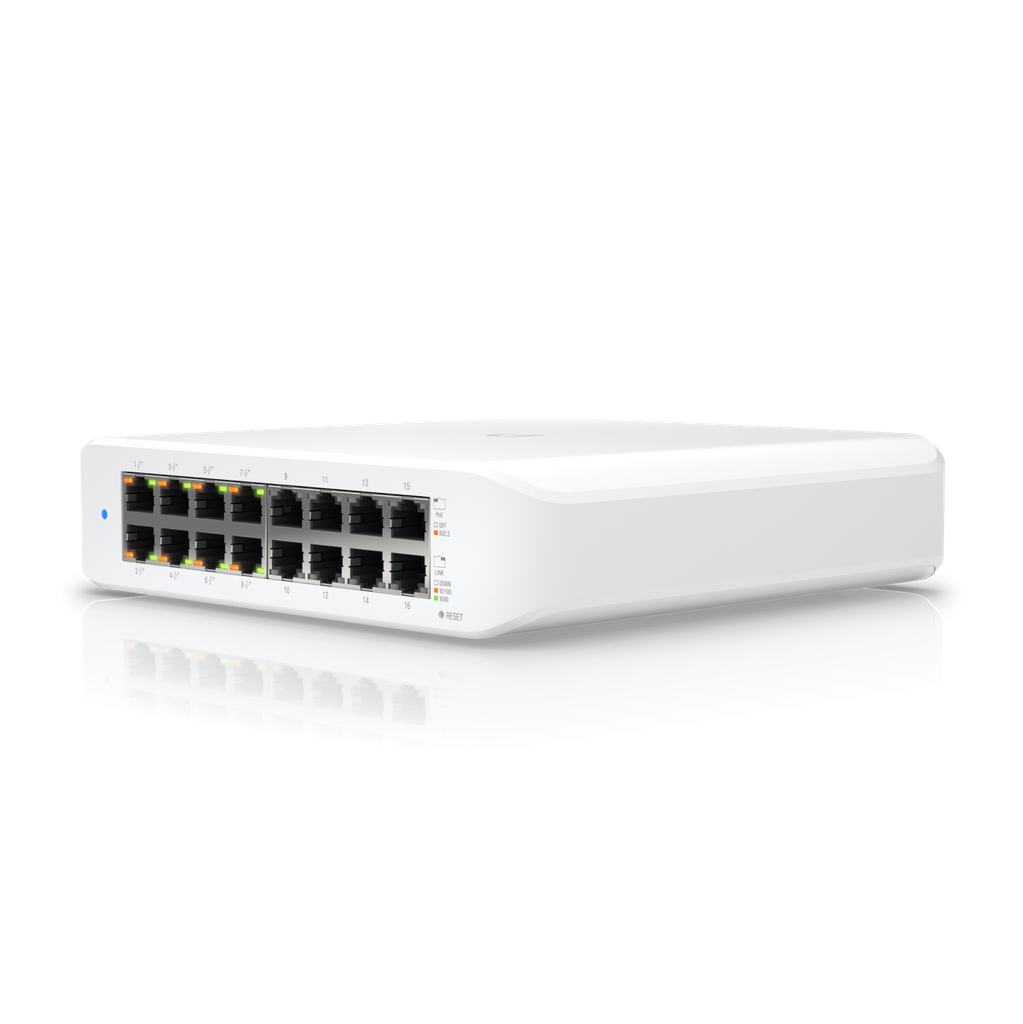

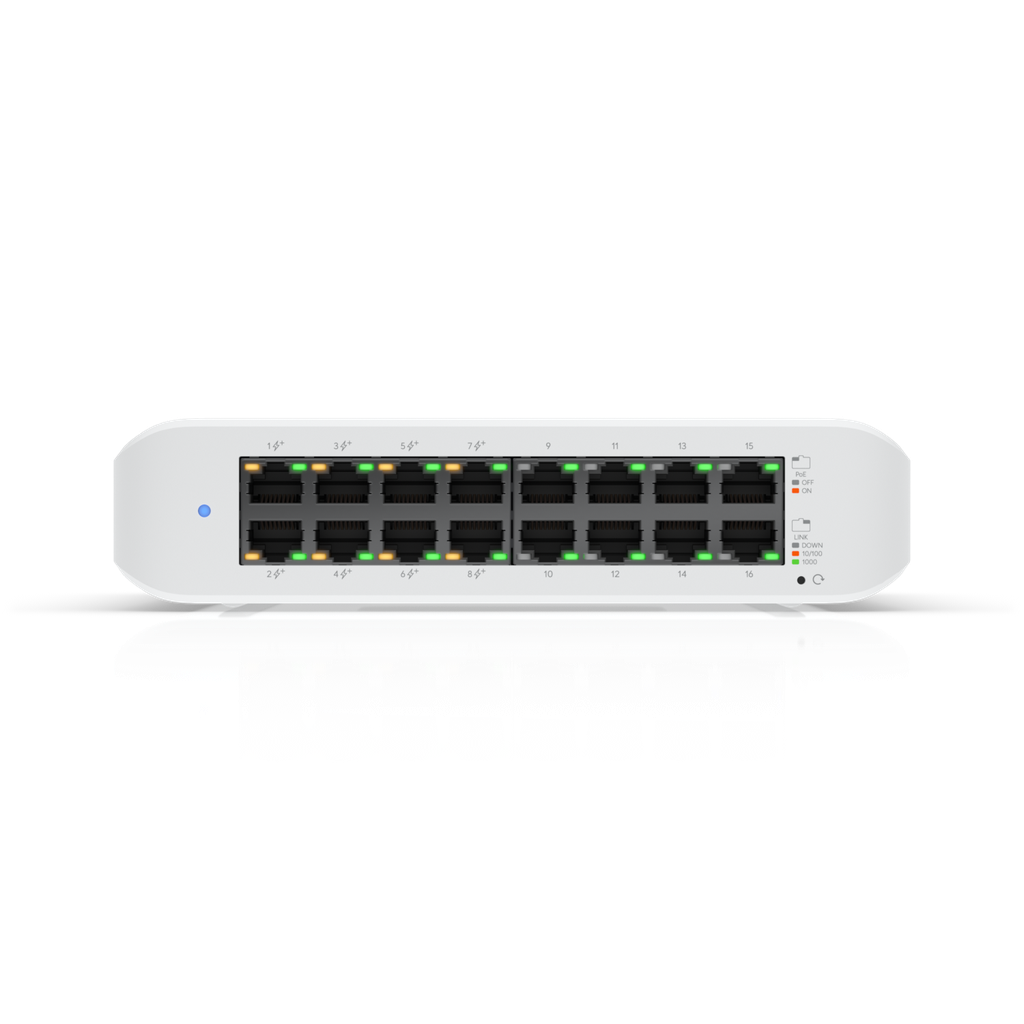

Seinale kinnitatav 16 pordiga 2. kihi PoE switch, millel on ventilaatorita jahutussüsteem.
(8) GbE PoE+ porti, (8) GbE porti
45 W koguvõimsus PoE jaoks
| Mechanical |
|---|
| Dimensions | 192 x 185 x 44 mm (7.6 x 7.3 x 1.7") |
| Weight | 1.2 kg (2.6 lb) |
| Enclosure material | Polycarbonate |
| Hardware |
|---|
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports |
| PoE interface | (8) PoE/PoE+ (Pins 1, 2+; 3, 6-) |
| Total non-blocking throughput | 16 Gbps |
| Switching capacity | 32 Gbps |
| Forwarding rate | 23.808 Mpps |
| Power method | Universal input, 100—240V AC |
| Power supply | AC/DC, internal, 60W |
| Max. power consumption | 15W (Excluding PoE output) |
| Total available PoE | 45W |
| Max. PoE wattage per port by PSE | PoE+: 30W |
| Button | Factory reset |
| Ambient operating temperature | -15 to 40° C (5 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Switching Features |
|---|
| Layer 2 features | IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs |
| Layer 3 features | – |
| LEDs |
|---|
| System | Status |
| Ethernet | PoE
Speed/link/activity |
| PoE | Link/activity |
| Application Requirements |
|---|
| UniFi Network | Version 7.2.94 and later |
