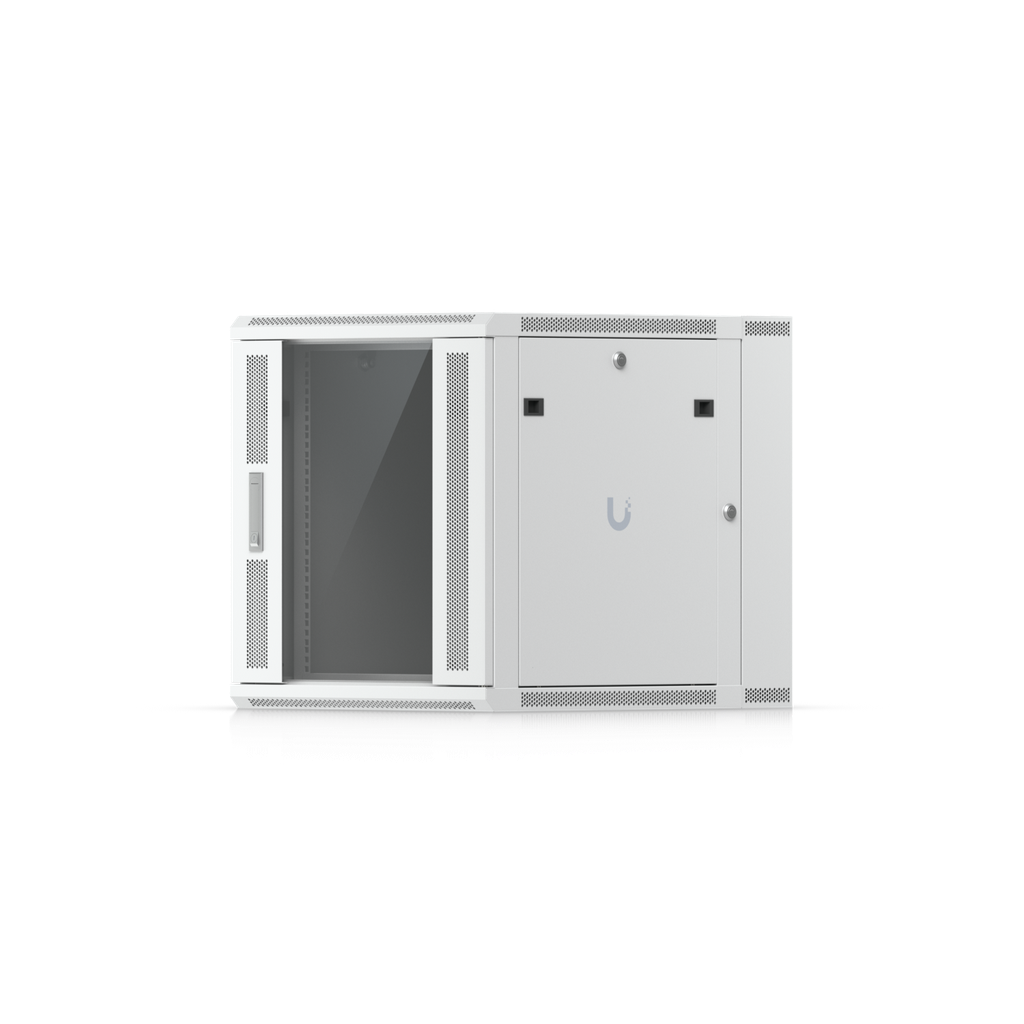

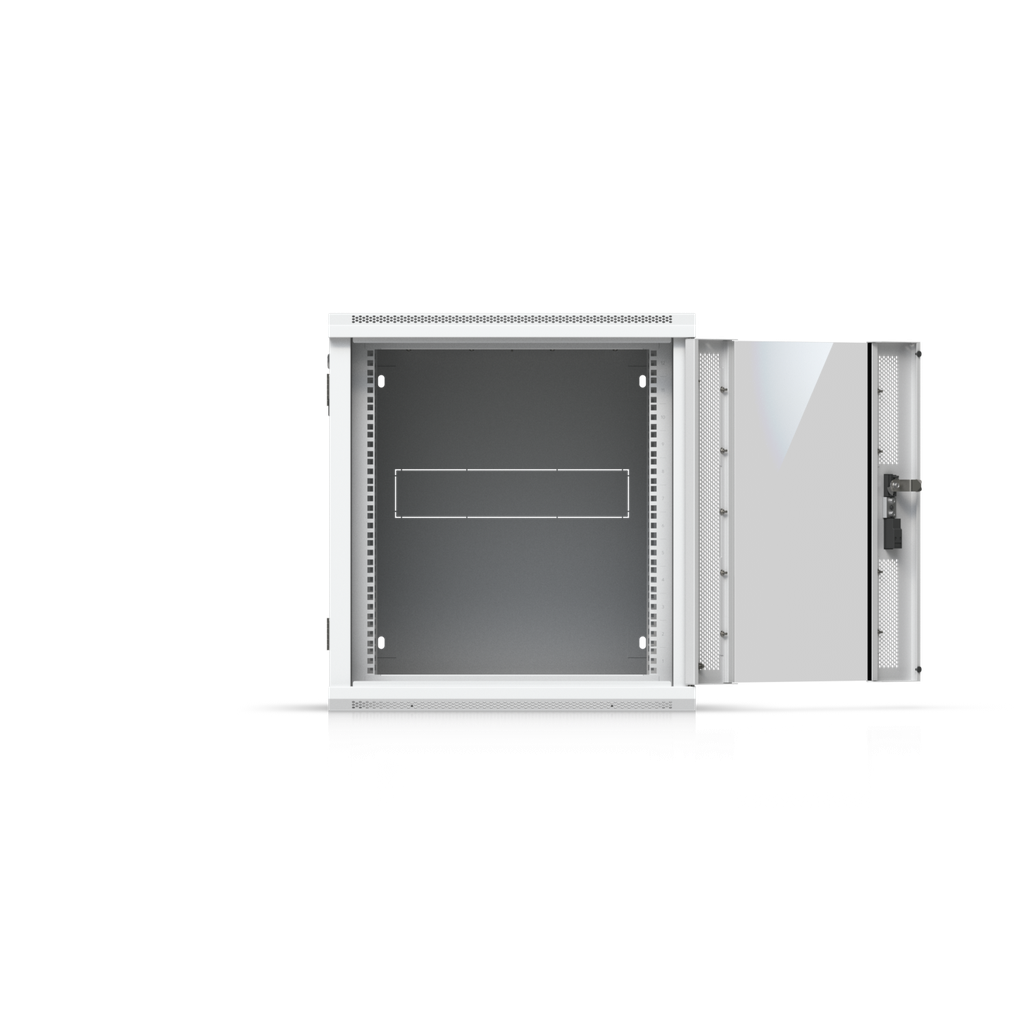

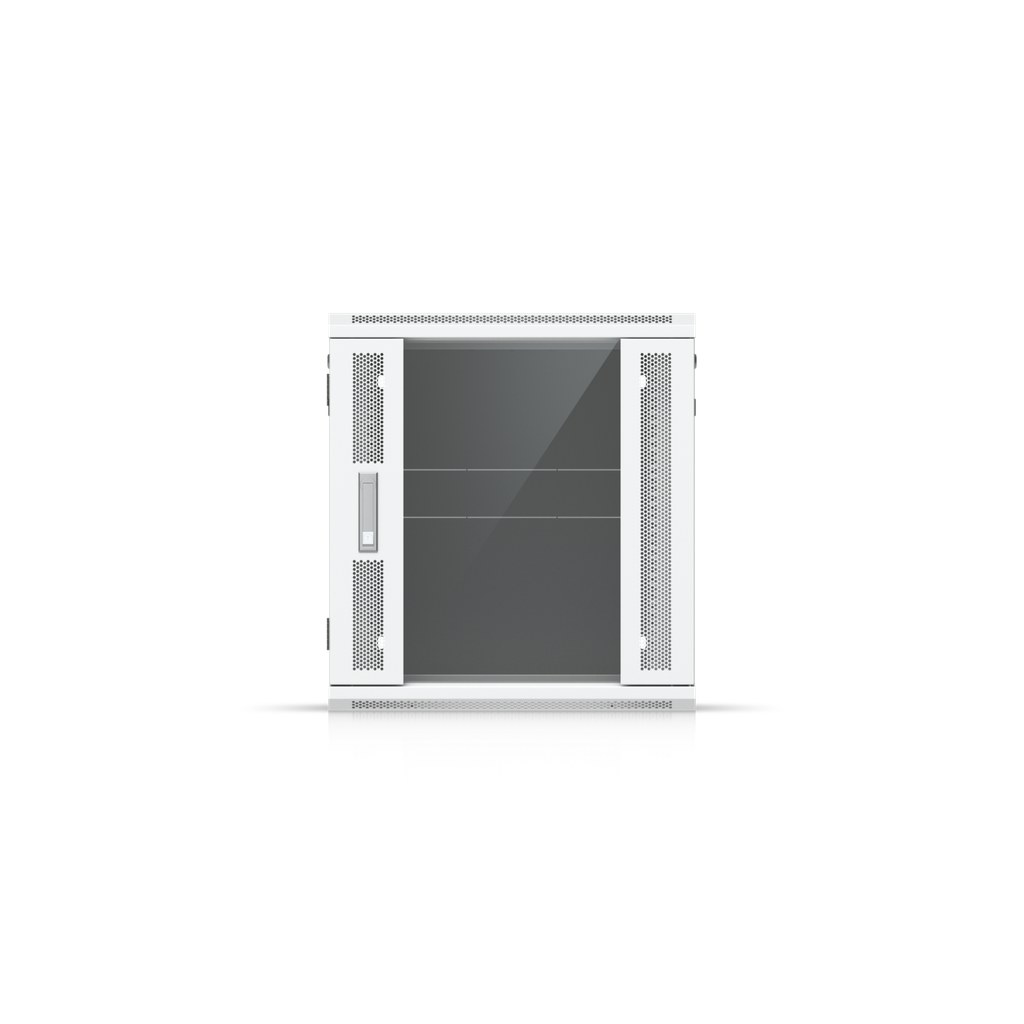

Täielikult kokkupandud seinakinnitusega rack-kapp klaasist esipaneeli, lukustatava hingedega tagaukse, kahe ventilaatori ja eemaldatavate külgpaneelidega.
Hingedega tagauks turvaliseks ja lihtsaks paigalduseks ning kaablite haldamiseks
Sisseehitatud ventilaator temperatuurianduriga tõhusaks ventilatsiooniks
Eemaldatavad külgpaneelid lihtsaks ligipääsuks
| Mechanical |
|---|
| Dimensions | Device: 600 x 720 x 650 mm (23.6 x 28.3 x 25.6")
With packaging: 900 x 900 x 940 mm (35.4 x 35.4 x 37") |
| Weight | Device: 38 kg (84 lb)
With packaging: 51.5 kg (113.5 lb) |
| Enclosure material | Sheet metal |
| Color | White |
| Treatment | Powder coating |
| Rack Features |
|---|
| U height | 12U |
| Rack type | 4 post, enclosed cabinet |
| Adjustable mounting depth | Default 452 mm (17.8")
Max. 532 mm (20.9")
Min. 72 mm (2.8") |
| Max. weight capacity | 100 kg (220 lb) |
| Front door | Tempered glass |
| Rear door | Metal |
| Side panels | Removable |
| Mounting | Wall mount |
| Fan module | Yes (pre-installed) |
| Thermal sensor switch | Sensor OFF (Switch Pop-Up)
The fan module operates continuously when the power cable is connected.
Sensor ON (Switch Drop-Down)
The fan module activates automatically when the internal cabinet temperature exceeds 35°C. |
| Grounding lugs | Yes (pre-installed) |
| Security | (1) front door lock
(1) rear door lock
(2) side panel locks
(3) keys |
| Standard | CE; EIA/ECA-310-E; RoHS |
