U-POE-at on ideaalne lahendus PoE-toite vajalike seadmete, näiteks Wi-Fi pääsupunktide, kaamerate ja teiste võrguseadmete jaoks, pakkudes usaldusväärset ja kiiret andmeside ning toite edastust ühes seadmes. Tänu oma kompaktsele disainile, kõrgele efektiivsusele ja integreeritud kaitsemehhanismidele on see seade kindel valik igas võrguinfrastruktuuris.
Technical Specification
PoE standard IEEE 802.3at

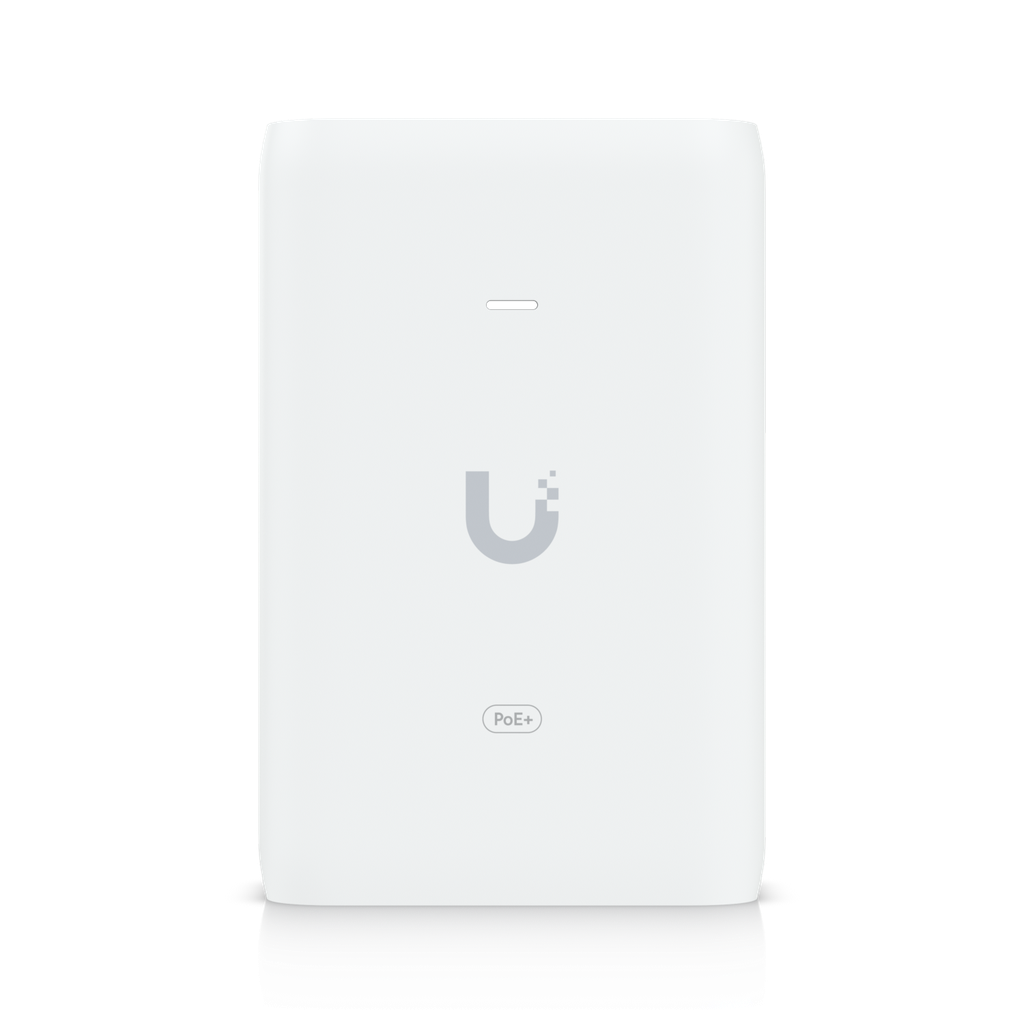

ModelU-POE-at
Dimensions93 x 62 x 35 mm (3.66 x 2.44 x 1.38")
Weight156 g (5.5 oz)
Output voltage48V DC @ 0.65A
LAN activity indicatorNo
Gigabit LAN portYes
Remote reset capabilityNo
Reset buttonNo
Rated voltage100—240V AC @ 50/60Hz
Input current0.75A Max.
Inrush current<100A peak at 26_
Efficiency87%
Output ripple1% max.
Switching frequency70 kHz max.
Line regulation≤ 3%
Load regulation≤ 5%
2-pair poweringPins 4, 5 (+) and 7, 8 (-)
4-pair poweringNo
AC connectorIEC-320 C6
Data In / PoERJ45 shielded socket
Surge protectionDifference and common mode
Clamping protection11V data, 60V power
Max. surge discharge1500A (8/20 μs) power
Peak pulse current36A (10/1000 μs) data
Shunt capacitance<5 pF data
Response time<1 ns
Ambient operating temperature0 to 40° C (32 to 104° F)
Storage temperature-30 to 70°C (-22 to 158° F)
Ambient operating humidity10 to 95% noncondensing

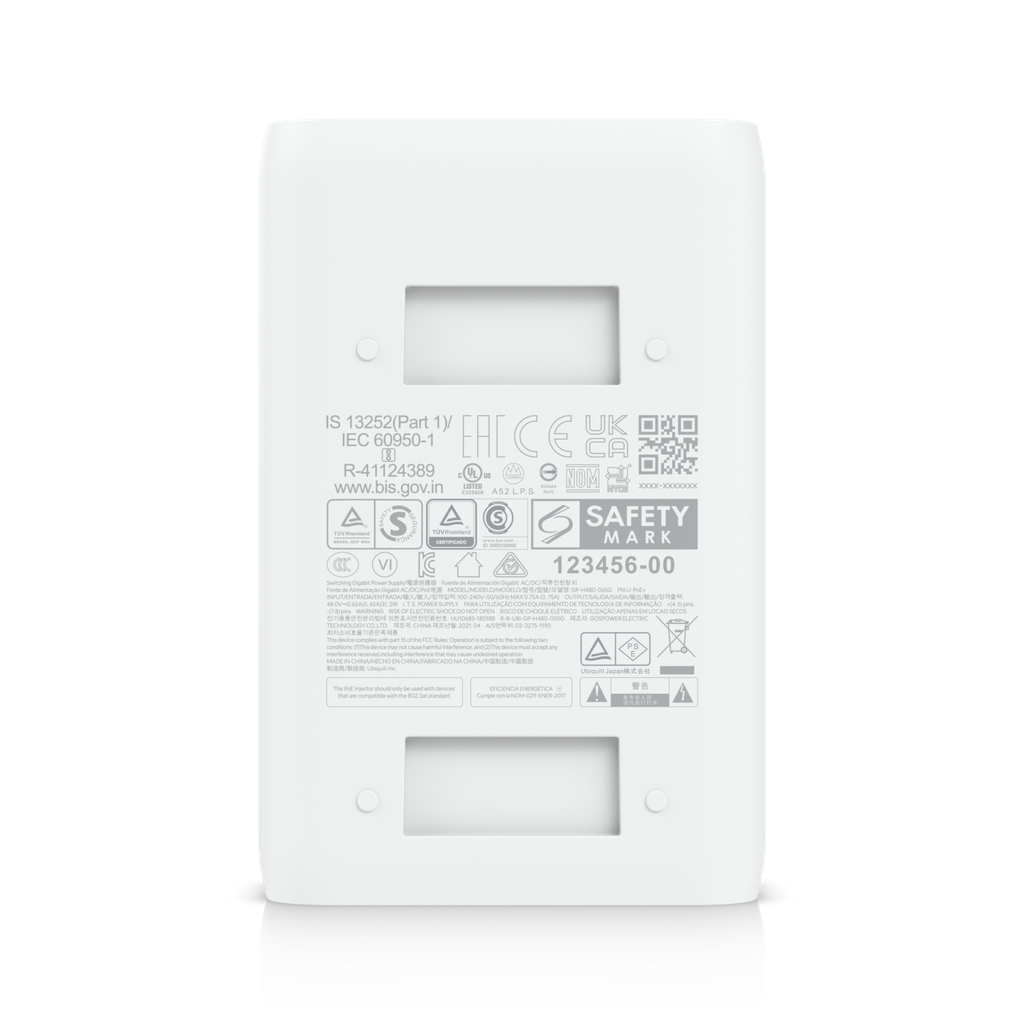

CertificationsCE, FCC, IC, UL
