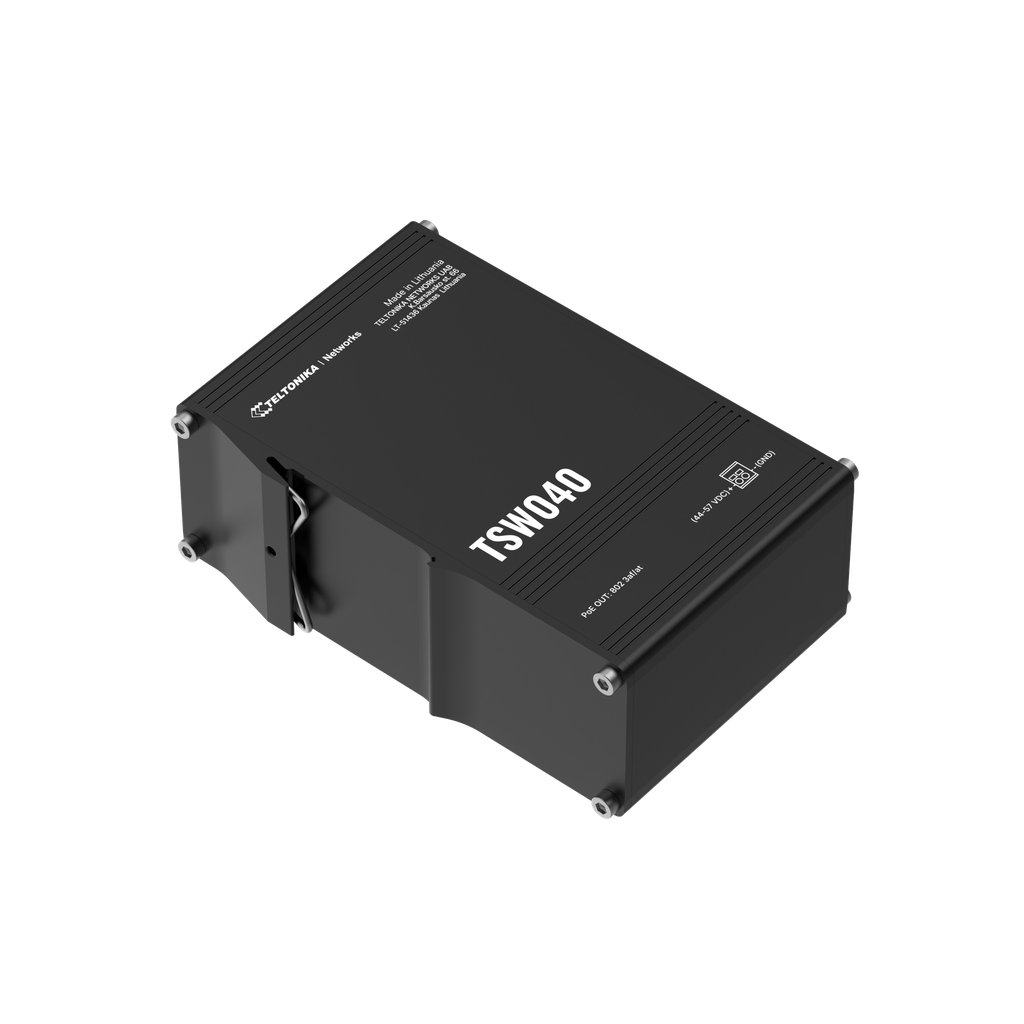

TSW040 on Teltonika 8-portiline haldamata PoE+ kommutaator, millel on kaheksa RJ45 porti, mille koguvõimsus on 240 W või kuni 30 W ühe pordi kohta. Sellel kompaktsel ja vastupidaval 8-portilisel kommutaatoril on ka 2-poolne toitesisend ja integreeritud DIN-kandur lihtsaks paigaldamiseks, mis muudab selle ideaalseks tööstuslikeks rakendusteks. TSW040-l on lai pingevahemik 7-57 VDC ja PoE-väljalülituse pingevahemik 44-57 VDC.
8 X POE-OUT RJ45
Kaheksa PoE-out Ethernet-porti, mille koguvõimsuse eelarve on 240 W
2-POOLNE TOITESISEND
Lihtne ja sobib tööstuslikeks rakendusteks
INTEGREERITUD DIN-KÕVAKETTAGA
Lihtne paigaldus plug-and-play kasutuselevõtuks
LAI PINGEVAHEMIK
7-57 VDC või 44-57 VDC PoE-väljalülitamiseks
ETHERNET
Ethernet
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
POE OUT
PoE ports
Port 1 - 8
PoE standards
802.3af and 802.3at compliant PSE ports, over spare pairs - Mode B
PoE Max Power per Port (at PSE)
30 W
Total PoE Power Budget (at PSE)
240 W
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
POWER
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption
Idle: 1 W / Max: 2 W / PoE Max: 246 W

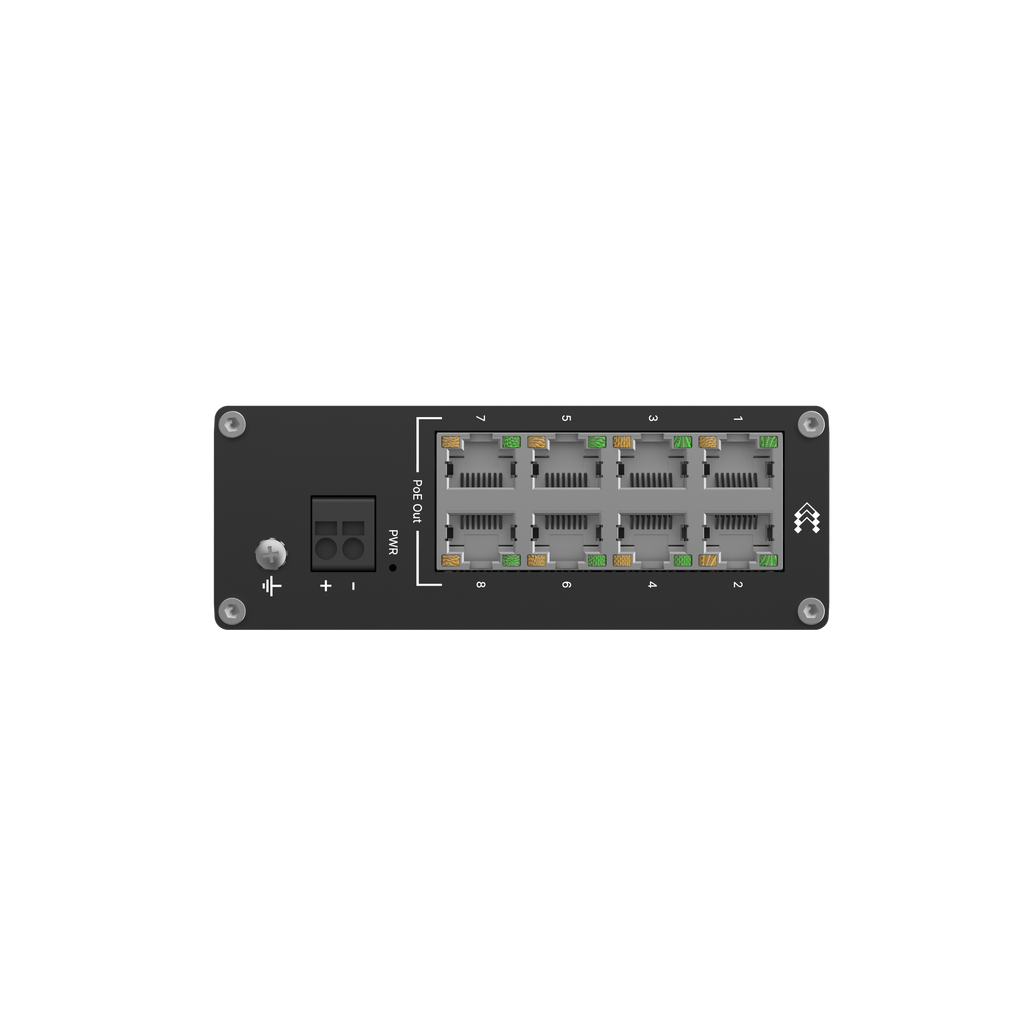

PHYSICAL INTERFACES
Ethernet
8 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 16 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Other
1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
113.1 x 41.2 x 74.6 mm

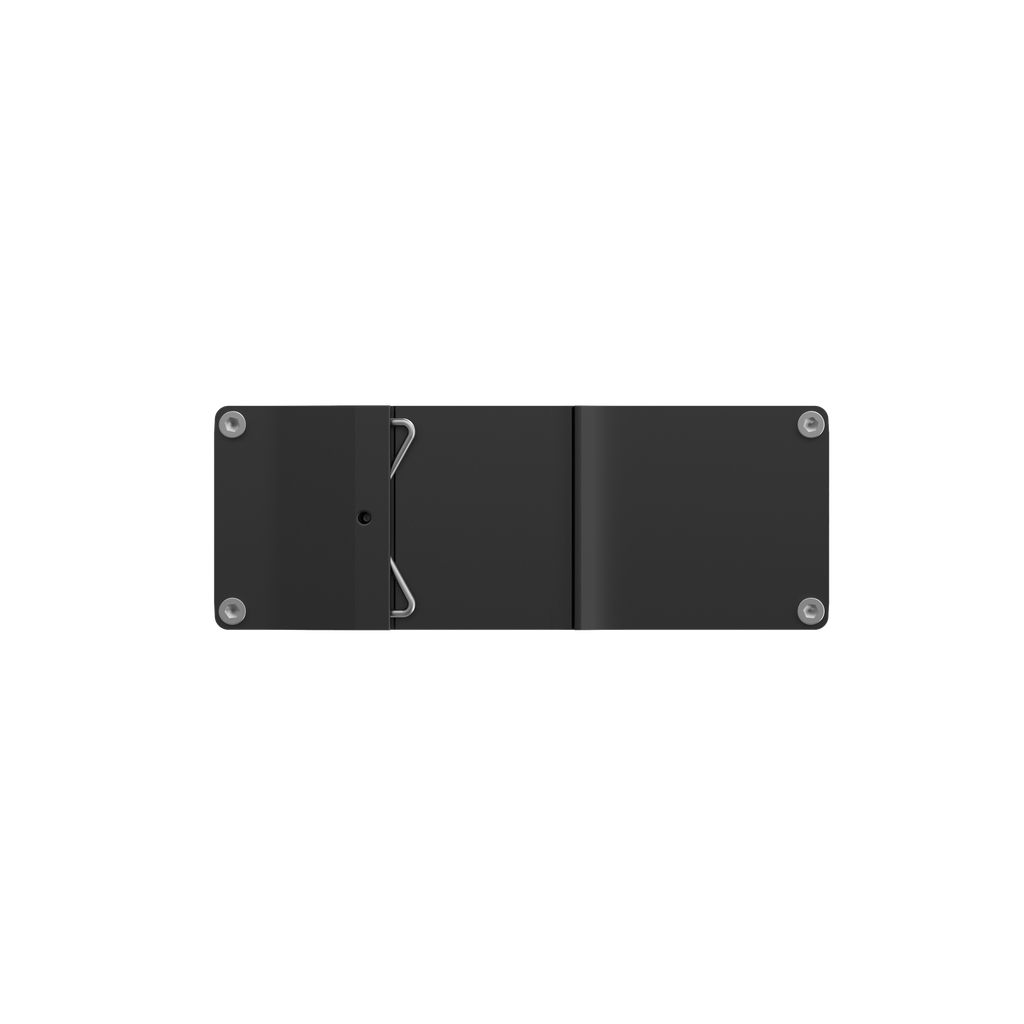

Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
Weight
280 g
OPERATING ENVIRONMENT
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
Regulatory
CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF
EMC EMISSIONS & IMMUNITY
Standards
EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
SAFETY
Standards
IEC 62368-1:2018
