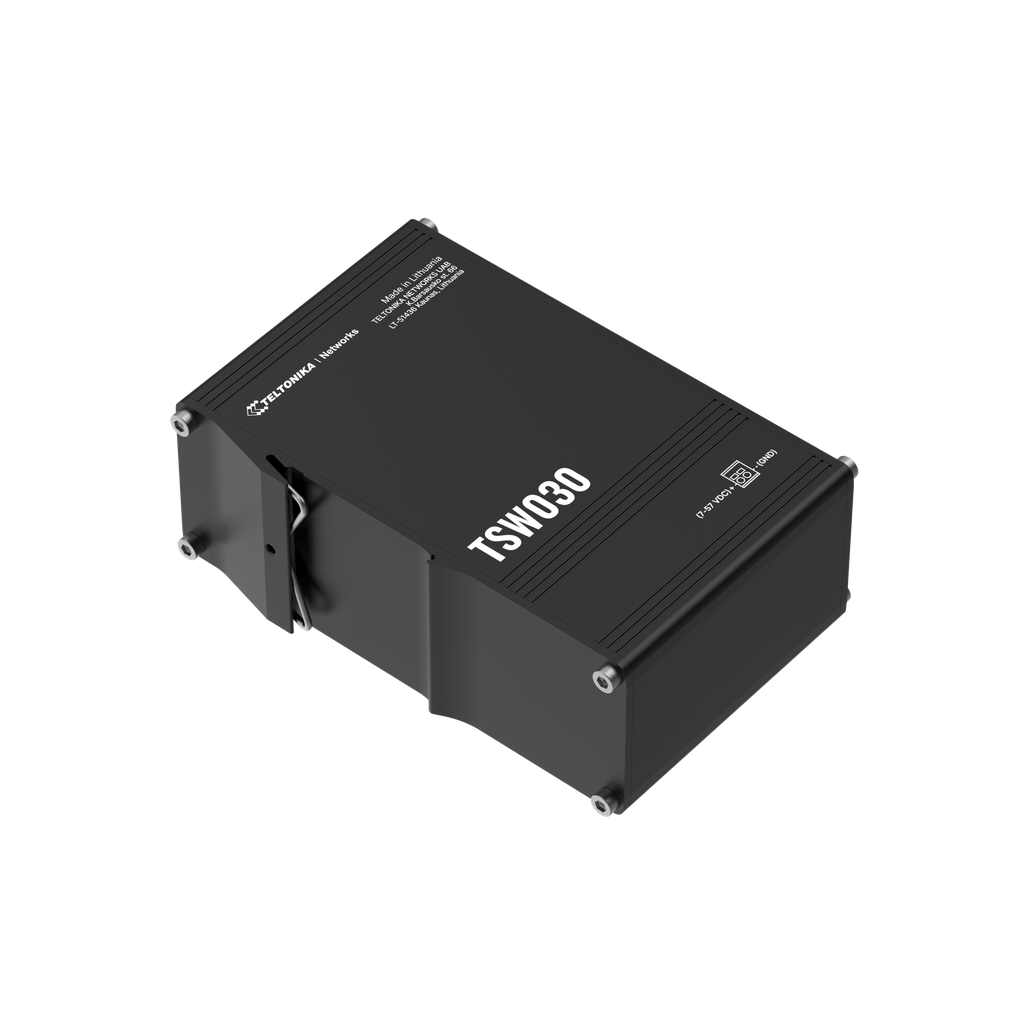

TSW030 on kuluefektiivne haldamata Ethernet-kommutaator, millel on kaheksa 10/100 RJ45 porti ja integreeritud DIN-riba paigaldus. See kompaktne ja vastupidav 8-portiline kommutaator sisaldab 2-poolset toitesisendit ja madalat energiatarbimist, mis on kuni 0,5 W tühikäigul ja maksimaalselt kuni 1,5 W. Tänu sellele sobib see plug-and-play lüliti ideaalselt tööstuslikesse rakendustesse, kus on vaja ühendada kuni kaheksa seadet.
2-POOLNE TOITESISEND
Lihtne ja tööstusrakendustesse sobiv
MADAL ENERGIATARVE
Tühikäigul kuni 0,5 W, maksimaalselt kuni 1,5 W
INTEGREERITUD DIN-RÖÖPMEL
Lihtne paigaldus plug-and-play kasutuselevõtuks
8 X RJ45 PORTS
Kaheksa 10/100 Mbit/s Ethernet-porti
ETHERNET
Ethernet
8 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards
802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
PERFORMANCE SPECIFICATIONS
Bandwidth (Non-blocking)
20 Gbps
Packer buffer
128 KB
MAC address table size
2K entries
Jumbo frame support
9216 bytes
POWER
Connector
2-pin industrial DC power socket
Input voltage range
7 – 57 VDC, overvoltage protection: 60Vmax, reverse polarity protection: 80Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current, 1- Vin, 2-PGND
Power consumption
Idle: 0.5 W / Max: 1.5 W
PHYSICAL INTERFACES
Ethernet
8 x RJ45 ports, 10/100 Mbps
Status LEDs
1 x Power LED, 16 x ETH status LEDs
Power
1 x 2-pin industrial DC power socket
Other
1 x Grounding screw
PHYSICAL SPECIFICATION
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
113.1 x 41.2 x 74.6 mm
Weight
256 g
Mounting options
Integrated DIN rail bracket, wall mount, flat surface (additional kit needed)
OPERATING ENVIRONMENT
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
REGULATORY & TYPE APPROVALS
Regulatory
CE, UKCA, EAC, UCRF, RCM, FCC, IC, CB
EMC EMISSIONS & IMMUNITY
Standards
EN 55032:2015+A11:2020; EN 55035:2017+A11:2020; EN IEC 61000-3-2:2019+A1:2021; EN 61000-3-3:2013+A1:2019+A2:2021;
ESD
EN 61000-4-2:2009
Radiated Immunity
EN IEC 61000-4-3:2020
EFT
EN 61000-4-4:2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5:2014 + A1:2017
CS
EN 61000-4-6:2014
DIP
EN IEC 61000-4-11:2020
SAFETY
Standards
IEC 62368-1:2018
