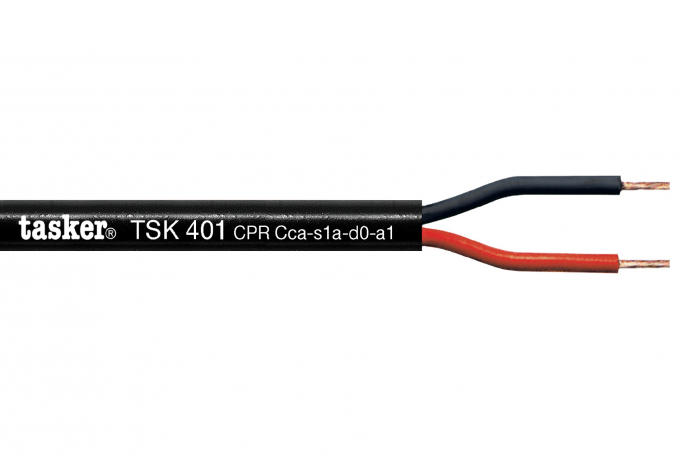

Kõlarikaabel 2x1.0mm², must, CPR CCA, S1a-d0-a1, LSZH, OFC, 100m/rull

Kõlarikaabel 2x1.0mm², must, CPR CCA, S1a-d0-a1, LSZH, OFC, 100m/rull

Kõlarikaabel 2x1,0 mm² fikseeritud paigalduseks
CPR-sertifikaadiga Cca - S1a - d0 - a1
Standardid: RoHS2 2011/65/UE – 305/2011 UE
  • Black L.S.Z.H. polymer grade M1. Flame Retardant and halogen Free. Outer cable Ø: 7,10 (±0,20) mm.
  • Core Insulation in silicon rubber grade G4, colored one Red and one Black. Twisted together and grouped with PET tape. Diam. Ø: 2,40 (±0,20) mm.
  • O.F.C. red copper formation 32x0,19 mm. Nom. Cross section 2x1,00 mm².


    Cable Properties:
  • Conductor Resistance 19,50 ?/Km
  • Max Rated Voltage 100 V
  • Operative Temperature -30/+70°C
2,30 € 2,30 € (ilma km-ta)

  • Cable cross section
  • Cable material class
  • Color
  • Conductor material
  • Cross section (AWG)
  • Halogen
  • Number of cable strands
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
UPL_f66140f4b9.pdf

Manufacturer Part Number: TSK401.0100
Tootekood: EE-100-194-070

Spetsifikatsioon

Cable cross section 1
Cable material class Cca
Color Black
Conductor material OFC
Cross section (AWG) AWG17
Halogen Yes (Halogen)
Number of cable strands 2
Weight 0.032 kg
