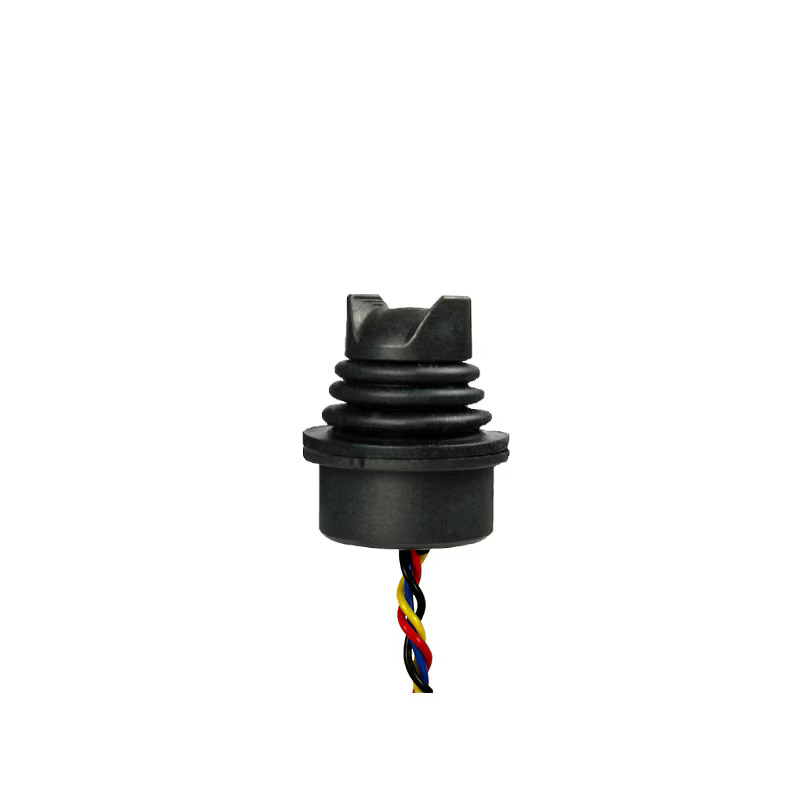

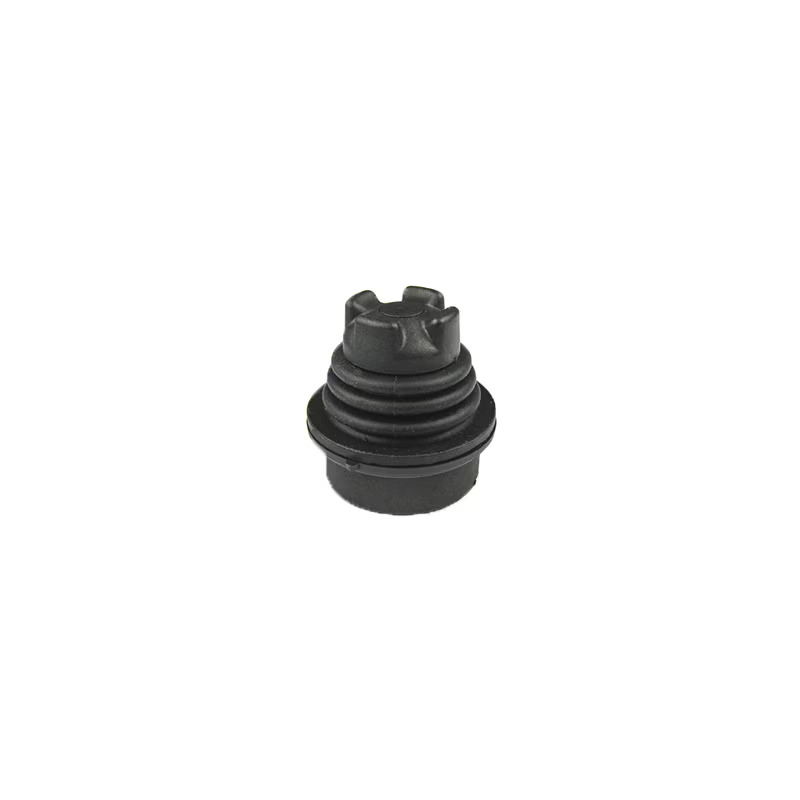

Kogege täpset ja kauakestvat juhtimist TS-seeria proportsionaalse miniatuurse pöidlajuhtimispuldiga. Kasutades kontaktivaba Halli efekti tehnoloogiat, tagab see kompaktne seade erakordse vastupidavuse ja täpsuse. Valige oma ergonoomilistele vajadustele vastav lossi-, tiibkübara- või koonusekujuline käepide. See toetab nii drop-in kui ka tagantpaigaldust paindlikuks integreerimiseks ning sisaldab taktiilse tagasisidega piirajat intuitiivseks kasutamiseks. Ühendamine on lihtne tänu 28 AWG PTFE juhtmetele (25 cm ± 1,27 cm), pakkudes usaldusväärset 0,5 V kuni 4,5 V väljundit.
DISTINCTIVE FEATURES
One or two axis

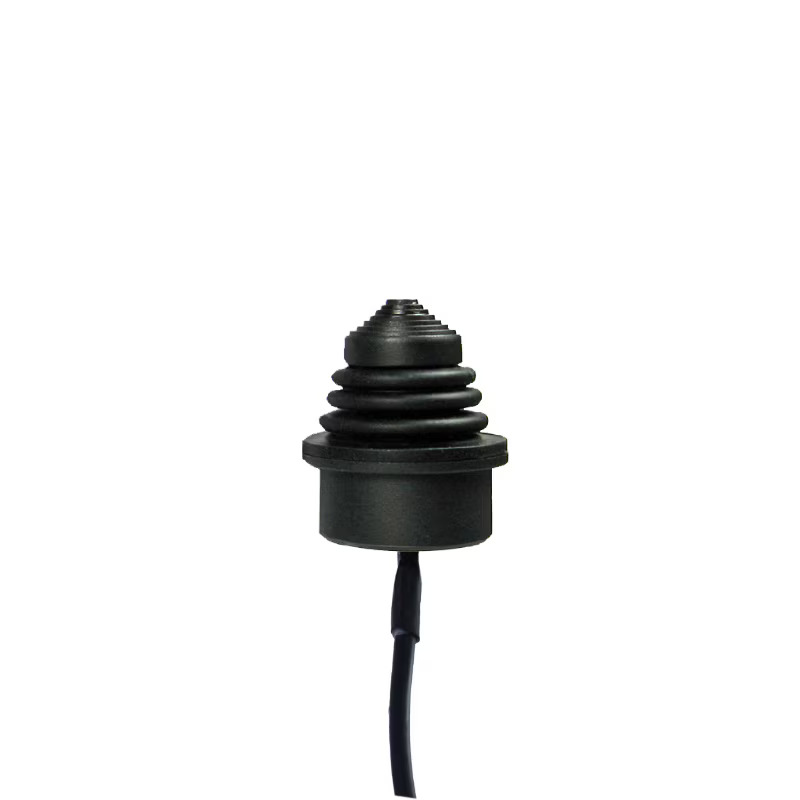

Analog, PWM or USB outputs
IP67 Above panel sealing mounting
Rear or drop-in mounting
Pushbutton option
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Storage Temperature: -40 °C to +85 °C (-40 °F to +185 °F)
Above Panel Sealing: IP67, IP69K1 (subject to mounting style & final specifications)
EMC Immunity Level: EN61000-4-3
EMC Emissions Level: EN61000-6-3:2001
ESD: EN61000-4-3 Level 2 (± 4 kv contact, ± 6 kv air)
SENSOR SPECIFICATIONS
Technology: Hall effect sensors, single or dual
Supply Voltage Range: 5.00 V ± 0.01 VDC
Supply Current: 11 mA max
Ratiometric Output Options: See options
Reverse Polarity max: -10 V
Transient overvoltage max: 16 V
Start-up time: 15 ms max
Output Impedance: 2Ω
Return to Center Voltage Tolerance: ± 200 mV initial
MECHANICAL SPECIFICATIONS
Operating Force: 3.1 N ± 0.5 N (0.70 lbf ± 0.11 lbf)2
Maximum Vertical Load: 200 N (45 lbf)2
Maximum Horizontal Load: 150 N (33.7 lbf)2
Mechanical Angle of Movement: 50° X & Y axis (subject to limiter plate)
Expected Life: 1 million cycles
Mass/Weight:
- 18.25 g ± 5.0 g (plastic housing)
- 39 g ± 6 g (metal housing)
Lever Action (centering): Spring
MATERIALS
Body: Glass filled nylon
Metal threaded Housing: Black oxide plated brass
Boot: Silicone
Handles:
- 1, 2, 3, E, F, G - Glass filled nylon
- 4, 5, 6, 7, 8 - Silicone
- B, C, D - Thermoplastic elastomer
- H - Polycarbonate
