TRM500 on kompaktne ja kerge 5G-modem ülikõrge mobiilside kiirusega kuni 3,4 Gbit/s. Sellel tööstuslikul 5G-modemil on tagurpidine ühilduvus 4G (Cat 19) ja 3G-võrkudega, neli SMA antenni parema leviala tagamiseks, DIN-redeli paigaldusvõimalused ja USB Type-C liides samaaegseks võrguandmete ja toiteallika toiteks.
5G
Ülikõrge mobiilside kiirus kuni 3,4 Gbps
TULEVIKUKINDLUS
Tagasi ühildub 4G (Cat 19) ja 3G-ga
USB TYPE-C
Samaaegseks võrguandmete edastamiseks ja toiteallikaks
COMPACT
Väike suurus, lihtne paigaldamine
Mobile
Mobile module
5G Sub-6GHz SA: 2.4Gbps (DL)/900Mbps (UL); 5G NSA Sub-6GHz: 3.4Gbps DL (4x4 MIMO)/ 550 Mbps UL (2x2); 4G (LTE-FDD) – LTE Cat 19 1.6Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release
Release 16
Power

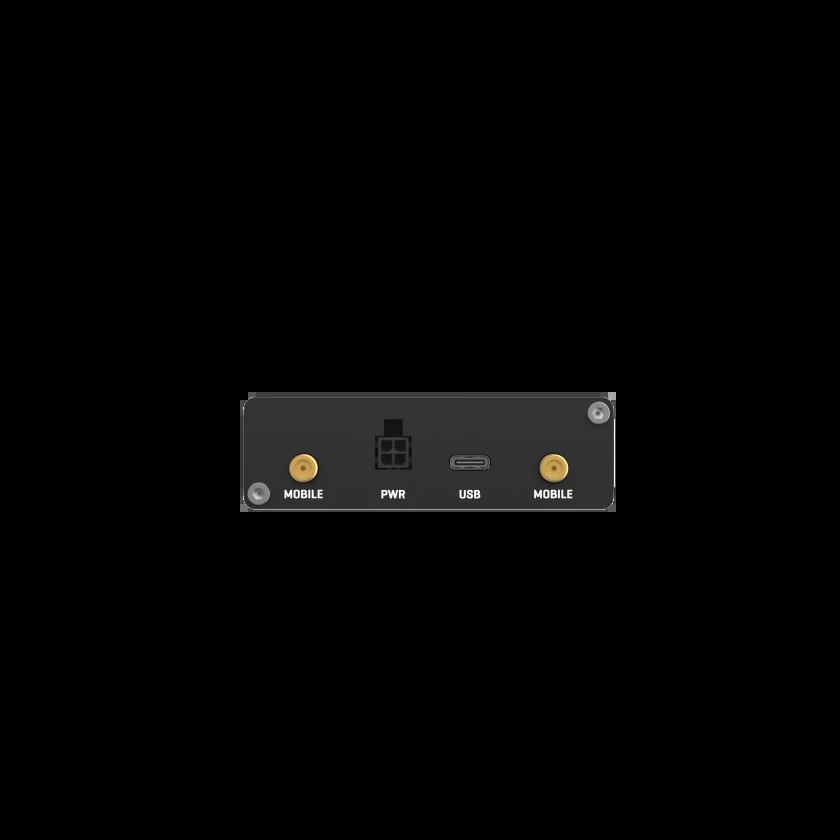

Connector
1 x 4-pin industrial DC power socket
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Input voltage range
4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >35 VDC 10us max
USB Type-C: 5 VDC
Power consumption
Idle: < 5 W, Max: < 12 W
Physical Interfaces
Status LEDs
1 x Power LED, 1 x 5G LED, 1 x Network LED
SIM
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Power
1 x 4-pin power connector
1 x USB Type-C (The USB host must provide 5V @ 3A to power the device via the USB Type-C port)
Antennas
4 x SMA for Mobile
Other
1 x Virtual network interface via USB Type-C (For power and network data)
Physical Specification
Casing material
Anodized aluminum housing and panels
Dimensions (W x H x D)
83 x 25 x 85.4 mm
Weight
94.5 g
Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
Operating temperature
-40 °C to 75 °C
Operating humidity
10% to 90% non-condensing
Ingress Protection Rating
IP30
TRM SOFTWARE
Management Software
Windows Connection Manager, Modem Manager (Linux)
USB Serial Driver
Windows 7/8/8.1/10/11,Linux 2.6~6.3,Android 4.x ~ 13
GNSS Driver
Android 4.x ~ 13
RIL Driver
Android 4.x ~ 13
NDIS Driver
Windows 7/8/8.1/10/11
MBIM Driver
Windows 8/8.1/10/11, Linux 3.18~6.3
Gobinet Driver
Linux 2.6/3.x/4.1~4.14
QMI_WWAN Driver
Linux 3.4~6.3
Regulatory & Type Approvals
Regulatory
CE, UKCA, RCM, CB, WEEE
EMC Emissions & Immunity
Standards
EN 55032:2015+A1:2020
EN 55035:2017+A11:2020
EN 61000-3-3:2013+A1:2019+A2:2021
EN IEC 61000-3-2:2019+A1:2021
EN 301 489-1 V2.2.3
EN 301 489-52 V1.2.1
AS/NZS CISPR 32:2015+A1:2020
ESD
EN 61000-4-2: 2009
Radiated Immunity
EN IEC 61000-4-3: 2020
EFT
EN 61000-4-4: 2012
Surge Immunity (AC Mains Power Port)
EN 61000-4-5: 2014+A1: 2017
CS
EN 61000-4-6: 2014
DIP
EN IEC 61000-4-11:2020
RF
Standards
EN 301 908-1 V15.2.1
EN 301 908-2 V13.1.1
EN 301 908-13 V13.2.1
EN 301 908-25 V15.1.1
AS/CA S042.1:2022
AS/CA S042.4:2022
AS/CA S042.5:2022+A1:2022
FCC Part 22
Draft EN 301 908-25 V15.1.1_0.0.21
Safety
Standards
CE: EN IEC 62368-1:2020+A11:2020, EN IEC 62311:2020
RCM: AS/NZS CISPR 32: 2015+A1:2020
CB: EN IEC 62368-1:2020+A11:2020
