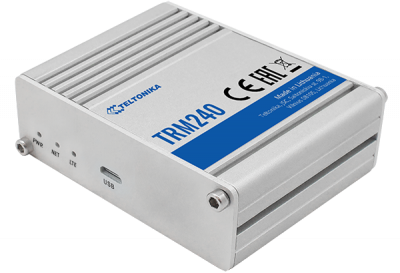

TRM240 on tööstuslik LTE Cat 1 modem, millel on vastupidav alumiiniumist korpus, USB-liides ja väline antenn parema signaali leviala tagamiseks. See toode ühildub 3G- ja 2G-tehnoloogiatega ning on kõige kuluefektiivsem võimalus olemasoleva tööstusliku ja avaliku infrastruktuuri ajakohastamiseks kaasaegse M2M-ühendusega.
LTE Cat 1 M2M/IoT side jaoks
Vastupidav alumiiniumist korpus
Seade on kättesaadav ja konfigureeritav USB kaudu
Madal energiatarve
Kompaktne suurus, lihtne integreerimine
Välisantenn parema signaali leviku tagamiseks
|
HARDWARE |
|
Mobile |
LTE (Cat1) / 3G / 2G |
|
SIM slot |
Mini SIM (2FF) |
|
Antenna connector |
1 x SMA for LTE |
|
Operating Voltage |
5V - powered via microUSB |
|
Power consumption |
3.2 W Max |
|
Configuration interface |
microUSB |
|
LED indicators |
Power, Network and LTE status LEDs |
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10 % to 90 % non-condensing |
|
Casing material |
Aluminium housing |
|
Ingress Protection Rating |
IP30 |
|
Dimensions |
74,5 x 64,5 x 25mm |
|
Weight |
131 g |
|
SOFTWARE |
|
Management software |
Windows Connection Manager (NDIS driver) |
|
USB Serial Driver |
Windows 7/8/8.1/10,
Windows CE 5.0/6.0,
Linux 2.6/3.x/4.1~4.14,
Android 4.x/5.x/6.x/7.x/8.x |
|
RIL Driver |
Android 4.x/5.x/6.x/7.x/8.x |
|
NDIS Driver |
Windows 7/8/8.1/10 |
|
Gobinet Driver |
Linux 2.6/3.x/4.1~4.14 |
|
Linux qmi wwan Driver |
3.x (3.4 and later)/4.1~4.14 |
|
Protocols |
TCP/UDP/PPP/FTP(S)/HTTP(S)/NTP/PING/QMI/SSL |
|
INTERFACES |
|
Management interface |
AT Commands (3GPP TS27.007, 3GPP TS27.005)
Hayes AT Command set
Enhanced AT Commands |
