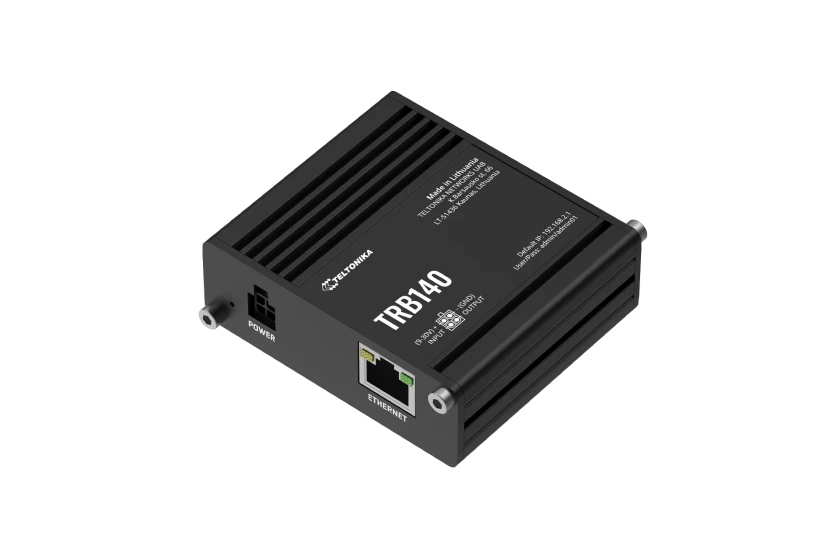

Tööstuslik LTE Cat 4 Gateway Board TRB140 on varustatud ühe Ethernet-porti, digitaalsete sisendite/väljundite ja mikro-USB-portiga. TRB140 kompaktne disain muudab selle värava ideaalselt sobivaks rakenduseks, kus ainsale seadmele tuleb tagada usaldusväärne internetiühendus. TRB140 on mõeldud kasutamiseks tööstusrakendustes, seetõttu on sellel lai valik tarkvarafunktsioone, nagu SMS-juhtimine, tulemüür, avatud VPN, IPsec, RMS ja FOTA tugi.
väike ja kiiresti kasutatav tööstuslik Ethernet 4G LTE IoT-värav. Täiustatud VPN-funktsioonid, turvalisus ja kaugjuhtimisvõimalused teevad TRB140-st parima valiku ühe seadme ühendamiseks.
ethernet-interfaceEdit link
Ethernet-liides
lte-cat-4
LTE Cat 4 kiirusega kuni 150 Mbit/s
väike
Kompaktne suurus, lihtne integreerimine
9-30v
Lai valik toiteallikate pingeid
rms
Teltonika kaugjuhtimissüsteemiga ühilduv
rutos
RutOS - lihtne kasutada, turvaline ja funktsionaalselt rikkalik operatsioonisüsteem
|
MOBILE |
|
Mobile module |
4G (LTE) – Cat 4 up to 150 Mbps, 3G – Up to 42 Mbps, 2G – Up to 236.8 kbps |
|
Status |
Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received |
|
SMS/Call |
SMS status, SMS configuration, Call utilities |
|
ETHERNET |
|
LAN |
1 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX |
|
NETWORK |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SSL v3, TLS, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
|
Connection monitoring |
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection, Wget |
|
Firewall |
Port forwards, traffic rules, custom rules |
|
DHCP |
Static and dynamic IP allocation |
|
DDNS |
Supported >25 service providers, others can be configured manually |
|
SECURITY |
|
Authentication |
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall |
Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
|
Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN |
|
OpenVPN |
Multiple clients and a server can run simultaneously, 12 encryption methods |
|
OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec |
IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE |
GRE tunnel |
|
PPTP, L2TP |
Client/Server services can run simultaneously |
|
MONITORING & MANAGEMENT |
|
WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, system log, kernel log |
|
FOTA |
Firmware update from sever, automatic notification |
|
SSH |
SSH (v1, v2) |
|
SMS |
SMS status, SMS configuration |
|
MQTT |
MQTT Broker, MQTT publisher |
|
JSON-RPC |
Management API over HTTP/HTTPS |
|
Modbus |
Modbus TCP status/control |
|
RMS |
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS |
|
CPU |
ARM Cortex-A7 1.2 GHz CPU |
|
RAM |
128 MB (50 MB available for userspace) |
|
FLASH memory |
512 MB (70 MB available for userspace) |
|
FIRMWARE / CONFIGURATION |
|
WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup, restore point |
|
FOTA |
Update FW/configuration from server |
|
RMS |
Update FW/configuration for multiple devices |
|
Keep settings |
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION |
|
Operating system |
RutOS (OpenLinux based Linux OS) |
|
Supported languages |
Busybox shell, Lua, C, C++ |
|
Development tools |
SDK package with build environment provided |
|
INPUT/OUTPUT |
|
I/O |
2 x Configurable Digital Inputs/Outputs |
|
Events |
SMS status |
|
POWER |
|
Connector |
4 pin industrial DC power socket |
|
Input voltage range |
9 – 30 VDC (4 pin industrial socket), reverse polarity protection, surge protection >33 VDC 10μ max |
|
Power consumption |
< 5 W |
|
PHYSICAL INTERFACES (PORTS, LEDS, ANNTENAS, BUTTONS, SIM) |
|
Ethernet |
1 x RJ45 port, 10/100/1000 Mbps |
|
I/Os |
2 x Configurable Digital Inputs/Outputs on 4 pin power connector |
|
USB |
Virtual network interface via USB |
|
Status LEDs |
3 x connection type status LEDs, 5 x connection strength LEDs, 2 x LAN status LEDs, 1x Power LED |
|
SIM |
1 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
|
Power |
4 pin DC connector with 2 x configurable Digital Inputs/Outputs |
|
Anntenas |
1 x SMA for LTE |
|
Reset |
Restore factory settings button |
|
PHYSICAL SPECIFICATIONS |
|
Casing material |
Aluminum housing |
|
Dimensions |
60 mm x 70 mm x 18 mm (H x W x D) |
|
Weight |
130 g |
|
Mounting options |
Bottom and sideways DIN rail, Flat surface and direct PCB on DIN-Rail mounting options |
|
OPERATING ENVIRONMENT |
|
Operating temperature |
-40 °C to 75 °C |
|
Operating humidity |
10 % to 90 % non-condensing |
|
Ingress Protection Rating |
IP30 |
|
REGULATORY & TYPE APPROVALS |
|
Regulatory |
CE/RED, EAC, RoHS, WEEE |
|
EMI |
|
Standards |
Draft ETSI EN 301 489-1 V2.2.0, Draft ETSI EN 301 489-19 V2.1.0, Draft ETSI EN 301 489-52 V1.1.0 |
|
ESD |
EN 61000-4-2:2009 |
|
RS |
EN 61000-4-3:2006 + A1:2008 + A2:2010 |
|
EFT |
EN 61000-4-4:2012 |
|
Surge protection |
EN 61000-4-5:2014 |
|
CS |
EN 61000-4-6:2014 |
|
DIP |
EN 61000-4-11:2004 |
|
RF |
|
Standards |
EN 300 511 V12.5.1, ETSI EN 301 908-1 V11.1.1, ETSI EN 301 908-1 V11.1.2, EN 301 908-2 V11.1.2, ETSI EN 301 908-13 V11.1.2 |
|
SAFETY |
|
Standards |
IEC 62368-1:2014(Second Edition), EN 62368-1:2014+A11:2017
EN 50385:2017
EN 62232:2017 |
