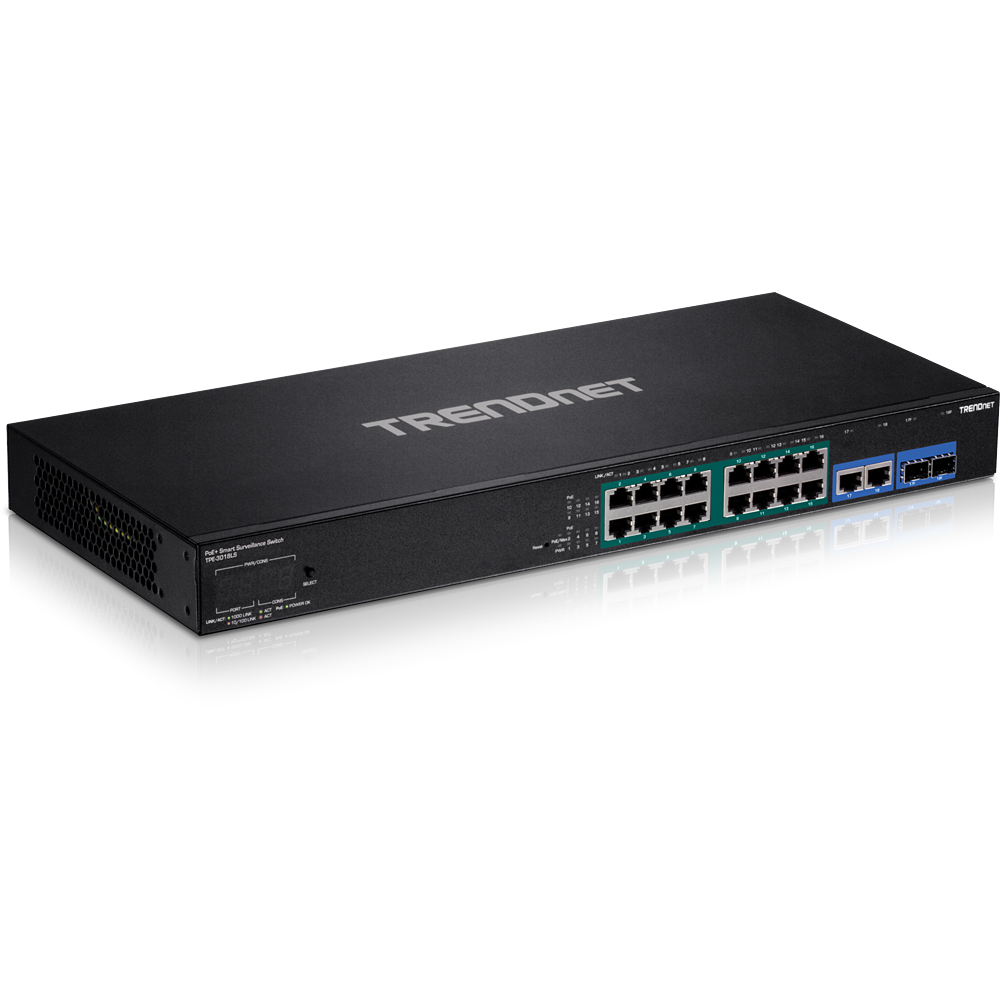

16 x Gigabit PoE+ porti
2 x jagatud Gigabit-porti (RJ-45 või SFP)
220W PoE võimsuse eelarve
Lihtne veebipõhine haldusliides
Toetab IPv6, LACP, VLAN, QoS ja IGMP Snoopingi
Laiendab PoE+ signaali kuni 656 jalga/200 m 10Mbps juures
Esipaneeli 4-kohaline LED-ekraan annab PoE-võimsuse statistikat
Järelevalverežiimi graafiline kasutajaliides lihtsustatud konfigureerimiseks ja võrgu jälgimiseks
Seadmeotsing ONVIF-konformsete IP-kaamerate ja NVRide jaoks
Hoone põrandaplaanide üleslaadimine järelevalveseadmete E-kaardi loomiseks
IP-kaamera IP-aadressi seadete muutmine
IP-kaamera püsivara uuendamine
IP-kaamera administraatori kasutajanime ja parooli muutmine
Sagedusala juhtimine pordi kohta
802.1Q-, MAC-, järelevalve- ja hääle VLANi tugi.
IEEE 802.1p QoS koos järjekorra ajastamise toetusega
Nutikas ventilaator
36 Gbps lülitusvõimsus
NDAA / TAA nõuetele vastav (ainult USA ja Kanada)
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
Device Interface
16 x Gigabit PoE+ ports
2 x Shared Gigabit ports (RJ-45 or SFP (100/1000Mbps))
LED indicators
PoE power status LED display (total power budget, available power, consumption per port)
Data Transfer Rate
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
Gigabit Ethernet: 2000Mbps (full duplex)
Performance
Switch fabric: 36Gbps
RAM buffer: 512KB
MAC address table: 8K entries
Jumbo Frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 26.7Mpps (64-byte packet size)
Management
HTTP / HTTPS web-based GUI – Standard or Surveillance Mode
CLI command line interface (Telnet / SSHv2)
SNMP v1, v2c, v3
IPv4/IPv6 support
Multiple administrator or user accounts
Dynamic/static unicast MAC address table
Enable or disable 802.3az power saving per port
Syslog
System message logging severity levels
Port mirroring (transmit, receive, one-to-one, many-to-one)
ICMPv4/ICMPv6
Traceroute
LLDP
Cable diagnostics test
SFP DDM (Digital-diagnostic-monitoring)
UDLD (UniDirectional Link Detection)
Port error disabled/Errdisable state
Ping watchdog
MIB
RMON MIB RFC 1271
IPV4 MIB RFC 1213 (read only)
SNMP MIB RFC 3415
Spanning Tree
STP (spanning tree)
RSTP (rapid spanning tree)
MSTP (multiple spanning tree)
Link Aggregation
Static link aggregation and dynamic LACP (Up to 8 groups)
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth limit per port
Queue Scheduling: strict priority (SP), weighted round robin (WRR)
VLAN
Multiple management VLAN assignment
802.1Q Tagged VLAN
MAC-based VLAN
Surveillance VLAN
Voice VLAN
Up to 256 VLAN groups, ID Range 1-4094
Multicast
IGMP Snooping v2/v3
IGMP immediate/fast leave
IGMP querier
Dynamic/static multicast MAC address table
MVR (Multicast VLAN registration)
Up to 1K multicast entries
Access Control
802.1X port-based authentication (Local user database, RADIUS, Guest VLAN)
DHCP Snooping / Option 82
Loopback detection
Denial of Service (DoS) prevention
Storm control (broadcast, unknown multicast, unknown unicast, min: 16Kbps)
Head-of-line (HoL) blocking prevention
IP Source Guard / IP-MAC-Port-VLAN binding
Protected ports
Port Security/MAC address learning restriction
Access Control List (ACL)
MAC Address (VLAN ID, EtherType, 802.1p)
IPv4 (IP Protocol, TCP/UDP Port, 802.1p, DSCP, TCP flag, ICMP type, ICMP code)
Surveillance Mode (ONVIF)
Surveillance mode GUI for simplified configuration and network monitoring
Device discovery for ONVIF compliant devices such as IP cameras or NVRs
Upload virtual maps
Change IP camera IP address settings
Upgrade IP camera firmware
Change IP camera administrator user name and password
PoE
PoE budget: 220W
802.3at: up to 30W per port (ports 1-16)
PoE Mode A: Pins 1,2 and pins 3,6 for power
PoE power scheduling
PD alive check
Over current/short circuit protection
Power
Input: 100 – 240V AC, 50 – 60Hz, internal power supply
Max. consumption: 14W (No PoE load)
Surge Protection
6kV (Ports 17 & 18)
Fan/Acoustics
Quantity: 1 (Hot swappable)
Noise Level: 60.1 dBA (max.)
MTBF
331,516 hours
Operating Temperature
0 – 40°C (32 – 104°F)
Operating Humidity
Max. 90% non-condensing
Dimensions
440 x 195 x 44.45mm (17.3 x 9.8 x 1.74 in.)
Rack mountable 1U height
Weight
2.93kg (6.45 lbs.)
Certifications
CE
FCC
ETL
Warranty
Lifetime Warranty*
