Standards | -
IEEE 802.1d
-
IEEE 802.1p
-
IEEE 802.1Q
-
IEEE 802.1s
-
IEEE 802.1w
-
IEEE 802.1X
-
IEEE 802.1ab
-
IEEE 802.3
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
IEEE 802.3ab
-
IEEE 802.3ad
-
IEEE 802.3af
-
IEEE 802.3at
-
IEEE 802.3az
|
|

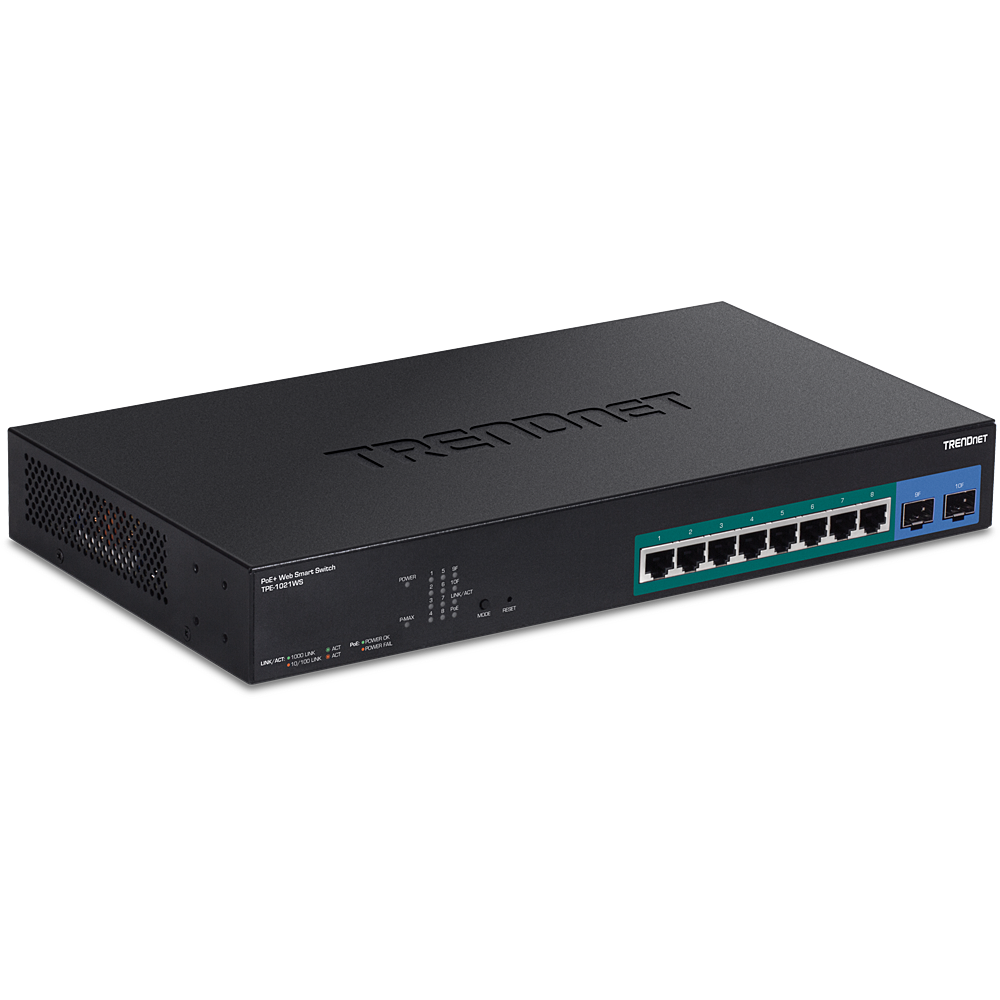

Device Interface | -
8 x Gigabit PoE+ ports
-
2 x SFP Slots
-
LED indicators
-
LED Display mode button (toggles LED indicators to display link/activity or PoE only port status)
|
|
Data Transfer Rate | -
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
-
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
-
Gigabit Ethernet: 2000Mbps (full duplex)
-
SFP: 2000Mbps (full duplex)
|
|
Performance | -
Switch fabric: 20Gbps
-
RAM buffer: 4.1MB
-
MAC Address Table: 8K entries
-
Jumbo Frames: 10KB
-
HOL Blocking Prevention
-
Forwarding rate: 14.9Mpps (64-byte packet size)
|
|
Management | -
CLI (Telnet / SSHv2) for basic administration
-
HTTP/HTTPS (SSL v2/3 TLS) Web based GUI
-
SNMP v1, v2c, v3
-
RMON v1
-
Static Unicast MAC Address
-
Enable/disable 802.3az Power Saving
-
LLDP and LLDP-MED
-
Virtual Cable Diagnostics Test
-
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
-
Dual image and configuration
-
TC Root/Protect
|
|
MIB | -
IP Forward Table MIB RFC 1354
-
RMON MIB RFC 1271
-
IPv4 MIB RFC 1213
-
IPv6 MIB RFC 2465
-
GVRP MIB IEEE 802.1Q-VLAN
-
LA MIB IEEE 802.3ad
-
LLDP MIB IEEE 802.1ab
-
IGMP Snooping MIB RFC 2933
-
MLD Snooping MIB RFC 3019
-
Private VLAN MIB IEEE 802.1Q
-
DHCP SNOOP MIB RFC 2026
-
QoS MIB RFC 4323
-
SNMP MIB RFC 3415
-
STP MIB RFC 4318
-
PNAC MIB IEEE 802.1x
-
VLAN MIB IEEE 802.1q
-
DNS MIB RFC 1611
-
ACL MIB
-
Bandwidth CTRL MIB
-
LBD MIB
-
Mirror MIB
-
IPv6 NEIGHBOR MIB
-
SNTP MIB
-
Storm CTRL MIB
-
Statistics MIB
-
Tool MIB
-
Voice VLAN MIB
-
DoS MIB
|
|
Spanning Tree | -
IEEE 802.1d STP (Spanning Tree protocol)
-
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
-
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
|
|
Link Aggregation | -
Static Link Aggregation
-
802.3ad Dynamic LACP
|
|
Quality of Service (QoS) | -
802.1p Class of Service (CoS)
-
DSCP (Differentiated Services Code Point)
-
Bandwidth Control per port
-
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
|
|
VLAN | -
Multiple management VLAN assignment
-
Asymmetric VLAN
-
802.1Q Tagged VLAN
-
Dynamic GVRP
-
MAC-based VLAN
-
Protocol-based VLAN
-
Up to 256 VLAN groups, ID Range 1-4094
-
Private VLAN (Protected Ports)
-
Voice VLAN (10 user defined OUIs)
|
|
Multicast | -
IGMP Snooping v1, v2, v3 (per VLAN)
-
MLD Snooping v1, v2
-
IGMP fast leave
-
MVR (Multicast VLAN Registration)
-
Static Multicast Address
-
Up to 256 multicast entries
|
|
Port Mirror | -
RX, TX, or Both
-
Many to one
|
|
Access Control | -
802.1X Port-Based Network Access Control, RADIUS, TACACS+
-
Local Dial-In User Authentication
-
DHCP Snooping
-
Loopback Detection
-
Duplicated Address Detection
-
Trusted Host
-
Denial of Service (DoS)
-
IP MAC port binding
-
Dynamic ARP inspection
-
Block unknown multicast
|
|
ACL IPv4 L2-L4 & IPv6 | -
MAC Address
-
VLAN ID
-
Ether Type (IPv4 only)
-
IP Protocol 0-255
-
TCP/UDP Port 1-65535
-
802.1p
-
DSCP (IPv4 only)
-
IPv6 Address (IPv6 only)
|
|
Layer 3 Features | -
IPv4 / IPv6 static routing
-
IP interfaces: Up to 6
-
Routing table entries: Up to 32 (IPv4 / IPv6)
-
ARP table (up to 128 entries)
-
Inter-VLAN routing
|
|
Compatibility | -
Optional Software Utility: Windows® 10, 8.1, 8, 7, Vista, XP, Windows® 2003/2008 Server
|
|
Power | -
Input: 100 – 240V AC, 50/60Hz, internal power supply
-
Max. consumption: 152.3W
-
Max consumption (No PoE Load):
|
|
PoE | -
Power Budget: 130W
-
802.3at: Up to 30W per port
-
PoE Mode A: Pins 1, 2, 3, and 6 for power
-
PoE auto/manual classification
-
PoE port priority/power scheduling
|
|
Fan/Acoustics | |
|
MTBF | |
|
Operating Temperature | -
-5° – 50° C (23° – 122° F)
|
|
