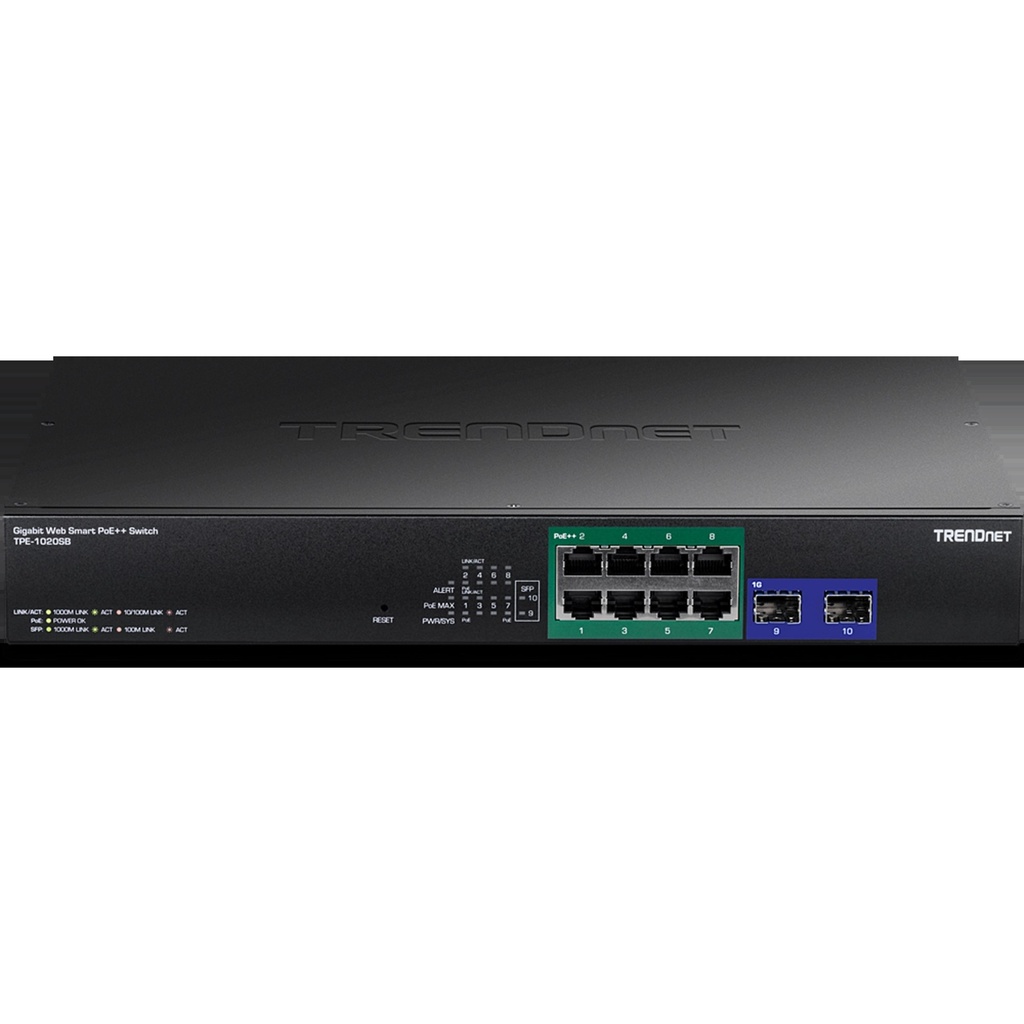

- 8 x Gigabit 95W PoE++ porti
- 2 x Gigabit SFP-pesa
- 180W PoE võimsuse eelarve
- Lihtne veebipõhine haldusliides
- PoE alive check üritab automaatselt taastada reageerimata PoE-seadet
- Toetab IPv6, LACP, VLAN, QoS ja IGMP Snoopingi
- Sageduspiirangu kontroll pordi kohta
- Era-, multisaate- ja hääle VLANi tugi
- 1U 19“ rack-paigaldatav
- 20 Gbps lülitusvõimsus
- IEEE 802.3bt PoE++ standardile vastavus
- NDAA / TAA nõuetele vastav (ainult USA ja Kanada)
Standards
IEEE 802.1d
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
IEEE 802.3z
IEEE 802.3ab
IEEE 802.3ad
IEEE 802.3af
IEEE 802.3at
IEEE 802.3az
IEEE 802.3bt
Device Interface
8 x Gigabit 95W PoE++ ports
2 x SFP ports
LED indicators
Reset button
Data Transfer Rate
Gigabit Ethernet: 2000Mbps (full duplex)
SFP: 2000Mbps (full duplex)
Performance
Switch fabric: 20Gbps
RAM buffer: 512KB
MAC Address Table: 8K entries
Jumbo Frames: 9KB
HOL Blocking Prevention
Forwarding rate: 14.88Mpps (64-byte packet size)
Management
CLI (Telnet / SSHv2) for basic administration
HTTP/HTTPS (SSL v2/3 TLS version 1.2) Web based GUI
SNMP v1, v2c, v3
RMON v1
Static Unicast MAC Address
Enable/disable 802.3az Power Saving
LLDP and LLDP-MED
Virtual Cable Diagnostics Test
IPv6: IPv6 Neighbor Discovery, IPv6 Static IP, DHCPv6, Auto configuration
Dual image and configuration
MIB
RMON MIB RFC 1271
LLDP MIB IEEE 802.1ab
RFC 1213 MIB II
RFC 1493 bridge MIB
Spanning Tree
IEEE 802.1d STP (Spanning Tree protocol)
IEEE 802.1w RSTP (Rapid Spanning Tree protocol)
IEEE 802.1s MSTP (Multiple Spanning Tree protocol)
Link Aggregation
Static Link Aggregation
802.3ad Dynamic LACP
Quality of Service (QoS)
802.1p Class of Service (CoS)
DSCP (Differentiated Services Code Point)
Bandwidth Control per port
Queue Scheduling: Strict Priority, Weighted Round Robin (WRR)
VLAN
802.1Q Tagged VLAN
Dynamic GVRP
Up to 256 VLAN groups, ID Range 1-4094
Private VLAN (Protected Ports)
Voice VLAN (10 user defined OUIs)
Multicast
IGMP Snooping v1, v2, v3
MLD Snooping v1, v2
IGMP fast leave
Up to 256 multicast entries
Port Mirror
RX, TX, or Both
Many to one
Access Control
802.1X Port-Based Network Access Control, RADIUS, TACACS+
Local Dial-In User Authentication
DHCP Snooping
Loopback Detection
Trusted Host
Denial of Service (DoS)
IP MAC port binding
Block unknown multicast
ACL IPv4 L2-L4 & IPv6
MAC Address
VLAN ID
Ether Type (IPv4 only)
TCP/UDP Port 1-65535
802.1p
DSCP (IPv4 only)
TOS (IPv4 only)
IPv4 Address and Mask (IPv4 only)
IPv6 Address and Prefix Length (IPv6 only)
Layer 3 Features
IPv4 / IPv6 static routing
IP interfaces: Up to 15
Routing table entries: Up to 32 (IPv4 / IPv6)
ARP table (up to 128 entries)
Inter-VLAN routing
Power
Input: 100 – 240V AC, 50/60Hz, internal power supply
Max. consumption: 5.8W (without PD) / 185.8W (with PD)
PoE
Power Budget: 180W
802.3bt: up to 95W
PoE++: pin 1, 2, 4, 5 + and pin 3, 6, 7, 8 -
PoE manual classification
Fan/Acoustics
Quantity: 1
Smart Fan
Noise Level: 55dB(A) (max.)
MTBF
243,000 @ 25° C
Operating Temperature
0° – 40° C (32° – 104° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
330 x 230 x 44mm (12.80 x 9.06 x 1.74 in.)
Rack mountable 1U height
Weight
2.38kg (5.25 lbs.)
Certifications
CE
FCC
LVD
ETL
