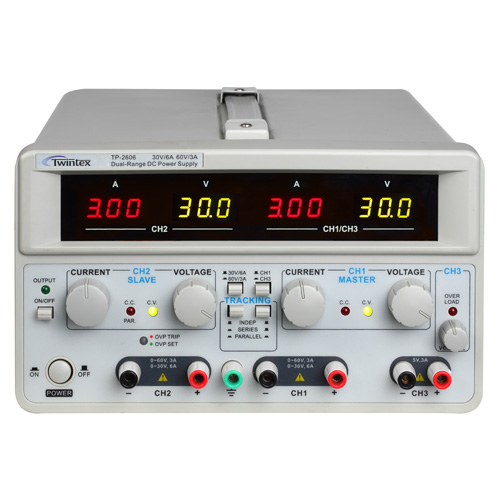

Labori impulsstoiteplokk 3 kanaliga 0-30V/6A, 0-60V/3A, 0.1-5V/3A

Model	TP-2606
Output	CH1&CH2Independent mode: 0~30V/0~6A; 0~60V/0~3A CH1&CH2Series mode: 0~60V/0~6A; 0~120V/0~3A CH1&CH2Parallel mode: 0~30V/0~12A; 0~60V/0~6A CH3: 0.1~5V/3A
Constant voltage operation
Line regulation	≤0.01%+3mV
Load regulation	≤0.01%+5mV (rating current≤6A); ≤0.01%+8mV (rating current≤12A)
Riple & Noise	≤5mVrms (5Hz~1MHz); ≤50mVpp (20Hz~20MHz)
Constant current operation
Line regulation	≤0.2%+3mA
Load regulation	≤0.2%+3mA
Riple & Noise	≤3mArms
Tracking operation
Tracking error	≤(0.5%+10mV) of the master
Series regulation	≤300mV
Riple & Noise	≤10mVrms (5Hz~1MHz); ≤100mVpp (20Hz~20MHz)
Remote output On/Off response time
Voltage up(10%~90%)	≤100ms (≤95% rated load)
Voltage down(90%~10%)	≤100ms (≥10% rated load)
CH3 output
Output voltage	0.1~5V, adjustable
Output current	3A
Protection	Over voltage, over load, over temperature and reverse polarity protections
Over voltage protection
Accuracy	±(0.5% reading+0.5V)
Display
Voltmeter	3^1/2 digits0.39" LED display
Ammeter	3^1/2 digits0.39" LED display
Resolution	100mV/10mA
Accuracy	±(0.5% reading+2 digits)
Protection	Over voltage and reverse polarity protections
Remote control	Output On/Off
Fan noise	≤50dB
Temperature co-efficient	Voltage: ≤100ppm/?+3mV
Temperature co-efficient	Current: ≤150ppm/?+3mA

484,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: TP-2606
Tootekood: EE-100-189-695

Spetsifikatsioon

Weight

5.5 kg
