Standards | -
ITU-T G.8013/Y.1731
-
IEEE 802.1ag
-
IEEE 802.3ah
-
IEEE 802.1d
-
IEEE 802.1p
-
IEEE 802.1Q
-
IEEE 802.1s
-
IEEE 802.1w
-
IEEE 802.1X
-
IEEE 802.1ab
-
IEEE 802.1ad
-
IEEE 802.3
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3az (RJ-45 ports only)
-
IEEE 802.3ab
-
IEEE 802.1ax
-
IEEE 802.3z
|
|

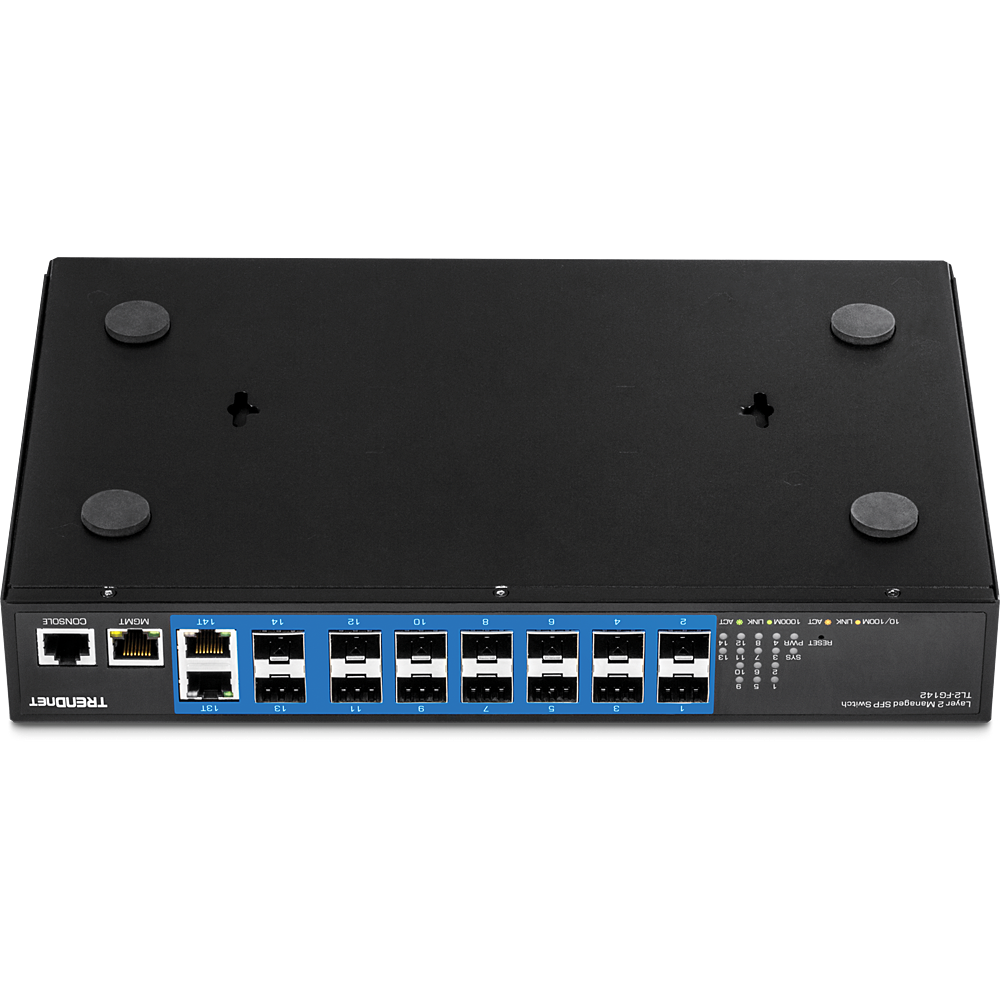

Device Interface | -
12 x SFP slots (100/1000Mbps)
-
2 x Shared Gigabit ports (RJ-45 or SFP slots)
-
1 x RJ-45 management port (in-band)
-
1 x RJ-45 console port (out-of-band)
-
Ground point
-
LED indicators
-
Reset button
|
|
Data Transfer Rate | -
Ethernet: 10Mbps (half duplex), 20Mbps (full duplex)
-
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
-
Gigabit Ethernet: 2000Mbps (full duplex)
|
|
Performance | -
Switching capacity: 28Gbps
-
RAM buffer: 128MB
-
MAC address table: 8K entries
-
Jumbo frames: 9.6KB (configurable per port)
-
Forwarding mode: store and forward
-
Forwarding rate: 20.8Mpps (64-byte packet size)
|
|
Management | -
CLI (Console / Telnet / SSHv2)
-
HTTP / HTTPS web based GUI
-
SNMP v1, v2c, v3
-
SNMP trap
-
RMON groups 1/2/3/9
-
LLDP/LLDP-MED with optional TLVs
-
ICMPv4/ICMPv6
-
IPv4/IPv6
-
IPv6 neighbor discovery
-
DNS proxy
-
Network time protocol (NTP)
-
Green Ethernet/EEE or 802.3az per port
-
Dual image
|
|
Monitoring | -
CPU load
-
IP interfaces/routing table
-
Internal system logging
-
External syslog
-
Port traffic statistics
-
QoS queue counters
-
QCL control list
-
Port mirror (One to one, many to one)
-
EVC (Ethernet Virtual Connection) statistics
-
MAC address table
-
Digital diagnostics monitoring (DDM) for SFP modules
-
RFC2544 support
-
SFlow statistics
|
|
MIB | -
MIB II RFC 1213
-
Bridge MIB IEEE8021-Q
-
RMON (Group 1,2,3,9) RFC 2819
-
Interface group MIB using SMIv2 RFC 2863
-
Multicast group membership discovery MIB RFC 5519
-
SNMP management frameworks RFC 3411
-
User-based security model for SNMPv3 RFC 3414
-
View-based access control model for SNMP RFC 3415
-
Ethernet-like MIB RFC 3635
-
802.3 MAU MIB RFC 3636
-
Entity MIB v3 RFC 4133
-
Bridge MIB RFC 4188
-
IP MIB RFC 4293
-
RADIUS authentication client MIB RFC 4668
-
RADIUS accounting MIB RFC 4670
-
LLDP-MIB IEEE802.1AB
-
PAE MIB IEEE802.1X
|
|
Spanning Tree | -
Spanning tree protocol (STP)
-
Rapid spanning tree protocol (RSTP)
-
Multiple spanning tree protocol (MSTP)
|
|
Link Aggregation | -
Static link aggregation and 802.3ad dynamic LACP (Up to 15 groups)
|
|
Quality of Service (QoS) | -
Class of service (CoS)
-
Set default drop precedence (DPL), priority code point (PCP), drop eligible indicator (DEI)
-
Differentiated Services Code Point (DSCP) classification and translation
-
Set egress port scheduler, port shaping, port tag marking
-
Bandwidth control per port/rate limiting
-
Queue scheduling: strict priority (SP), deficit weighted round robin (DWRR)
|
|
Storm Control | -
Broadcast (Min. limit: 1pps)
-
Multicast (Min. limit: 1pps)
-
Unicast (Min. limit: 1pps)
|
|
VLAN | -
802.1Q tagged VLAN
-
802.1ad VLAN Q-in-Q
-
Group VLAN Registration Protocol (GVRP)
-
MAC-based VLAN
-
Protocol-based VLAN
-
VLAN ID range 1-4095
-
Private VLAN/port isolation
-
Voice VLAN (16 user defined OUIs)
-
VLAN port to group and VID translation
|
|
Carrier Ethernet / OAM | -
IEEE 802.1ag Connectivity Fault Management (CFM)
-
IEEE 802.3ah Link OAM
-
Per port per queue dual leaky bucket service policers with PCP or DSCP marking per service point
-
Statistics and tagging options per service point
-
Y.1731 Fault Management (AIS, RDI, LCK)
-
Y.1731 Performance Management (LM, DM)
-
RFC2544 support
-
Link OAM statistics, port status, event status
-
Link state tracking
-
Link OAM MIB Retrieval
-
Maintenance entity point (MEP)
|
|
Link Protection | -
ITU-T G.8032/Y.1344 Ethernet ring protection switching (ERPS)
-
ITU-T G.8031/Y.1342 Ethernet linear protection switching
|
|
L3 Features | -
IPv4 / IPv6 static routing
-
IPv4 interfaces: Up to 8
-
IPv6 interfaces: Up to 8
-
Routing table entries: Up to 32 (IPv4 / IPv6)
-
ARP table (up to 1024 entries)
-
DHCP IPv4 server, relay, option 82
-
Inter-VLAN routing
|
|
Multicast | -
IGMP snooping v1, v2, v3
-
IGMP fast leave
-
Static multicast entries
-
MLD Snooping v1, v2
-
Multicast VLAN Registration (MVR)
-
Up to 1K multicast groups
|
|
Access Control | -
User account control with privilege level management
-
Access management control
-
Port Security/MAC address learning restriction (Up to 64 entries per port)
-
802.1X port-based/single/multiple or MAC-based authentication
-
RADIUS (Up to 5 servers)
-
TACACS+ (Up to 5 servers)
-
RADIUS assigned QoS/VLAN/Guest VLAN
-
Local dial in user authentication
-
DHCP IPv4 snooping
-
Loopback detection/prevention
-
IP Source Guard
-
Static/dynamic ARP inspection
-
Create ACLs based on rate limit/EVC profile
|
|
Power | -
Input: 100 – 240V AC, 50/60 Hz
-
Max. Consumption: 36W
|
|
Fan/Acoustics | |
|
MTBF | |
|
Operating Temperature | -
0° – 50° C (32° – 122° F)
|
|
Operating Humidity | |
|
Dimensions | -
280 x 185 x 44.45mm (11.02 x 7.28 x 1.75 in.)
-
Rack mountable 1U height
-
Wall mountable
|
|
Weight | |
|
Certifications | |
|
Warranty | |
