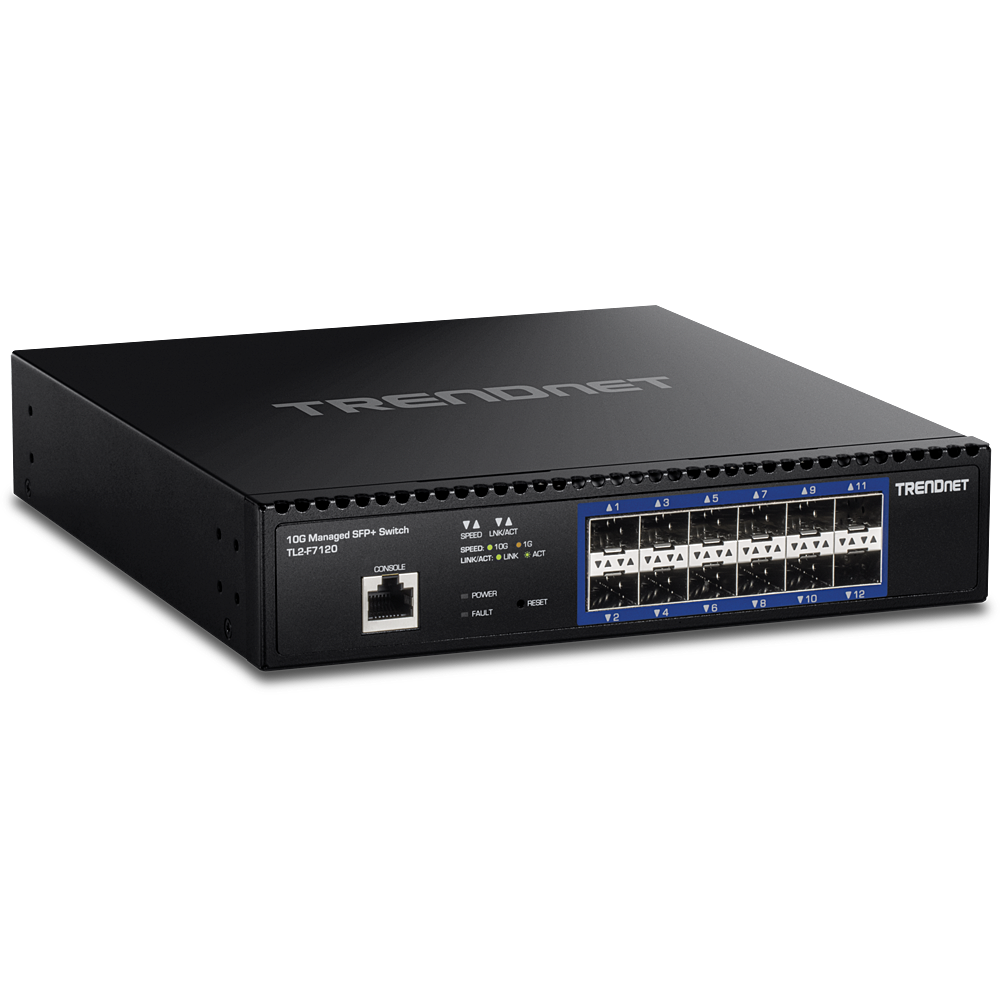

12 x 10G SFP+ pesa
Toetab 1Gbps / 10Gbps ühenduskiirusi
Veebipõhine juhtimine
CLI-haldus
Toetab IPv6, LACP, VLAN ja IGMP Snoopingi
802.1Q märgistatud VLANi, GVRP ja Voice VLANi tugi
QoS koos järjekordade ajastamise toetusega
Toetab VLANidevahelist marsruutimist ja IPv4/IPv6 staatilist marsruutimist.
240 Gbps kommutatsioonivõimsus
Toetab 10GBASE-X / 1000BASE-FX SFP kiudmooduleid
Nutikas ventilaator
Säästab rack ruumi, paigaldades 2 x TL2-F7120 1U ruumi, kasutades lisavarustusena saadavat ETH-F71 topeltkinnitust (müüakse eraldi).
NDAA / TAA nõuetele vastav (ainult USA ja Kanada)
Standards
IEEE 802.1p
IEEE 802.1Q
IEEE 802.1s
IEEE 802.1w
IEEE 802.1X
IEEE 802.1ab
IEEE 802.1ax
IEEE 802.3ab
IEEE 802.3ae
IEEE 802.3az
IEEE 802.3x
IEEE 802.3z

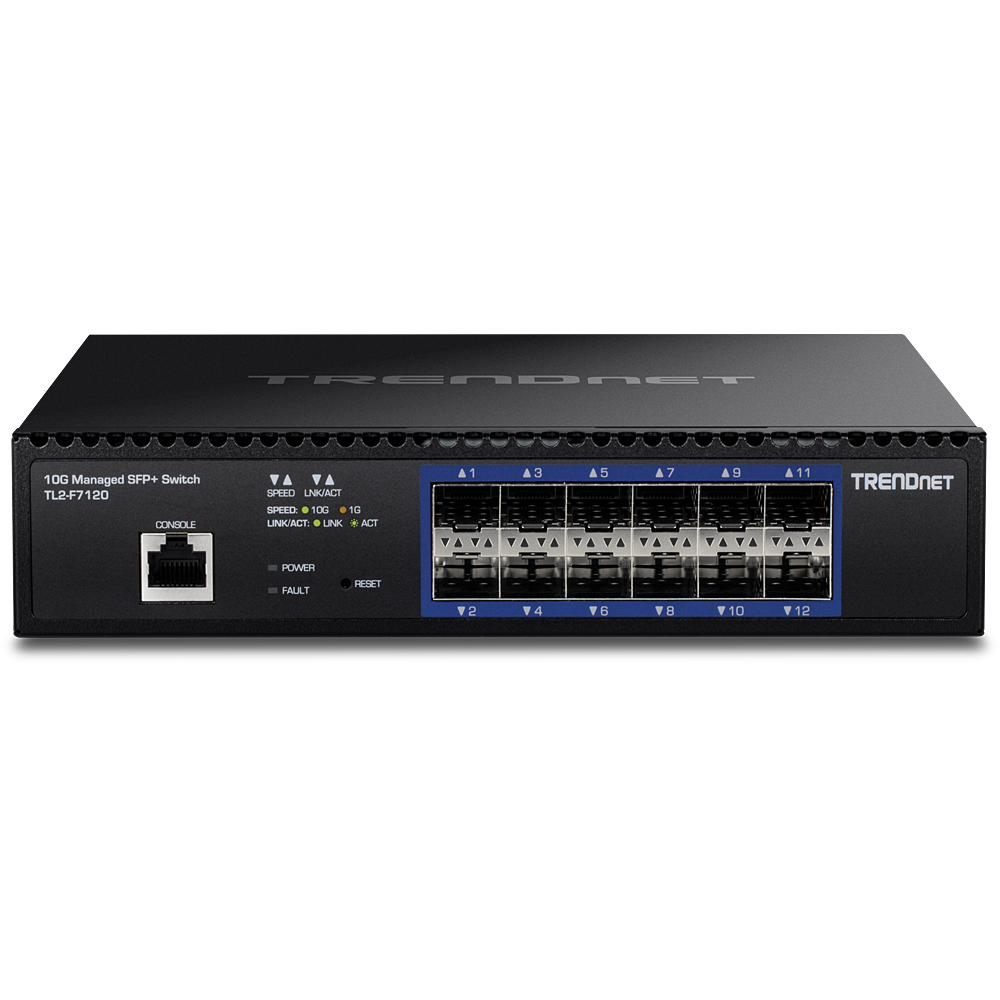

Device Interface
12 x SFP+ slots (1Gbps / 10Gbps)
1 x RJ-45 console port (out-of-band)
LED indicators
Reset button
Data Transfer Rate
Gigabit Ethernet: 2000Mbps (full duplex)
10 Gigabit Ethernet: 20Gbps (full duplex)
Performance
Switching capacity: 240Gbps
RAM buffer: 2MB
MAC address table: 32K entries
Jumbo frames: 10KB
Forwarding mode: store and forward
Forwarding rate: 178.6Mpps (64-byte packet size)
Management
CLI (Console / Telnet / SSH)
GUI (HTTP / HTTPS)
IPv4/IPv6
DNS
TFTP/HTTP firmware upgrade
TFTP/HTTP backup and restore configuration
SNMP v1, v2c, v3
SNMP trap
RMON groups 1/2/3/9
LLDP
ICMPv4/ICMPv6
Trace Route IPv4/IPv6
Virtual cable diagnostics test
Simple Network time protocol (SNTP)
Multi-User (Admin/User privilege)
Dual image (Active/Backup)
SNTP/NTP
System Log (Local/Download/Remote Syslog)
MAC entries (Static/Dynamic)
ARP entries (Static/Dynamic)
IPv6 neighbor discovery entries (Static/Dynamic)
Port mirror (One to one, many to one)
Digital diagnostics monitoring (DDM) for SFP modules
Storm control: Broadcast, unknown multicast, unknown unicast (Min. limit: 16kbps)
Port statistics counter
Loopback detection
CPU/Memory Utilization
Real-time port statistics
MIB
RMON MIB RFC 1757
MIB II RFC 1213
Ethernet intf MIB RFC 1643
Bridge MIB RFC 1493
Spanning Tree
Rapid spanning tree protocol (RSTP)
Multiple spanning tree protocol (MSTP) Up to 16 instances
Link Aggregation
Static link aggregation
Dynamic LACP (Up to 8 groups, 8 ports per group)
Quality of Service (QoS)
Class of service (CoS)
Differentiated Services Code Point (DSCP)
Bandwidth control per port/rate limiting
Queue scheduling: strict priority (SP), weighted round robin (WRR)
Storm Control
Broadcast (Min. limit: 16Kbps)
Unknown Multicast (Min. limit: 16Kbps)
Unknown Unicast (Min. limit: 16Kbps)
VLAN
Management access VLAN assignment
802.1Q tagged VLAN
Dynamic GVRP
Port Isolation
Up to 256 VLAN groups, ID range 1-4094
Voice VLAN
Dynamic VLAN
L3 Features
IPv4 / IPv6 static routing
IPv4 interfaces: Up to 4
IPv6 interfaces: Up to 8
Routing table entries: IPv4: 63 max. / IPv6: 21 max.
Default route entries: 1 (IPv4 / IPv6)
ARP table (up to 192 entries)
DHCP IPv4 relay
Inter-VLAN routing
Multicast
IGMP snooping v1, v2, v3
MLD Snooping v1, v2
IGMP/MLD fast leave and querier
IGMP/MLD dynamic router port, and report suppression
Multicast filtering
Up to 256 multicast groups
Access Control
802.1X authentication (Local, RADIUS IPv4, TACACS+ IPv4)
802.1X RADIUS/Guest VLAN assignment, MAC-based authentication
DHCP snooping
Port Security/MAC address learning restriction (Up to 256 entries per port)
Denial of Service (DoS)
Power
Input: 100 – 240V AC, 50/60 Hz, 1.5A
Max. Consumption: 20W
Fan/Acoustics
Quantity: 1
Smart Fan
Noise Level: 38.6 dBa (max.)
MTBF
224,641 hours
Operating Temperature
0° – 50° C (32° – 122° F)
Operating Humidity
Max. 90% non-condensing
Dimensions
210 x 230 x 44mm (8.26 x 9.06 x 1.73 in.)
Rack mountable 1U height

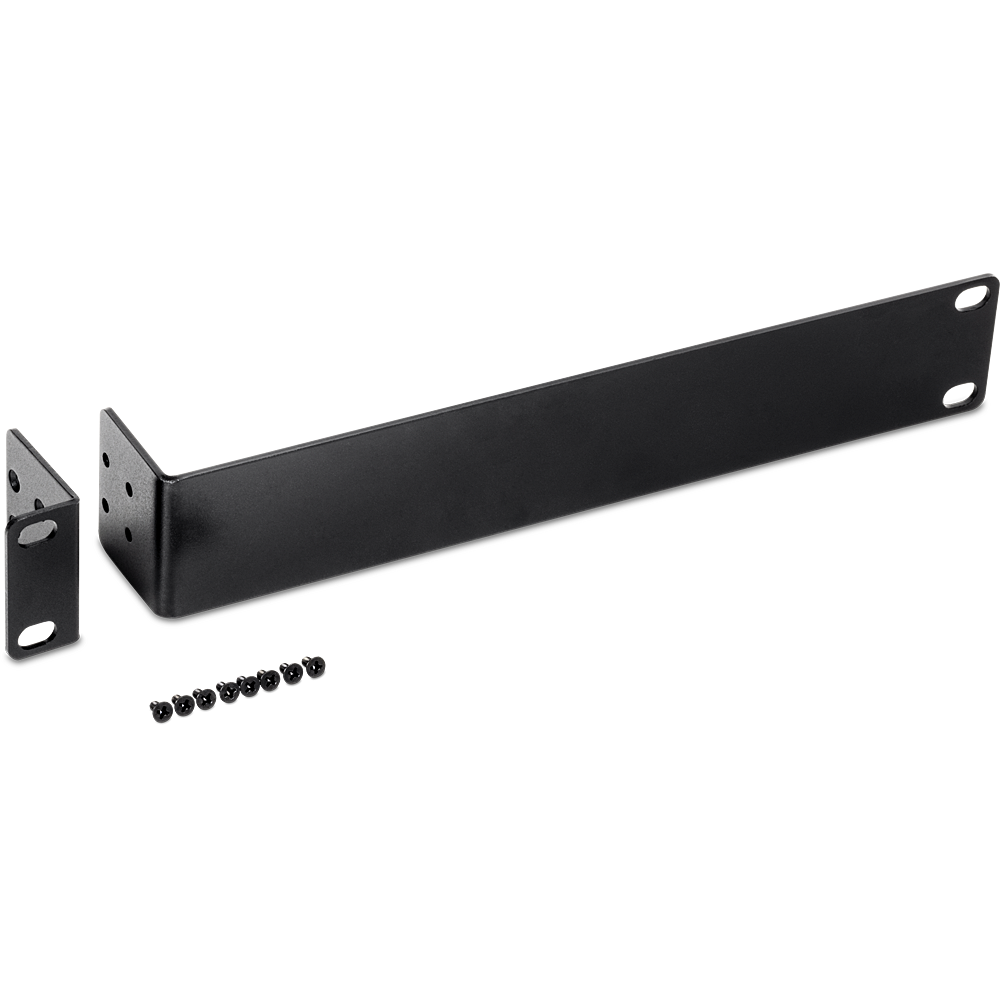

Dual 1U rackmount kit option (ETH-F71 sold separately)
Weight
1.6 kg (3.5 lbs.)
Certifications
CE
FCC
UL
