240 W ühe väljundiga tööstuslik DIN-riba toiteallikas
TI-S24048 (versioon v1.0R)
IP30 klassifikatsiooniga tööstuslik toiteallikas, millel on integreeritud DIN-riba kinnitus
Annab kuni 240 W võimsust (48 V, 5 A)
Sisseehitatud aktiivne PFC (PF > 0,93)
Kaitse lühise/ülekoormuse/ülepinge/üle temperatuuri eest
Kõrge kasuteguriga (94%) konstruktsioon
UL 508 heakskiidetud
100 % täiskoormuse läbipõlemiskatse
Äärmuslik töötemperatuurivahemik -25 kuni 70 °C (-13 kuni 158 °F)

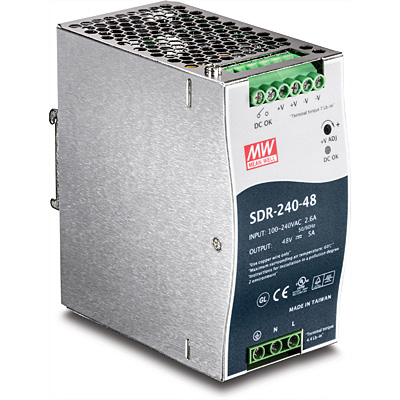

TRENDnet’s high efficiency 240 W Single Output Industrial DIN-Rail Power Supply, model TI-S24048 (Mean Well SDR-240-48), supplies up to 240 Watts (48 V, 5 A) of power to industrial PoE equipment such as switches, network cameras, and WiFi access points. This IP30 rated power supply comes with active PFC, an integrated DIN-rail mount, and overload current protection.
 | 240 Watt Power
Provides up to 240 Watts (48 V, 5 A) of power for PoE devices such as switches, network cameras, and access points |
 | Active PFC
The built-in active Power Factor Controller (PFC, PF > 0.93) helps eliminate unusable reactive power |
 | Overload Protection
Overload/short circuit/over voltage/over temperature protection |
 | Full Load Test
This power supply undergoes a 100 % full load burn-in test |
 | Passive Cooling
Cooling by free air convection |
 | DIN-Rail Mount
IP30 rated metal enclosure with integrated DIN-rail mount |
 | Extreme Temperatures
Rated for an operating temperature range of -25 to 70 °C (-13 to 158 °F) |
 | Safety Certifications
Certified for UL 508 and TUV EN60950-1 |
 | Electro Magnetic Emission/Immunity
Compliance to EN55011, EN55022 (CISPR22), EN61204-3 Class B, EN61000-3-2/3, EN61000-4-2, 3, 4, 5, 6, 8, 11, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A, SEMI F47, and GL approved |
 | Vibration Resistant
Rated for vibration (IEC 60068-2-6) |
 | LED Indicator
LED indicator confirms power to the unit |
