4 x Gigabit PoE+ porti
1 x Gigabit-port
120W PoE võimsuse eelarve
10Gbps kommutatsioonivõimsus
Toetab kuni 9KB suuruseid jumbokaadreid
Karastatud IP30 klassifikatsiooniga metallist korpus
Sisaldab DIN-riba kronsteinit ja magnetilist seinakinnituskomplekti
Töötemperatuuri vahemik -40° - 75° C (-40° - 167° F)
Redundantsed toitesisendid koos ülekoormusvoolukaitsega
Häirerelee, mis käivitub voolukatkestuse korral
Toiteplokk müüakse eraldi (mudelid: TI-S12048, TI-S24048 ja 48VDC3000).

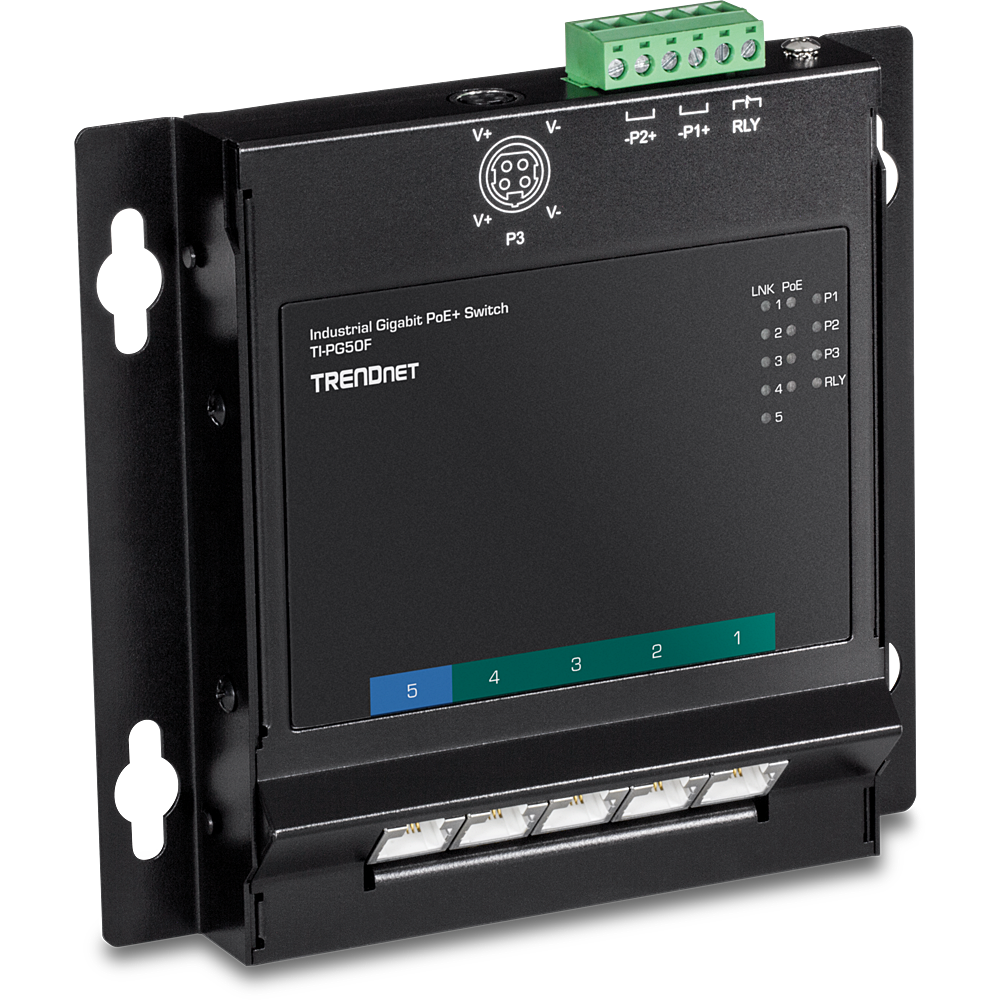

TRENDnet's Industrial Gigabit PoE+ Wall-Mounted Front Access Switch Series are well suited for IP surveillance, IoT, and automation networks for homes and businesses. These hardened industrial gigabit flat switches provide front access to ports and power interfaces for easier installation. The flat and compact size make them ideal for cabinet installations where space is limited. Each hardened industrial front access switch features gigabit PoE+ ports for connecting devices such as wireless access points, IP cameras, and IoT appliances. These hardened front access switches come equipped with an IP30 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Wall-Mounted Front Access Switch
The wall mountable flat switch provides front access to ports and power interfaces for easier installation. It's flat and compact size make it ideal for cabinet installations where space is limited.
PoE+ Power
A 120W PoE power budget supplies PoE power from the hardened industrial front access switch to up to five Power over Ethernet devices.
Hardened Industrial Design
Equipped with an IP30 rated metal enclosure, this front access switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments.
Network Ports
4 x Gigabit PoE+ ports and 1 x Gigabit port
PoE Power
Supplies up to 30W of PoE+ power per port with a 120W power budget
Hardware Design
Wall mountable hardware design provides front access to ports and power interfaces for easier installation
Compact
The flat and compact size makes the front access switch ideal for cabinet installations where space is limited
Mounting Hardware
Includes DIN-Rail bracket and magnetic wall mount kit
Switching Capacity
10Gbps switching capacity
Redundant Power
Dual power inputs provide redundant power with overload current protection, and an output alarm relay to indicate input power failure. (power supply sold separately: TI-S12048, TI-S24048, and 48VDC3000)
Alarm Relay
Alarm relay output triggered by power failure of primary or secondary power inputs
Jumbo Frames
Sends larger packets, or jumbo frames (up to 9KB), for increased performance
Wide Temperature Range
Hardened industrial housing offers a wide operating temperature range of -40° – 75° C (-40° – 167° F), allowing for installations in extreme hot and cold environments
Shock and Vibration Resistant
Hardened design rated for shock (EN 60068-2-27), freefall (EN 60068-2-32), and vibration (EN 60068-2-6) for industrial settings
Grounding Point
Grounding point protects equipment from external electrical surges
LED Indicators
Front access switch with LED indicators that convey power and port status
