Standards | -
IEEE 802.1d
-
IEEE 802.1p
-
IEEE 802.1Q
-
IEEE 802.1w
-
IEEE 802.1X
-
IEEE 802.1ab
-
IEEE 802.1ax
-
IEEE 802.3u
-
IEEE 802.3x
-
IEEE 802.3z
-
IEEE 802.3ab
-
IEEE 802.3ad
-
IEEE 802.3az
-
IEEE 802.3af
-
IEEE 802.3at
|
|

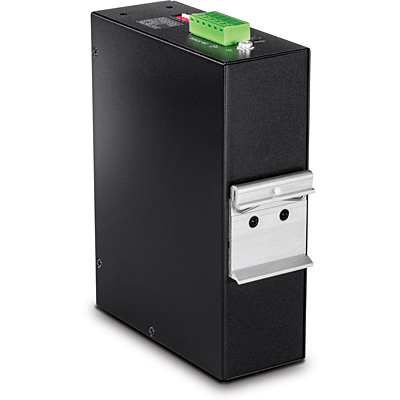

Device Interface | -
8 x Gigabit PoE+ ports
-
2 x 100/1000Mbps SFP slots
-
6-pin removable terminal block (primary/RPS power inputs & alarm relay output)
-
DIP switches
-
LED indicators
-
Reset button
|
|
Data Transfer Rate | -
Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
-
Fast Ethernet: 100Mbps (half duplex), 200Mbps (full duplex)
-
Gigabit Ethernet: 2000Mbps (full duplex)
|
|
Performance | -
Switch fabric: 20Gbps
-
RAM buffer: 128MB
-
MAC address table: 8K entries
-
Jumbo frames: 10KB
-
Forwarding mode: store and forward
-
Forwarding rate: 14.88Mpps (64-byte packet size)
|
|
Management | -
HTTP web-based GUI
-
CLI: Telnet / SSHv2
-
SNMP v1, v2c, v3
-
SNMP trap (up to 5 receivers)
-
RMON groups 1/2/3/9
-
Device configuration backup & restore, upgrade firmware, reboot, and reset to default
-
Multiple administrative or read-only user accounts
-
Enable or disable power saving mode per port
-
Static MAC entries
-
LLDP (Link layer discovery protocol)
-
Netlite device map
-
ONVIF device discovery
-
SNTP
-
SMTP alert
-
Syslog
-
Port statistics/utilization
-
Traffic monitor
-
Port mirror: one to one, many to one
-
Storm control: Broadcast, multicast, destination lookup failure (Min. limit: 1pps)
-
Loopback detection
-
DHCP relay/option 82
-
Modbus/TCP
-
SFP DDMI (Digital Diagnostic Monitoring Interface)
-
ERPS (Ethernet Ring Protection Switching) G8032v2
|
|
MIB | -
MIB II RFC 1213
-
Bridge MIB RFC 1493
-
RMON (Group 1,2,3,9) RFC 2819 RFC 1757
|
|
Spanning Tree | -
IEEE 802.1d STP (spanning tree protocol)
-
IEEE 802.1w RSTP (rapid spanning tree protocol)
-
BPDU filter, guard, and root guard
|
|
Link Aggregation | -
Static link aggregation and 802.3ad dynamic LACP (Up to 3 groups)
|
|
Quality of Service (QoS) | -
802.1p Class of service (CoS)
-
DSCP (Differentiated Services Code Point)
-
Bandwidth control per port
-
Queue Scheduling: strict priority (SP), weighted round robin (WRR), weighted fair queuing (WFQ)
|
|
VLAN | -
802.1Q tagged VLAN
-
MAC-based VLAN
-
Port isolation
-
Up to 256 VLAN groups, ID range 1-4094
|
|
Multicast | -
IGMP snooping v1, v2, v3
-
IGMP querier
-
IGMP fast leave
-
Up to 256 multicast groups
-
Static multicast entries
|
|
Access Control | -
802.1X authentication (Local user database, RADIUS, guest VLAN assignment)
-
DHCP snooping/screening
-
Trusted host/IP access list for management access
-
Port Security/MAC address learning restriction (Up to 100 entries per port)
-
Static/dynamic ARP inspection
|
|
ACL | -
Source/Destination MAC address
-
Source/Destination IP address
-
Source Interface
-
VLAN ID
-
EtherType
-
TCP/UDP port 1-65535
|
|
Special Features | -
Netlite device discovery and map display in GUI
-
Port security: MAC address learning restriction per port
-
DHCP relay/option 82 & DHCP server snooping/screening support
-
Wide operating temperature range
-
Redundant power inputs
-
Alarm relay triggered by power failure
-
Surge and ESD protection
|
|
Power | -
PWR (Primary) terminal input: 24 – 57V DC
-
RPS (Redundant) terminal input: 24 – 57V DC
-
Compatible power supply: TI-S12024 (120W), TI-S24048 (240W), TI-S48048 (480W) sold separately
-
Max. Consumption: 13W (no PoE load), 253W (full PoE load)
|
|
PoE | -
PoE budget: 240W@48V DC input, 124W@24V DC input
-
802.3at: Up to 30W per port
-
PoE Mode A: Pins 1, 2, 3, and 6 for power
-
PoE auto classification
-
PoE port priority/power scheduling/PD alive check
-
Over current/short circuit protection
|
|
Terminal Block | -
Redundant power inputs, alarm relay contact, 6 pin
-
Wire range: 0.5 mm^2 to 2.5 mm^2
-
Solid wire (AWG): 12-26
-
Stranded wire (AWG): 12-26
-
Wire strip length: 10-11mm
|
|
Dip Switch | |
Switch |
Status |
Function | |
1 |
OFF |
Disable alarm relay for PWR power input | |
ON |
Enable alarm relay for power failure on PWR power input | |
2 |
OFF |
Disable alarm relay for RPS power input | |
ON |
Enable alarm relay for power failure on RPS power input | |
|
