- 5 x 10/100Mbps porti
- Kaitsekindel IP30 klassifikatsiooniga metallist minilüliti
- Äärmuslik töötemperatuurivahemik -40° - 75° C (-40° - 167° F)
- 1 Gbps lülitusvõimsus

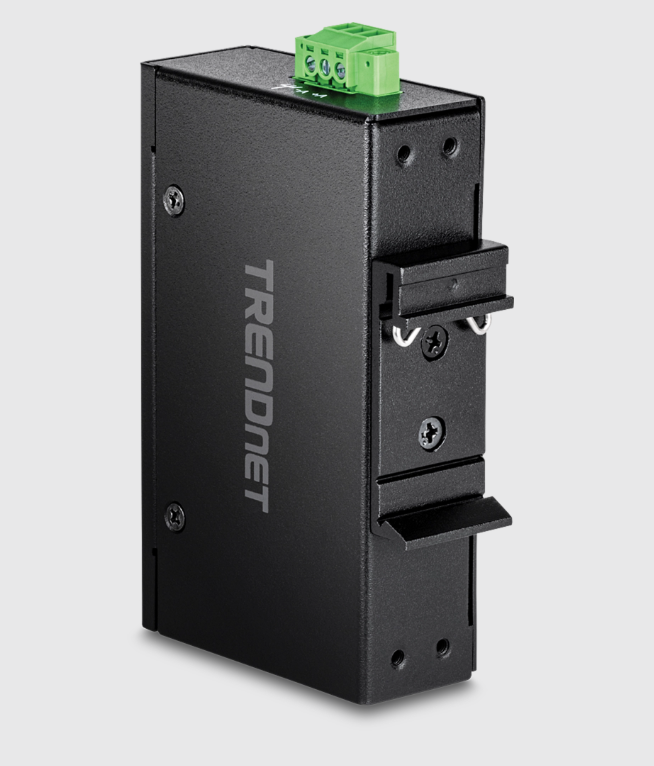

- Sisaldab DIN-riba kinnitust ja seinakinnitusklambreid
- Toiteplokk müüakse eraldi (mudel: TI-M6024)
- NDAA / TAA nõuetele vastav
Standards
IEEE 802.3
IEEE 802.3u
IEEE 802.3x
Device Interface
5 x 10/100Mbps ports
3-pin removable terminal block
LED indicators
Data Transfer Rate
Ethernet: 10Mbps (half-duplex), 20Mbps (full-duplex)
Fast Ethernet: 100Mbps (half-duplex), 200Mbps (full-duplex)
Performance
Data RAM Buffer: 56KB
Switching Fabric: 1Gbps
MAC Address Table: 1K entries
Forwarding rate: 0.7Mpps (64-byte packet size)
Special Features
Hardened components rated for extreme temperatures
Auto-Negotiation
Auto store and forward architecture
Automatic address learning and address aging
ESD 6KV protection
Power
Input: 9.6 – 60V DC
Compatible power supply: TI-M6024 (sold separately)
Max. consumption: 1.23W
Terminal Block
3-pin terminal block
Wire range: 1.5mm^2
Solid wire (AWG): 16-28
Stranded wire (AWG): 16-28
Torque: 3 lb. – In / 0.2Nm / 0.56Nm
Wire strip length: 6-7mm
MTBF
576,653 hours
Housing
IP30 metal case
DIN-Rail mount
Wall mount
Grounding point
ESD 6KV protection
Operating Temperature
- 40° - 75° C (-40° - 167° F)
Operating Humidity
Max. 95% non-condensing
Dimensions
100.5 x 60 x 25.5mm (3.95 x 2.36 x 1 in.)
Weight
214g (7.5 oz.)
Certifications
CE
LVD
Shock (EN 60068-2-27)
Freefall (EN 60068-2-31)
Vibration (EN 60068-2-6)
ESD 6KV
EFT 2KV
Surge 2KV
