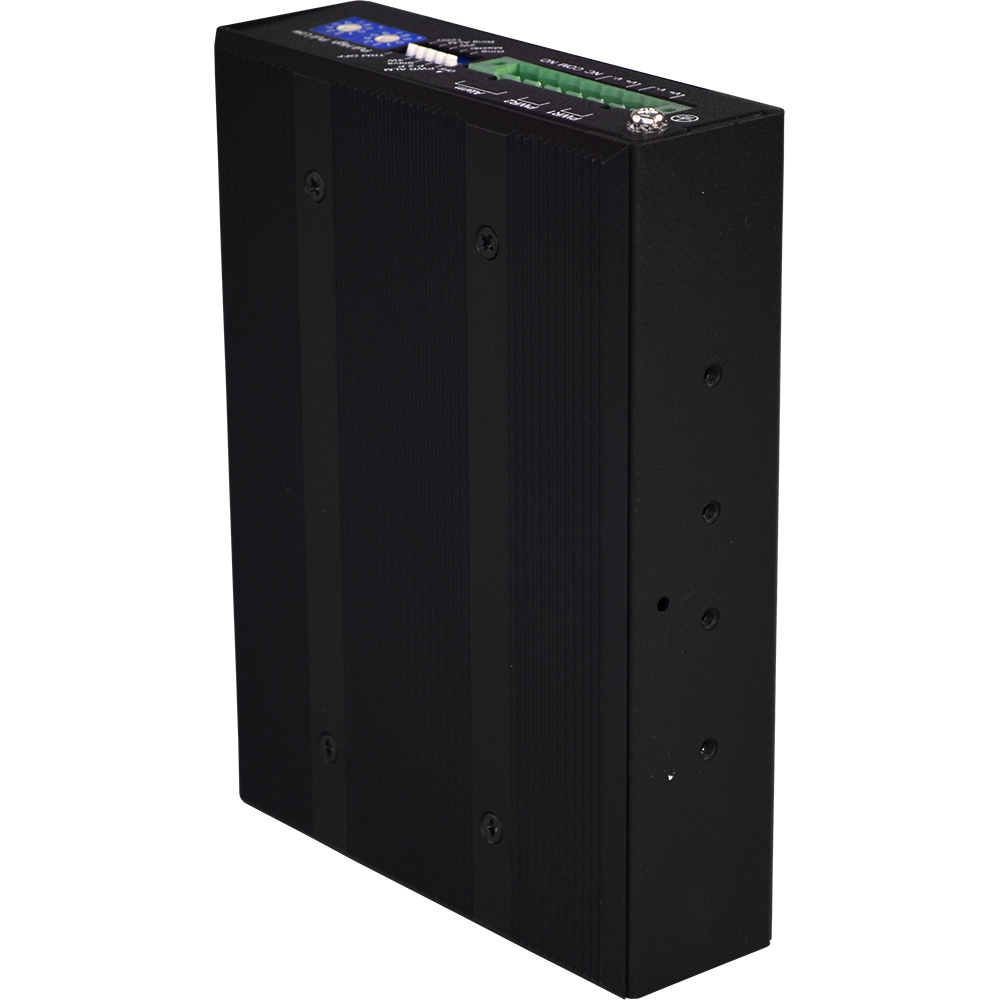

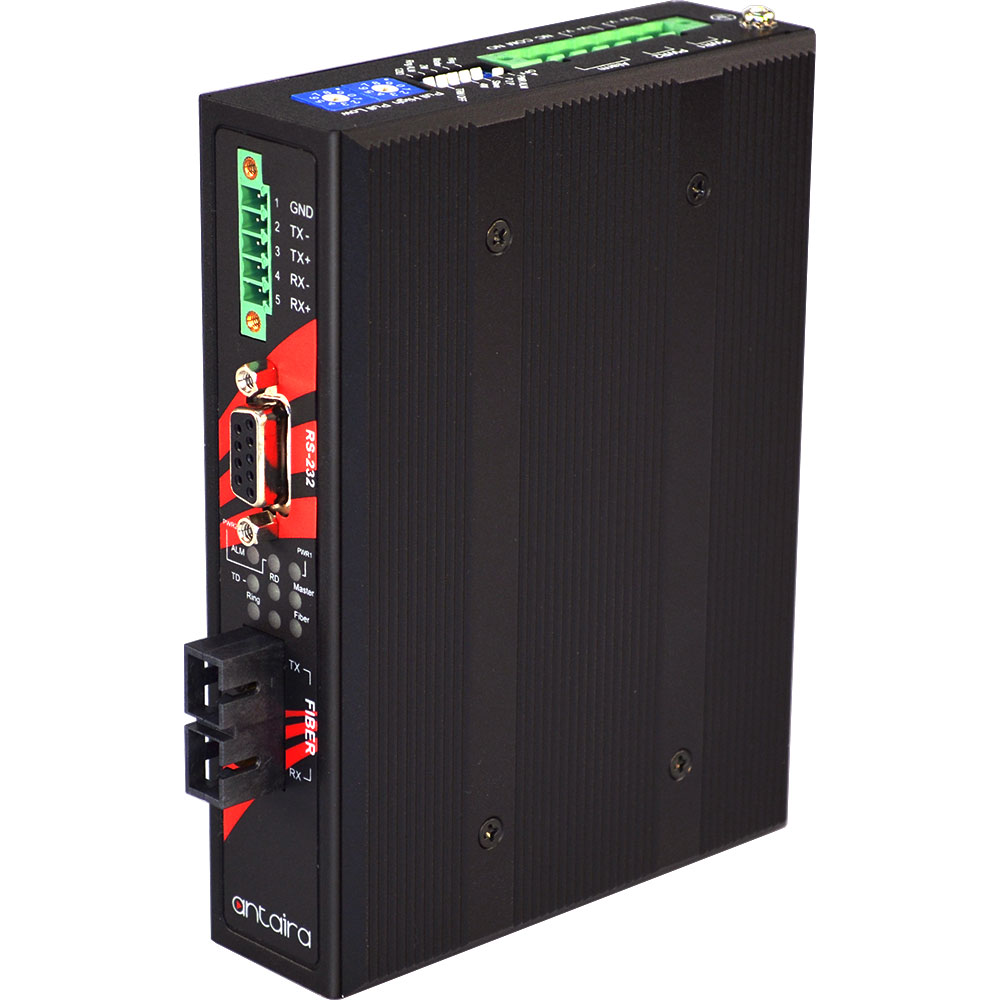

Tööstuslik konverter RS-232/422/485 > Multi Mode SC, -40°C kuni 75°C, 2.5kV isolatsiooniga

Technology
Baud Rate	50 up to 1024Kbps (RS-422/485) 230.4Kbps (RS-232-CH1) 115.2Kbps (RS-232-CH2)
Serial Signals	RS-232 - CH1 TD/RD, CH2 TD/RD, GND RS-422-4w - TxD+, TxD-, RxD+, RxD-, GND RS-485-2w - Data+, Data-,GND
Pull High/Low	Adjustment by 10 position rotary switch
Fiber Interface
Fiber Port Count	1 port
100 BASE-FX Fiber	1 port (SC connector)
Wavelength	1310nm
Transmission Distance	2 km
Tx Power	-14 ~ -20 dBm
Rx Sensitivity	-31 dBm
Serial Interface
Serial Port Count	1 port
Serial Interface	RS-232/422/485
Other Interface
DIP Switch	6 PIN Mode Switch
LED Indicator	Alarm,PWR1,PWR2,TD/RD,Master,Ring, Fiber
Performance
Transfer Rate	50 up to 1024Kbps (RS-422/485)230.4Kbps (RS-232-CH1)115.2Kbps (RS-232-CH2)
Power Requirements
Power Connection	7-pin removal terminal block
Input Voltage	12V, 24V, 48V DC (9.6V–58V DC absolute)
Power Redundancy	Yes
Relay Output	24V DC, 1A resistive
System Power Consumption	5 Watts
Reverse Polarity Protection	Present
Isolation Protection	2.5KV
ESD	8KV
Environmental Limits
Operating Temperature	-40° to 75° C (-40° to 167° F)
Storage Temperature	-40° to 85° C (-40° to 185° F)
Ambient Relative Humidity	5% to 95% non-condensing
Mechanical Characteristics
Housing	Metal, IP30 Protection

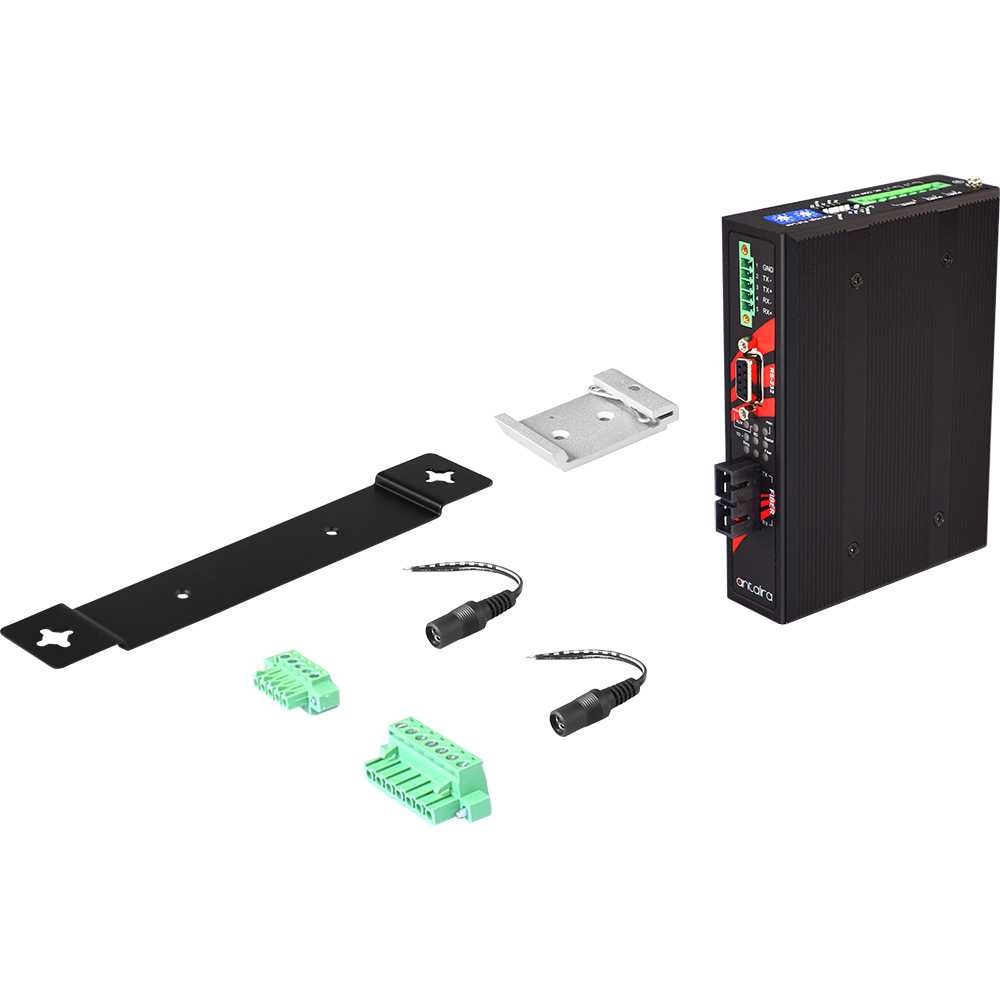

Mounting	DIN-Rail mount, Wall mount (Optional)
Dimensions (W × H × D)	106 × 39 × 142 mm ( 4.72 × 1.54 × 5.59 inches)
Weight	1.59 lbs (0.72 kg)
Regulatory Approvals
Certifications	FCC,CE
EMI	FCC Part15, CISPR (EN55022) Class A
EMS	IEC 61000-4-2:2008 ESD (Level 3) IEC 61000-4-3:2006+A1:2007+A2:2010 RS (Level 3) IEC 61000-4-4:2012 EFT (Level 3) IEC 61000-4-5:2005 SURGE (Level 3) IEC 61000-4-6:2008 CS (Level 3) IEC 61000-4-8:2009 PFMF (Level 3) IEC 61000-4-11:2004 DIPS (Level 3)
Stability Testing	Shock: IEC60068-2-27 Free Fall: IEC60068-2-32 Vibration: IEC60068-2-6
MTBF	797,101 hours
Green	RoHS Compliant
Warranty	5 years

288,00 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

Antaira_STF-501C-CM02-T_datasheet.pdf
