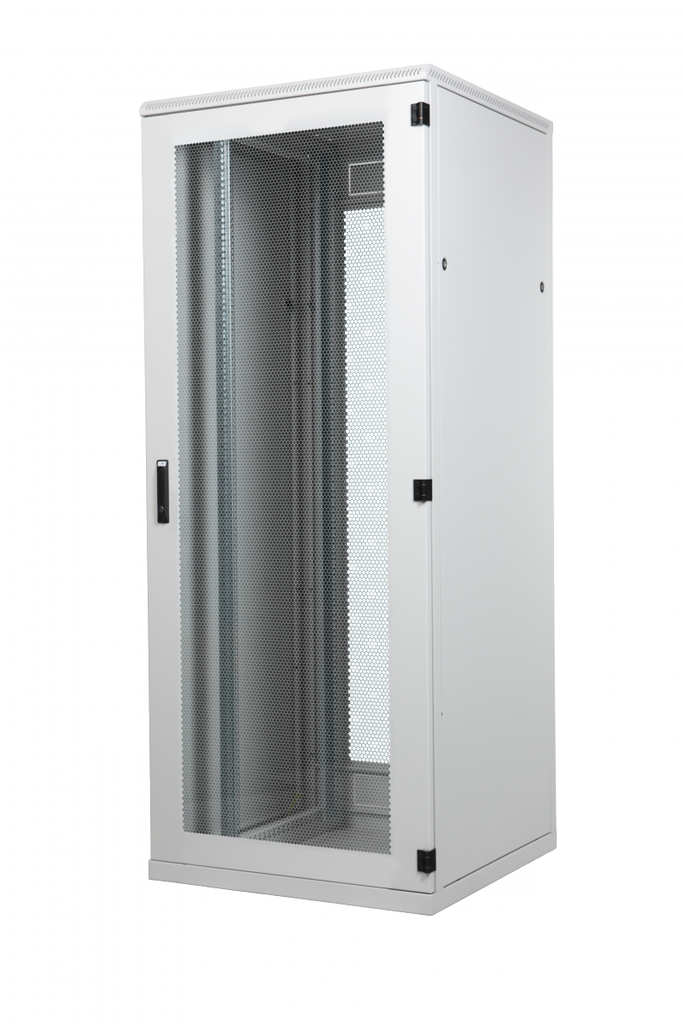

Mõõdud: 42U, kõrgus: 1980mm, laius: 800mm, sügavus: 1200mm
Materjal: Lehtteras
Uks: Klaasuks ees
Kandevõime: kuni 1000kg
Värv: hall, RAL 7035
Komplektis: läbiviigu harjased, M6 kruvid ja mutrid (16tk), kapijalad, 19" paigaldussiinid ees ja taga
Material: steel sheet
-
Front door: sheet metal/glass
-
Rear door: shortened sheet metal wall
-
Side walls: steel sheet
-
Load capacity: 600 kg
-
IP rating: 20
-
Colour: RAL7035
Basic version ensures optimum installation and configuration. Welded structure ensures safety of use even at maximum load. Used primarily as a network cabinet/distributionpoint.
Sheet steel housing with welded frame, completely pre-assembled, self ventilated,
Surface finish: powder painted in RAL 7035 - light grey (other colors on request),
Protection IP20 in accordance with PN 92/E-08106/EN 60529/IEC 529. (does not apply to brush cable entries),
Indoor use, .
Cabinets can be arranged in line using line-up bolts after removing side walls (Part No.11190130)
Cabinet frame fully welded - 1,5 mm thick sheet steel on 4 x leveling feet M10.
Front door: window made of safety glass (optionally: full steel, full glass, punched perforated plate), opening angle 180 degrees. Left or right door opening options,
Cabinet rear panel - 1 mm. thick sheet steel, removable with two single point locks (Optionally: full steel or perforated, left or right side mounted door),
Cabinet side panels - 1 mm thick sheet steel, removable with two single point locks,
Two pairs of the profile rails (AL-Zn coated) each arranged at the front and rear on the inside. Each profile with unit labeling,
Included in delivery:
-
brush strip
-
set of M6 assembly bolts (16 pcs)
-
set of floor-leveller feet
-
1,5 m edge sealing
-
2 pairs of 19’’ mounting sections
