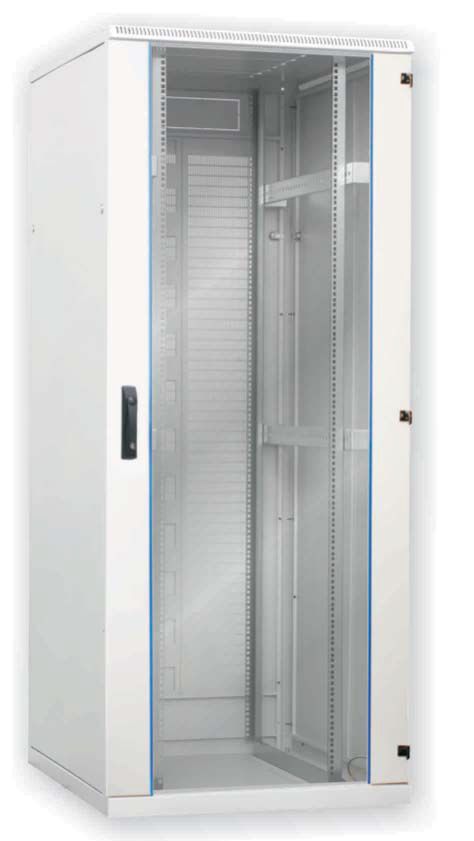

Mõõdud: 42U, kõrgus: 1980mm, laius: 800mm, sügavus: 800mm
Materjal: Lehtteras
Uks: Klaasuks ees
Kandevõime: kuni 600kg
Värv: hall, RAL 7035
Komplektis: läbiviigu harjased, M6 kruvid ja mutrid (16tk), kapijalad, 19" paigaldussiinid ees ja taga
Included in delivery:
-
brush strip
-
set of M6 assembly bolts (16 pcs)
-
set of floor-leveller feet
-
1,5 m edge sealing
-
2 pairs of 19’’ mounting sections

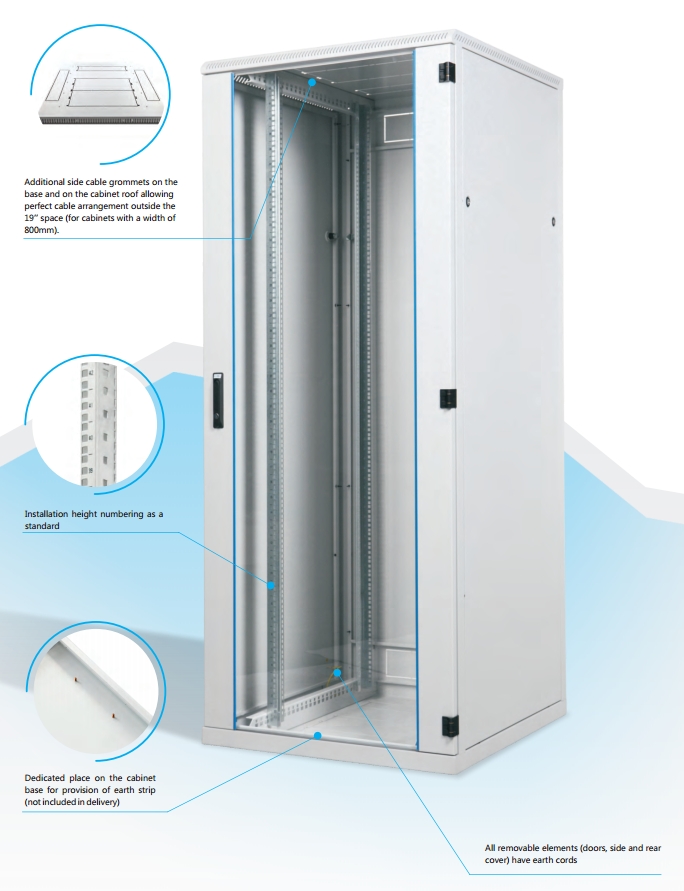

Basic version ensures optimum installation and configuration. Welded structure ensures safety of use even at maximum load. Used primarily as a network cabinet/distributionpoint.
-
Sheet steel housing with welded frame, completely pre-assembled, self ventilated,
-
Surface finish: powder painted in RAL 7035 - light grey (other colors on request),
-
Protection IP20 in accordance with PN 92/E-08106/EN 60529/IEC 529. (does not apply to brush cable entries),
-
Indoor use, .
-
Cabinets can be arranged in line using line-up bolts after removing side walls (Part No.11190130)
-
Cabinet frame fully welded - 1,5 mm thick sheet steel on 4 x leveling feet M10.
-
Front door: window made of safety glass (optionally: full steel, full glass, punched perforated plate), opening angle 180 degrees. Left or right door opening options,
-
Cabinet rear panel - 1 mm. thick sheet steel, removable with two single point locks (Optionally: full steel or perforated, left or right side mounted door),
-
Cabinet side panels - 1 mm thick sheet steel, removable with two single point locks,
-
Two pairs of the profile rails (AL-Zn coated) each arranged at the front and rear on the inside. Each profile with unit labeling,
Maximum spacing between front and rear profile rails:
- cabinet depth 600 mm - max 472 mm
- cabinet depth 800 mm - max 672 mm
- cabinet depth 900 mm - max 772 mm
- cabinet depth 1000 mm - max 872 mm
-
Possibility to increase maximum weight of equipment mounted in the cabinet SRS by using cabinet max load strengthen kit,
-
Cables let in entry optionally either from roof or base, either, through top or bottom of the rear side of cabinet, pre-punched opening (Dimensions: 450 x 90 mm),
-
In the roof and base of cabinet 2 x 4U blind plates (pre - punched opening) for fan units (possible configurations 1 or 2 x 2 fan units, 1 x 4 fan units, 1 x 6 fan units),
Optionally:
-
plinth standard or with tilt protection
-
cabinet wheel kit - 11190143 (maximum load capacity 150 kg.)
-
heavy duty castor set - (maximum load capacity 500 kg.) for cabinets 600 width - 11190160, and for 800 width - 11190180
-
optional 19" swing frame 90° opening
-
plinths, shelves, fan units, light units, power distribution units, blanking covers, cable management accessories etc.
