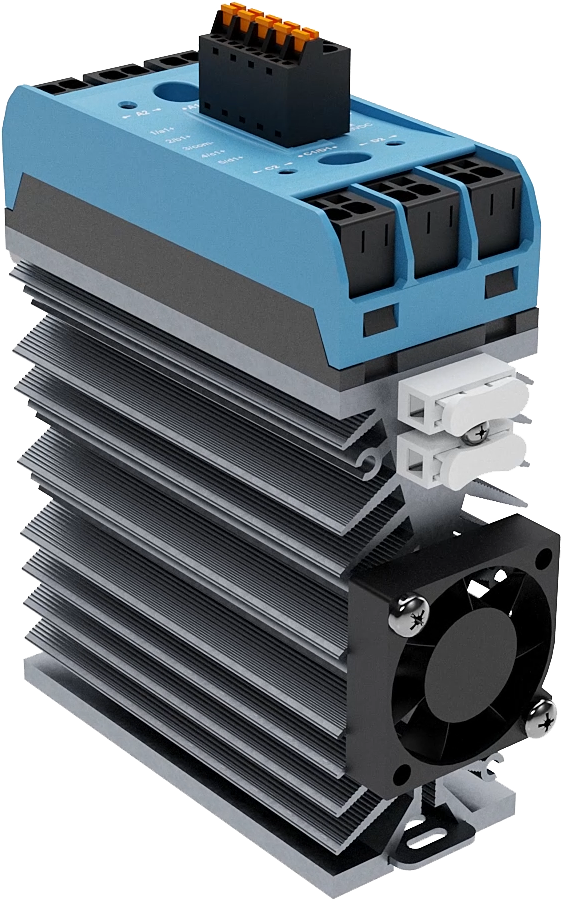

Pooljuhtrelee SSR, push in Kontaktorid 4X25A/24-580VAC/TVS/4 Juhtimispinge 10-30VDC/LED

Pooljuhtrelee SSR, push in Kontaktorid 4X25A/24-580VAC/TVS/4 Juhtimispinge 10-30VDC/LED

SMQR9 seeria nelja jalaga tahkisrelee (SSR) pakub tugevat ja tõhusat juhtimist neljajalgsetele elektrisüsteemidele koos null-ristumise funktsionaalsusega. Türistori reitinguga 4x25A ja maksimaalse lülitusvooluga 4x18A AC-1 @40°C tagab see tahkisrelee usaldusväärse töö erinevates rakendustes. DIN-siini kinnitamiseks mõeldud disainiga on sellel push-in vedruterminalid, mis võimaldavad lihtsat paigaldust ja integreerimist. Kaasasolev jahutusradiaator tagab tõhusa soojuse hajutamise, samas kui vastavus CE ja UKCA standarditele tagab kvaliteedi ja ohutuse.
Specifications
Type: Four-leg SSR with push-in spring terminals, zero cross, and output protection
Thyristor Rating: 4x25A
Max. Switching Current (A): 4x18A AC-1 @40°C
Type of Mounting: DIN rail
Number of Poles: 4 - Four-leg
Function: AC on/off Zero-Cross
Switching Voltage Rate: 24-600VAC
Control Voltage Rate: 10-30VDC

Standards: CE, UKCA

Features
Type of Relay (AC or DC): AC
Series: SMQR9 - Heatsink included
Output Protection Type: TVS
Heatsink Included: Yes
Terminals (Power): Push-in
Housing Type: Low profile

Applications:
(AC-1 / LC A) Heating elements
388,25 € 388,25 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
FT_SMQR9623410-WFF05.pdf

Manufacturer Part Number: SMQR9623410-WFF05
Tootekood: EE-100-188-186

Spetsifikatsioon

Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay standards CE, UKCA, Ul curus (Relay standards)
Relay switching voltage 110/120 VAC, 230 VAC, 400 VAC, 480 VAC, 600 VAC
Min thyristor rating per phase (A) 20 29 (Min thyristor rating per phase (A))
Relay application Ac1 lca heating elements
Relay enclosure Low profile
Relay function Ac on off zero crossing
Relay heatsink Yes (Relay heatsink)
Relay max switching current per phase 40c a 10 19 (Relay max switching current per phase 40c a)
Relay number of poles Four leg
Relay output protection type TVS
Relay terminals Push in
Relay type AC DC AC
Relay type of mounting Din rail
Weight 0.21 kg
