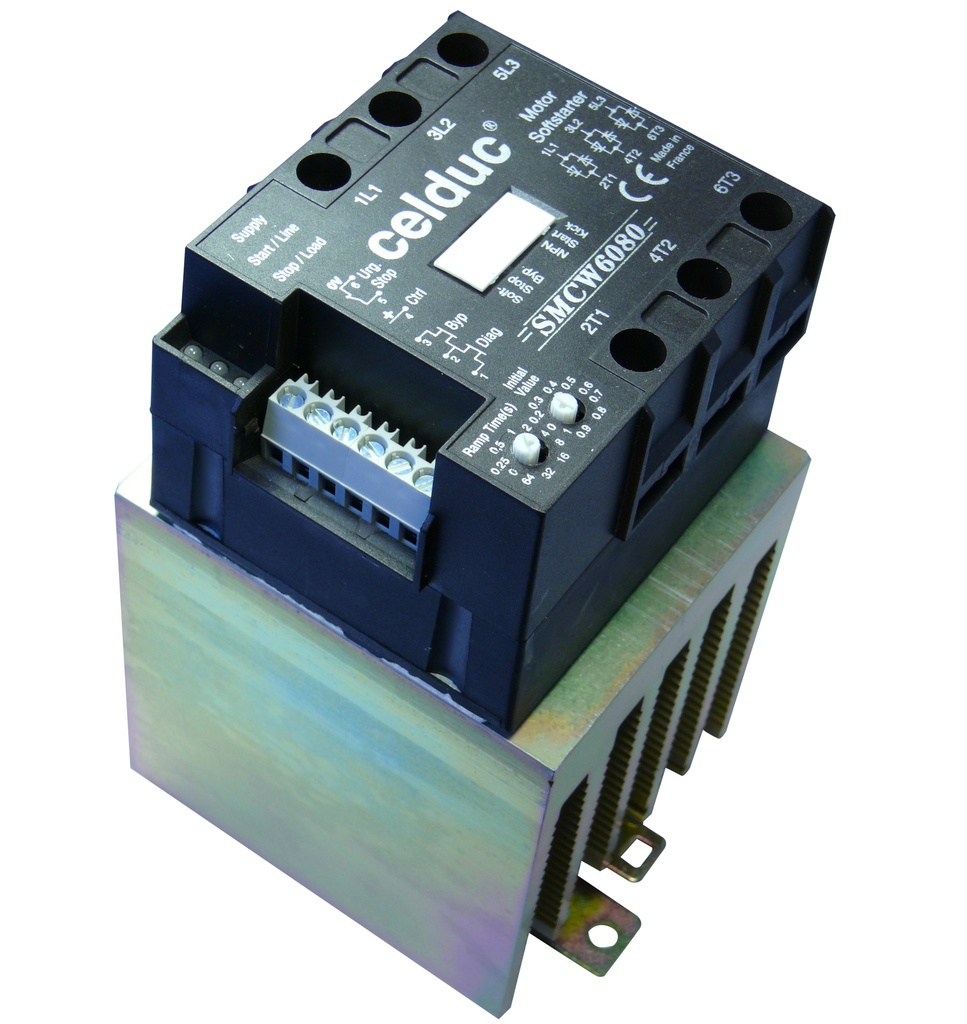

Sujuvkäiviti 3-faasiline 7,5KW/200-480V

Sujuvkäiviti 3-faasiline 7,5KW/200-480V

SMCW seeria kolmefaasiline AC sujuvkäiviti on varustatud sisseehitatud jahutusradiaatori ja väljundkaitsega, tagades usaldusväärse jõudluse ja ohutuse. Türistori reiting on 3x60A ning maksimaalne lülitusvool on 3x16A AC-3 @40°C, mistõttu see käivitaja sobib mitmesugusteks rakendusteks. Mõeldud DIN-rööpale paigaldamiseks ja standardsete terminalidega, see on ideaalne mootorite, hõõglampide, infrapunakiirgurite, LED-ide ja transformaatorite juhtimiseks.
Specifications:
Three-phase AC soft starter
Heatsink included
Output protection
Thyristor rating: 3x60A
Max. switching current: 3x16A AC-3 @40°C
Type of mounting: DIN rail
Number of poles: 3- Three-phase
Function: Starter
Switching voltage rate: 200-480VAC
Control voltage rate: 10-24VDC

Standards:
CE
EAC
UKCA

Features:
Soft-Starter 3PH.7,5KW/200-480V
Type of relay: AC
Series: SMCW
Output protection Type: RC, VDR
Heatsink included: YES
Terminals (power): Screws
Housing type: Standard

Application:
(AC-3 / LC B) Motors
(AC-5a / LC D) Incandescent light bulbs and infrared lamps
(AC-5b/DC-6) LEDs
(AC-6a / LC E) Transformers
807,01 € 807,01 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
FA_SMCW6080.pdf

Manufacturer Part Number: SMCW6080
Tootekood: EE-100-188-177

Spetsifikatsioon

Relay application Ac 3 lc b motors, Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac 6a lc e transformers
Relay output protection type Rc, VDR
Relay standards CE, EAC, UKCA
Relay switching voltage 230 VAC, 400 VAC, 480 VAC
Min thyristor rating per phase (A) 60 69 (Min thyristor rating per phase (A))
Relay control voltage nominal 5/12/24 VDC
Relay enclosure Standard (Relay enclosure)
Relay function Starter
Relay heatsink Yes (Relay heatsink)
Relay max switching current per phase 40c a 10 19 (Relay max switching current per phase 40c a)
Relay number of poles Three phase
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Din rail
Weight 1.44 kg
