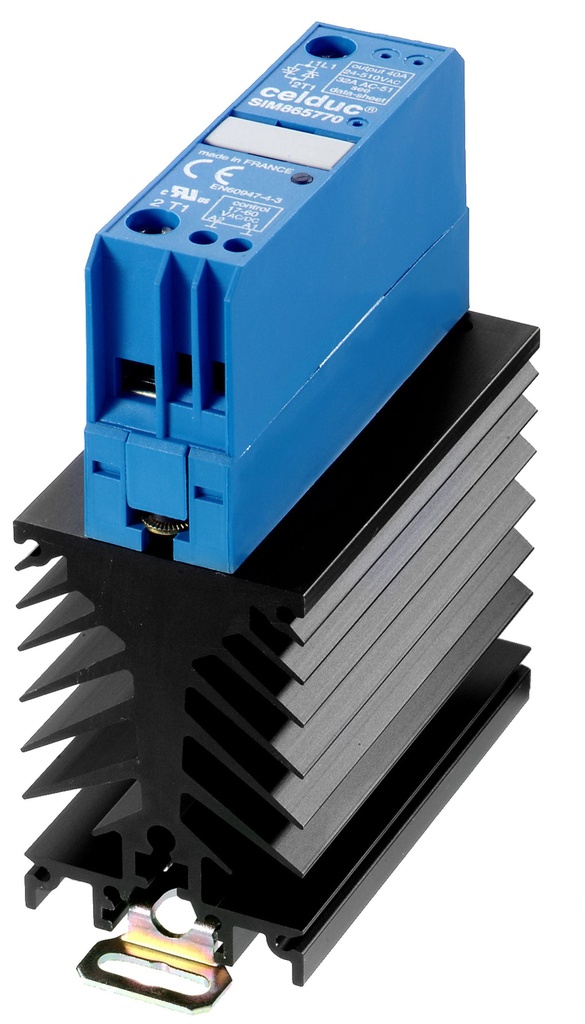

Pooljuhtrelee (SSR) 40A/160-450VAC/Juhtimispinge 0-10V

Pooljuhtrelee (SSR) 40A/160-450VAC/Juhtimispinge 0-10V

Kogege täpset juhtimist ja paremat ohutust meie SIM465000 faasinihkekontrolleriga. Spetsiaalselt ühefaasilistele rakendustele mõeldud see kontroller omab vastupidavat türistori hinnangut 50A ja maksimaalset lülitusvoolu 35A AC-1 @40°C. Laia lülituspinge vahemikuga 160-450VAC ja juhtimispinge vahemikuga 0-10VDC tagab see sujuva toimimise. Varustatud väljundkaitsega (VDR) ja sisseehitatud jahutusradiaatoriga, sobib see erinevateks rakendusteks, sealhulgas kütteelementide, mootorite, pirnide, LED-ide ja transformaatorite juhtimiseks. Vastavuses CE, EAC ja UKCA standarditega, tagab see usaldusväärsuse ja ohutuse teie elektrivajaduste jaoks.
Specifications:
Type: Phase angle controller
Phase: Single phase
Output protection: Yes
Thyristor rating: 50A
Max. switching current (A): 35A AC-1 @40°C
Mounting type: DIN rail
Number of poles: 1- Single phase
Function: Analog Controller
Switching voltage rate: 160-450VAC
Control voltage rate: 0-10VDC

Standards:
CE
EAC
UKCA

Features:
Rating: 40A/160-450Vac/Ctrl 0-10v
Relay type: AC
Series: SIL4-SIM4
Output protection type: VDR
Heatsink included: Yes
Terminals: Screws
Housing type: Low profile

Application:
Heating elements (AC-1 / LC A)
Motors (AC-3 / LC B)
Incandescent light bulbs and infrared lamps (AC-5a / LC D)
LEDs (AC-5b/DC-6)
Transformers (AC-6a / LC E)
391,15 € 391,15 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
CC_Mono TOR.pdf FA_SIM465000.pdf IS_SI.pdf

Manufacturer Part Number: SIM465000
Tootekood: EE-100-188-073

Spetsifikatsioon

Relay application Ac 3 lc b motors, Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac 6a lc e transformers, Ac1 lca heating elements
Relay standards CE, EAC, UKCA
Relay switching voltage 230 VAC, 400 VAC, 480 VAC
Min thyristor rating per phase (A) 50 59 (Min thyristor rating per phase (A))
Relay control voltage nominal 0–10 VDC
Relay enclosure Low profile
Relay function Analog controller
Relay heatsink Yes (Relay heatsink)
Relay max switching current per phase 40c a 30 39 (Relay max switching current per phase 40c a)
Relay number of poles Single phase
Relay output protection type VDR
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Din rail
Weight 0.39 kg
