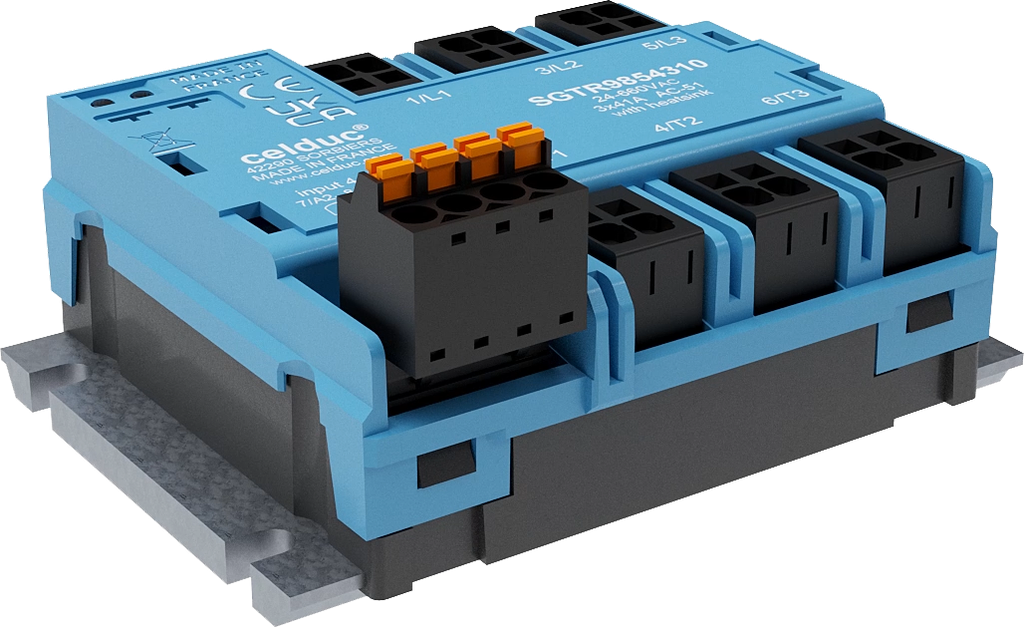

ZC 3-faasiline Pooljuhtrelee (SSR) 3X41A/24-520VAC/VDR/Juhtimispinge 4-30VDC/IC regulaator

ZC 3-faasiline Pooljuhtrelee (SSR) 3X41A/24-520VAC/VDR/Juhtimispinge 4-30VDC/IC regulaator

Kogege erakordset juhtimist ja töökindlust meie kolmefaasilise tahkisreleega (SSR). Konstrueeritud null-ristumise funktsiooniga ja integreeritud väljundkaitsega, tagades täpse vahelduvvoolu sisse/välja lülitamise erinevates rakendustes. Sellel on 3x125A türistori reiting ja maksimaalsed lülitusvoolud 3x32A AC-3 @40°C ja 3x41A AC-1 @40°C, mis töötab tõhusalt laias pingevahemikus 24-520VAC. Lihtsaks kruviga paigaldamiseks ja push-in vedruklemmidega disainitud, sobib see ideaalselt kütteelementide, mootorite, lampide, LEDide ja muu juhtimiseks. Vastavus CE ja UKCA standarditele tagab ohutuse ja kõrge jõudluse.
Specifications:
Type: Three-phase SSR push-in spring terminals - Zero cross - with output protection
Thyristor Rating: 3x125A
Max. Switching Current (A):
3x32A AC-3 @40°C
3x41A AC-1 @40°C
Type of Mounting: To screw
Number of Poles: 3- Three-phase
Function: AC on/off Zero-Cross
Switching Voltage Rate: 24-520VAC
Control Voltage Rate: 4-30VDC

Standards:
CE
UKCA

Features:
ZC THREE PHASE PUSH IN SSR 3X41A/24-520VAC/VDR/CTRL 4-30VDC/ICREGUL
Type of Relay: AC
Series: SGTR8
Output Protection Type:
RC
VDR
Heatsink Included: NO
Terminals (Power): Push-in
Housing Type: Standard

Applications:
(AC-1 / LC A) Heating elements
(AC-3 / LC B) Motors
(AC-5a / LC C) Discharge lamps
(AC-5a / LC D) Incandescent light bulbs and infrared lamps
(AC-5b/DC-6) LEDs
(AC-6b / LC F) Capacitors
(AC-14/AC-15/DC-13) Electrovalves and electromagnets
(AC-14/AC-15/DC-13/DC-14) Contactors
462,78 € 462,78 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
FT_SGTR8690510.pdf IS_SG.pdf UE SG-SV-SM.pdf

Manufacturer Part Number: SGTR8690510
Tootekood: EE-100-188-048

Spetsifikatsioon

Relay application Ac 14 ac 15 dc 13 cc 14 contactors, Ac 14 ac 15 dc 13 electrovalves and electromagnets, Ac 3 lc b motors, Ac 5a lc c discharge lamps, Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac 6b lc f capacitors, Ac1 lca heating elements
Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay output protection type Rc, VDR
Relay standards CE, UKCA, Ul curus (Relay standards)
Relay switching voltage 110/120 VAC, 230 VAC, 400 VAC, 480 VAC
Min thyristor rating per phase (A) 100 150 (Min thyristor rating per phase (A))
Relay enclosure Standard (Relay enclosure)
Relay function Ac on off zero crossing
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 40 49 (Relay max switching current per phase 40c a)
Relay number of poles Three phase
Relay terminals Push in
Relay type AC DC AC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.2 kg
