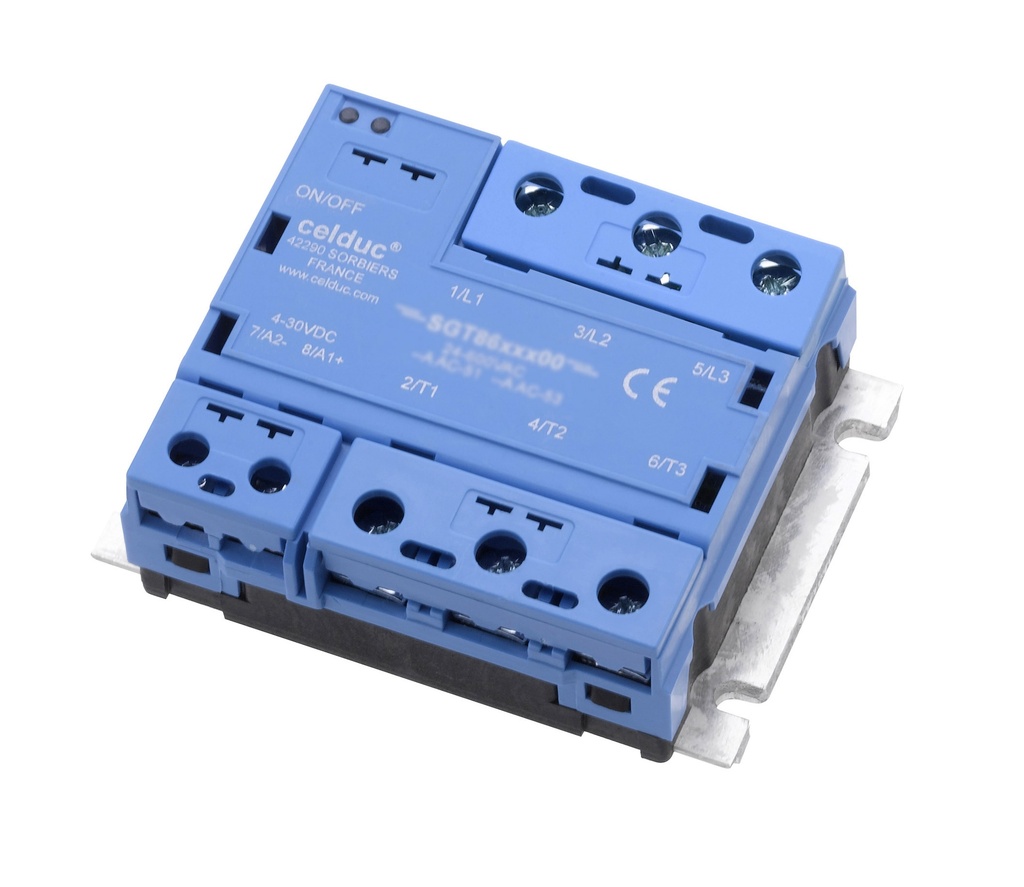

ZC 3-faasiline Pooljuhtrelee (SSR) 3X50A/24-660VAC/Juhtimispinge 4-30VDC

ZC 3-faasiline Pooljuhtrelee (SSR) 3X50A/24-660VAC/Juhtimispinge 4-30VDC

Kogege täpset juhtimist ja usaldusväärset tööd meie SGT9854300 kolmefaasilise tahkisreleega (SSR). Sellel on võimas 3x50A türistori hinnang ja maksimaalne lülitusvool 3x42A AC-1 @40°C juures, tagades täpse vahelduvvoolu sisse/välja lülitamise vahemikus 24-660VAC. See vastab CE, EAC, S-MARK, UKCA ja UL standarditele ning sobib ideaalselt küttekehade rakendusteks.
Specifications:
Type: Three-phase SSR
Functionality: Zero cross, with output protection
Thyristor Rating: 3x50A
Max. Switching Current: 3x42A AC-1 @40°C
Mounting: Screw-type
Number of Poles: 3 (Three-phase)
Switching Voltage Rate: 24-660VAC
Control Voltage Rate: 4-30VDC

Standards:
CE
EAC
S-MARK
UKCA
UL (cURus)

Features:
Three-phase SSR SYNCH. 3X50A/24-660VAC/CTRL 4-30VDC
Type of Relay: AC
Series: SGT 2G
Output Protection Type: TVS on gate
Heatsink Included: NO
Terminals: Screws
Housing Type: Standard

Application:
(AC-1 / LC A) Heating elements
262,19 € 262,19 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
FT_SGT9854300.pdf IS_SG.pdf UE SG-SV-SM.pdf

Manufacturer Part Number: SGT9854300
Tootekood: EE-100-188-042

Spetsifikatsioon

Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay standards CE, EAC, S mark, UKCA, UL cURus
Relay switching voltage 110/120 VAC, 230 VAC, 400 VAC, 480 VAC, 600 VAC
Min thyristor rating per phase (A) 50 59 (Min thyristor rating per phase (A))
Relay application Ac1 lca heating elements
Relay enclosure Standard (Relay enclosure)
Relay function Ac on off zero crossing
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 40 49 (Relay max switching current per phase 40c a)
Relay number of poles Three phase
Relay output protection type Tvs on gate
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.2516 kg
