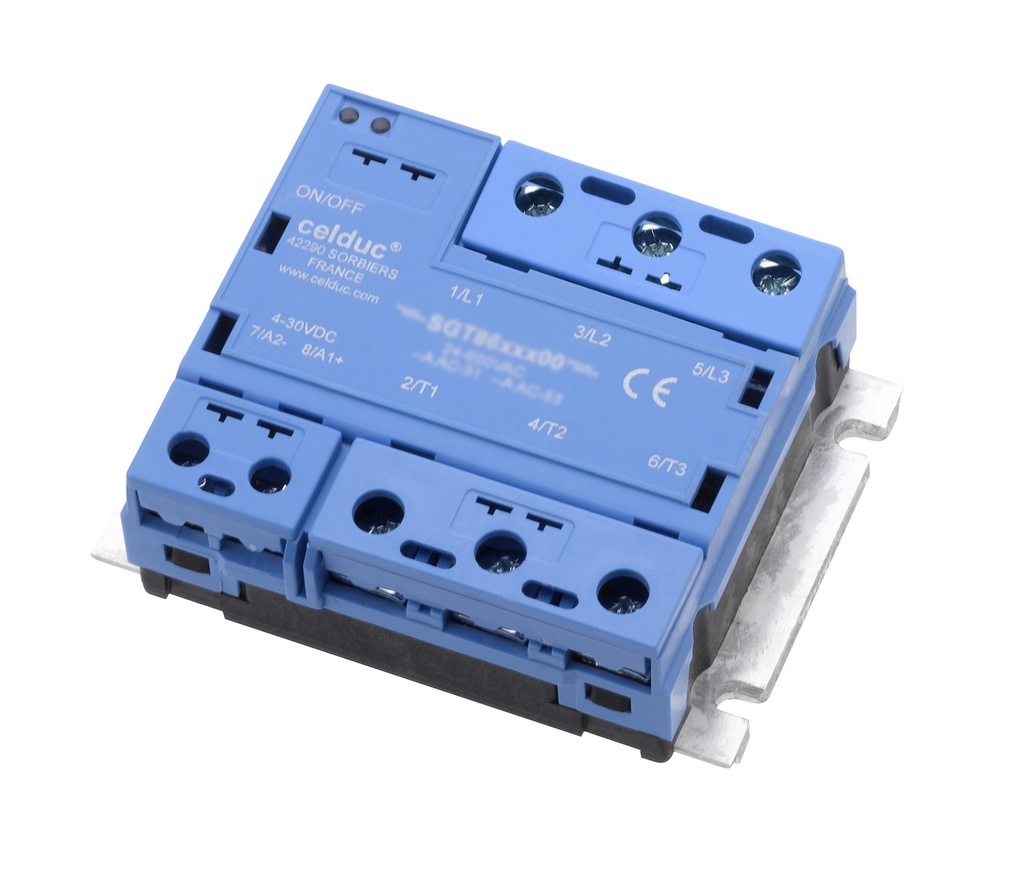

ZC 3-faasiline Pooljuhtrelee (SSR) 3X50A/24-640VAC/Juhtimispinge 24-255VAC/DC

ZC 3-faasiline Pooljuhtrelee (SSR) 3X50A/24-640VAC/Juhtimispinge 24-255VAC/DC

Kogege täpset juhtimist ja usaldusväärset toimimist meie SGT8858200 kolmefaasilise SSR SYNCH-iga. Tugevusele suunatud disainiga pakub see tahkisrelee võimsat 3x50A türistori hinnangut, tagades efektiivse töö mitmetes tööstuslikes rakendustes. Maksimaalse lülitusvooluga 3x12A AC-3 @40°C ja 3x42A AC-1 @40°C, tagab see täpse vahelduvvoolu sisse/välja lülitamise laias vahemikus 24-640VAC. Vastab CE, EAC, UKCA ja UL standarditele, olles seega ideaalne valik mitmesugusteks rakendusteks, sealhulgas küttekehade, mootorite, lampide, LED-de ja palju muu jaoks.
Specifications:
Type: Three-phase SSR (Solid State Relay)
Function: Zero cross with output protection
Thyristor Rating: 3x50A
Max. Switching Current: 3x12A AC-3 @40°C, 3x42A AC-1 @40°C
Mounting Type: To screw
Number of Poles: 3 (Three-phase)
Switching Voltage Rate: 24-640VAC
Control Voltage Rate: 24-255VAC/DC

Standards:
CE
EAC
UKCA
UL (cURus)

Features:
Series: SGT 2G
Type of Relay: AC
Output Protection Type: VDR
Heatsink Included: NO
Terminals (Power): Screws
Housing Type: Standard

Application:
(AC-1 / LC A) Heating elements
(AC-3 / LC B) Motors
(AC-5a / LC C) Discharge lamps
(AC-5a / LC D) Incandescent light bulbs and infrared lamps
(AC-5b/DC-6) LEDs
(AC-6b / LC F) Capacitors
(AC-14/AC-15/DC-13) Electrovalves and electromagnets
(AC-14/AC-15/DC-13/DC-14) Contactors
284,17 € 284,17 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
FT_SGT8858200.pdf IS_SG.pdf UE SG-SV-SM.pdf

Manufacturer Part Number: SGT8858200
Tootekood: EE-100-188-031

Spetsifikatsioon

Relay application Ac 14 ac 15 dc 13 cc 14 contactors, Ac 14 ac 15 dc 13 electrovalves and electromagnets, Ac 3 lc b motors, Ac 5a lc c discharge lamps, Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac 6b lc f capacitors, Ac1 lca heating elements
Relay control voltage nominal 230 VAC, 24 VAC, 24 VDC, 5/12/24 VDC
Relay standards CE, EAC, UKCA, UL cURus
Relay switching voltage 110/120 VAC, 230 VAC, 400 VAC, 480 VAC, 600 VAC
Min thyristor rating per phase (A) 50 59 (Min thyristor rating per phase (A))
Relay enclosure Standard (Relay enclosure)
Relay function Ac on off zero crossing
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 40 49 (Relay max switching current per phase 40c a)
Relay number of poles Three phase
Relay output protection type VDR
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.32 kg
