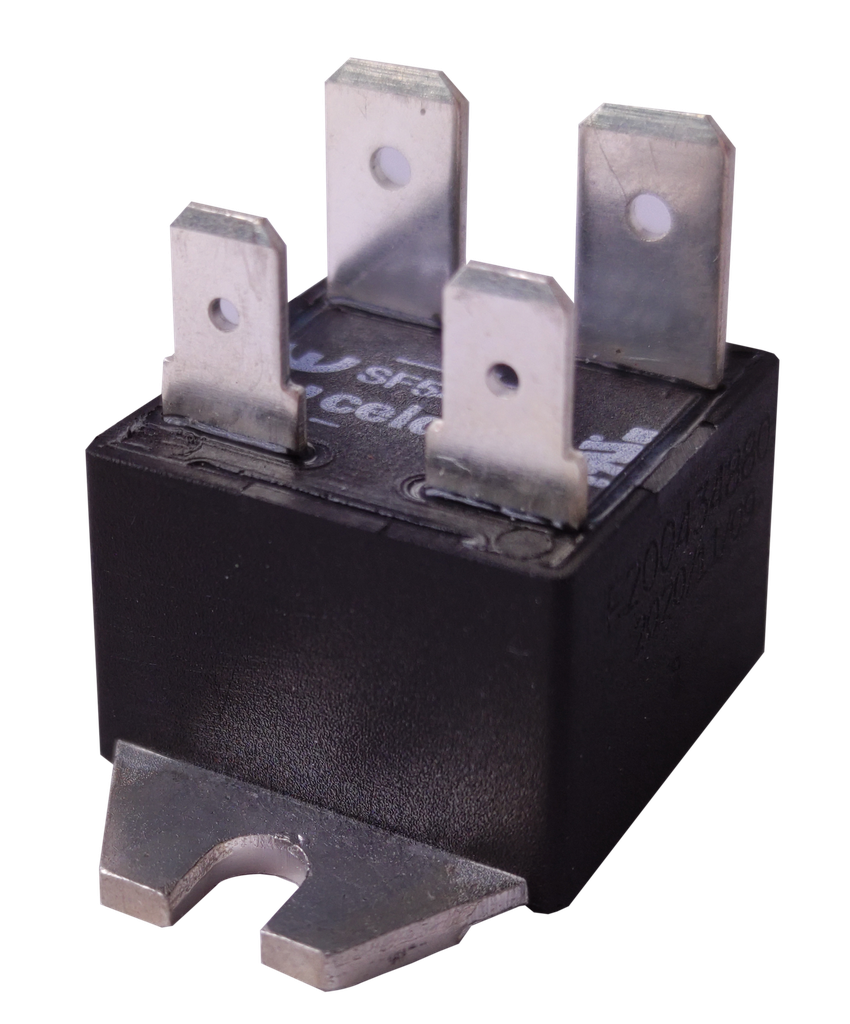

Pooljuhtrelee (SSR) 25A/230VAC/Juhtimispinge 4-30VDC/FASTON

Pooljuhtrelee (SSR) 25A/230VAC/Juhtimispinge 4-30VDC/FASTON

Ühefaasiline pooljuhtrelee (SSR) SF546310 pakub usaldusväärset lülitust vahelduvvoolu koormustele kuni 25A nullpunkti läbimise tehnoloogia abil. See kompaktne seade on varustatud 4-30VDC juhtimispingega ja mugavate FASTON-klemmidega. Ideaalne rakendusteks nagu kütteseadmed, solenoidid, kontaktorid ja PLC-juhtimine. (Jahutusradiaator müüakse eraldi)
Specifications:
Thyristor Rating: 25A
Max. Switching Current (A): 20A (de-rating required for continuous operation)
Type of Mounting: Screw mount
Number of Poles: 1 (Single phase)
Function: AC On/Off (Zero-Cross switching)
Switching Voltage Rate: 12-280VAC
Control Voltage Rate: 4-30VDC

Standards: CE, EAC, UKCA, UL (cURus), VDE

Features:
SSR 25A/12-280VAC/CTRL 4-30VDC/Faston terminals
AC Switching
Series: SF
Zero-Cross detection
Heatsink: Not Included
Terminals (Power): Faston
Housing Type: Miniature

Applications:
Heating Elements (AC-1 / LC A)
Solenoids and Electromagnets (AC-14/AC-15/DC-13)
Contactors (AC-14/AC-15/DC-13/DC-14)
PLC Inputs/Outputs
71,20 € 71,20 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
CC_Mono TOR.pdf FT_SF546310.pdf IS_SF.pdf

Manufacturer Part Number: SF546310
Tootekood: EE-100-187-947

Spetsifikatsioon

Relay application Ac 14 ac 15 dc 13 cc 14 contactors, Ac 14 ac 15 dc 13 electrovalves and electromagnets, Ac1 lca heating elements, Plc inputs outputs
Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay standards CE, EAC, UKCA, UL cURus, VDE
Relay switching voltage 110/120 VAC, 230 VAC
Min thyristor rating per phase (A) 20 29 (Min thyristor rating per phase (A))
Relay enclosure Miniature
Relay function Ac on off zero crossing
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 20 29 (Relay max switching current per phase 40c a)
Relay number of poles Single phase
Relay terminals Faston
Relay type AC DC AC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.0162 kg
