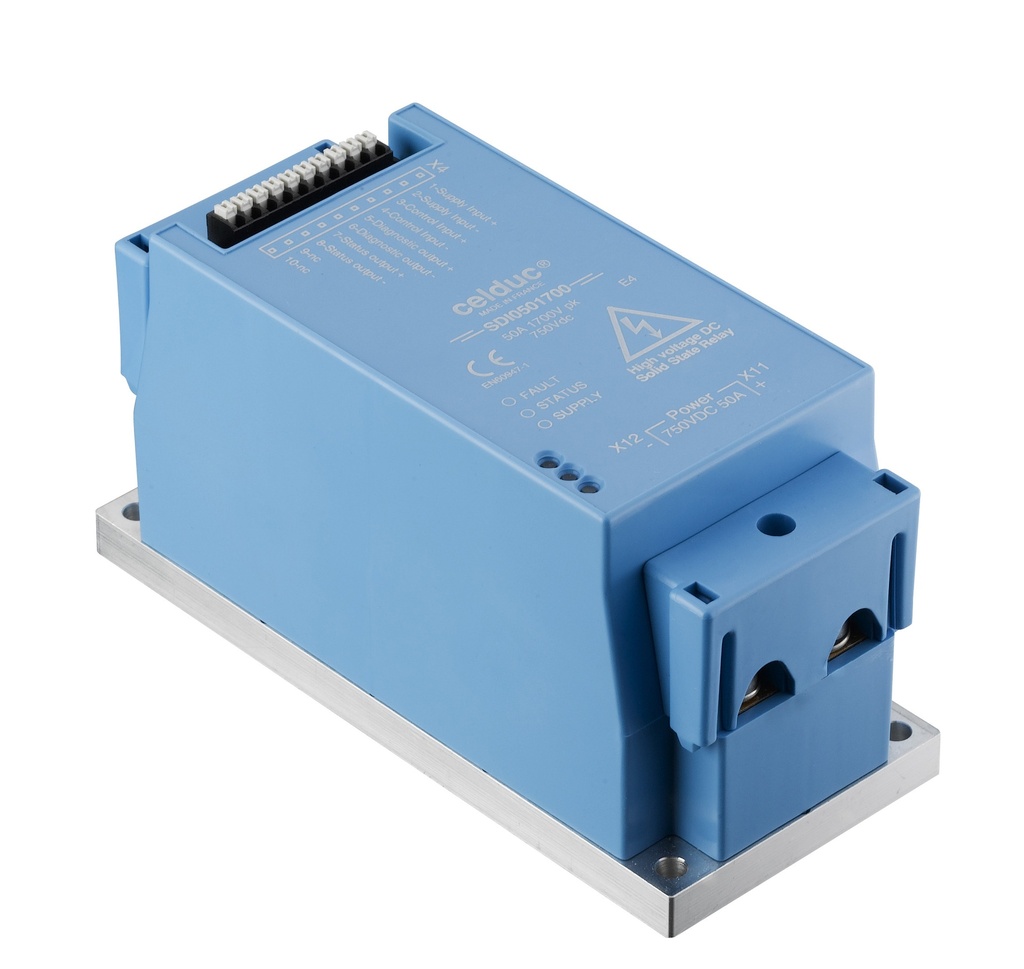

Pooljuhtrelee (SSR) 50A - 1700VDC - Juhtimispinge 72-96-110VDC

Pooljuhtrelee (SSR) 50A - 1700VDC - Juhtimispinge 72-96-110VDC

SDI0501710 suure võimsusega alalisvoolu väljundmoodul pakub usaldusväärset lahendust keskmiste ja suuremate alalisvoolu koormuste, kuni 50A, lülitamiseks. See vastupidav moodul kasutab IGBT-tehnoloogiat tõhusaks alalisvoolu lülitamiseks vahemikus 12-940VDC. Sisseehitatud TVS kaitseb seadet ülepinge eest. Moodul aktsepteerib tööstuslike rakenduste jaoks kõrgema pingega 72-110VDC juhtimissignaali. Kruvikeermed tagavad turvalised ühendused suure voolu rakenduste jaoks.
Specifications:
Thyristor Rating: 50A (IGBT Technology)
Max. Switching Current (A): 50A (de-rating required for continuous operation)
Type of Mounting: Screw mount
Number of Poles: 1 (Single channel)
Function: DC On/Off
Switching Voltage Rate: 12-940VDC
Control Voltage Rate: 72-110VDC

Standards: CE, EAC, UKCA

Features:
DC Output: 50A / 12-940VDC (IGBT)
High Voltage Control: 72-110VDC
Built-in Gate TVS Protection
Series: SDI
Heatsink: Not Included (Required for most applications)
Terminals (Power): Screws
Housing Type: Standard

Applications:
High Power DC Loads (de-rating required)
Battery Banks and Distribution
DC Motor Control (Brushed and Brushless)
Electrolyzer Control (e.g., Hydrogen Production)
2 805,59 € 2 805,59 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
CC_DC.pdf FA_SDI0501710.pdf

Manufacturer Part Number: SDI0501710
Tootekood: EE-100-187-924

Spetsifikatsioon

Relay application Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac1 lca heating elements
Relay standards CE, EAC, UKCA
Min thyristor rating per phase (A) 50 59 (Min thyristor rating per phase (A))
Relay control voltage nominal 24vdc (Relay control voltage nominal)
Relay enclosure Standard (Relay enclosure)
Relay function Dc on off
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 50 59 (Relay max switching current per phase 40c a)
Relay number of poles Single phase
Relay output protection type Tvs on gate
Relay switching voltage 110 VDC
Relay terminals Screws
Relay type AC DC DC
Relay type of mounting Screw (Relay type of mounting)
Weight 1.0611 kg
