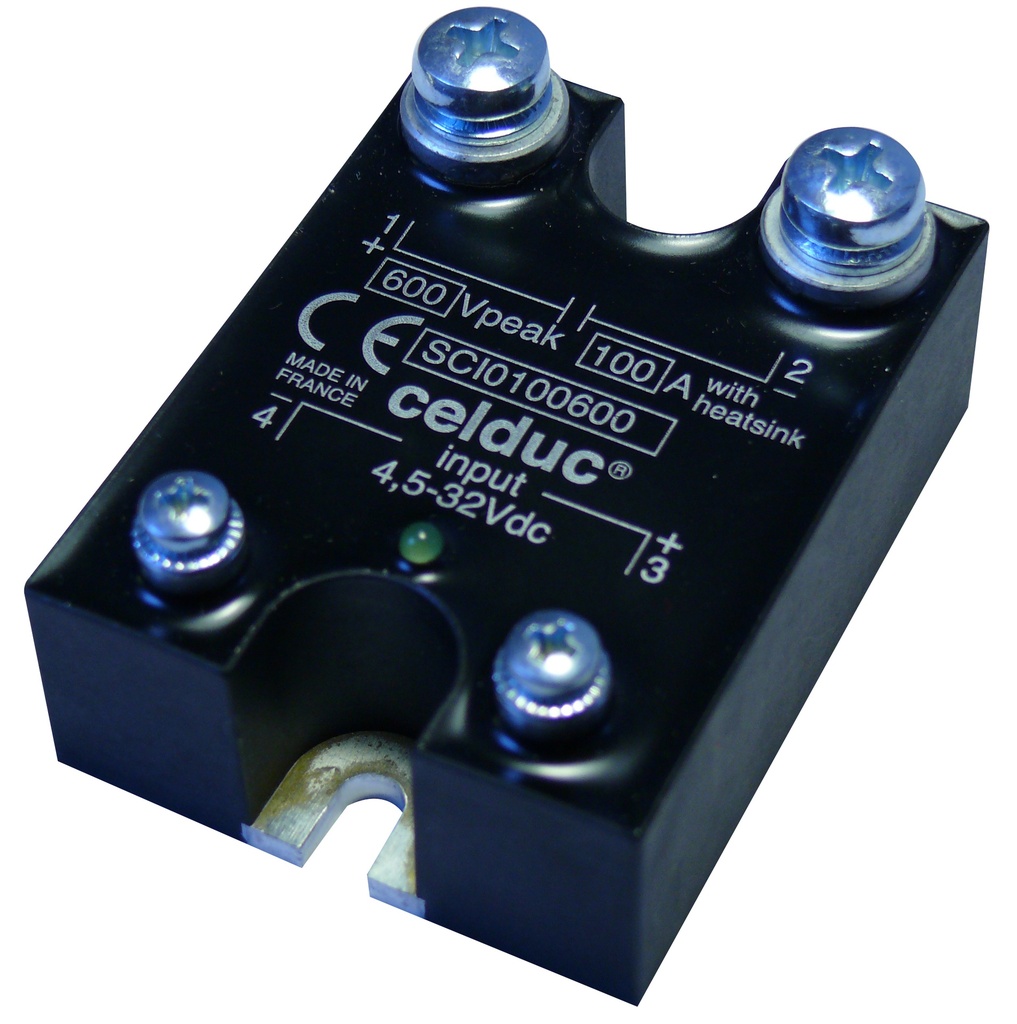

Pooljuhtrelee (SSR) 100A - 600VDC - Juhtimispinge 4,5-32VDC

Pooljuhtrelee (SSR) 100A - 600VDC - Juhtimispinge 4,5-32VDC

SCI0100600 suure voolu ja pingega alalisvoolu väljundmoodul pakub võimsat lahendust nõudlike koormuste, kuni 100A vooluni, lülitamiseks. See vastupidav moodul kasutab IGBT-tehnoloogiat täppisjuhtimiseks ja tal on lai pingevahemik. Ideaalne suure võimsusega aku süsteemidele, tööstusautomatiseerimisele, elektrosadestamisele , suure vooluga päikeseenergia süsteemidele ja muule. (Jahutusradiaator vajalik, müüakse eraldi)
Specifications:
Thyristor Rating: Equivalent to 100A (IGBT Technology)
Max. Switching Current (A): 100A (de-rating required for continuous operation)
Type of Mounting: Screw mount
Number of Poles: 1 (Single phase)
Function: DC On/Off
Switching Voltage Rate: 0-350VDC
Control Voltage Rate: 4.5-32VDC

Standards: CE, EAC, UKCA, UL (cULus)

Features:
High Current & High Voltage DC Output: 100A / 0-350VDC (IGBT)
Wide Control Voltage: 4.5-32VDC
Suitable for Various High Current DC Loads (de-rating may apply):
Heating elements (AC-1 / LC A)
Incandescent light bulbs and infrared lamps (AC-5a / LC D) (Derating may apply)
LEDs (Derating may apply) (AC-5b/DC-6)
Series: SCI
Heatsink: Required (Sold Separately) - Due to the high voltage and current rating, a properly sized heatsink is crucial for safe operation.
Terminals (Power): Screws
Housing Type: Hockey Puck

Applications:
High Power Battery Bank Control and Management
Industrial Automation Systems (High Current DC)
Electroplating Equipment Control (High Current Applications) (Consult a qualified engineer)
Solar Power System Control (High Current Systems)
732,80 € 732,80 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay application
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay output protection type
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
CC_DC.pdf FA_SCI0100600.pdf

Manufacturer Part Number: SCI0100600
Tootekood: EE-100-187-906

Spetsifikatsioon

Relay application Ac 5a lc d incandescent light bulbs and infrared lamps, Ac 5b dc 6 leds, Ac1 lca heating elements
Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay standards CE, EAC, UKCA, UL cURus
Relay switching voltage 0–110 VDC, 110 VDC
Min thyristor rating per phase (A) 100 150 (Min thyristor rating per phase (A))
Relay enclosure Hockey puck
Relay function Dc on off
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 100 150 (Relay max switching current per phase 40c a)
Relay number of poles Single phase
Relay output protection type Reverse diode
Relay terminals Screws
Relay type AC DC DC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.1167 kg
