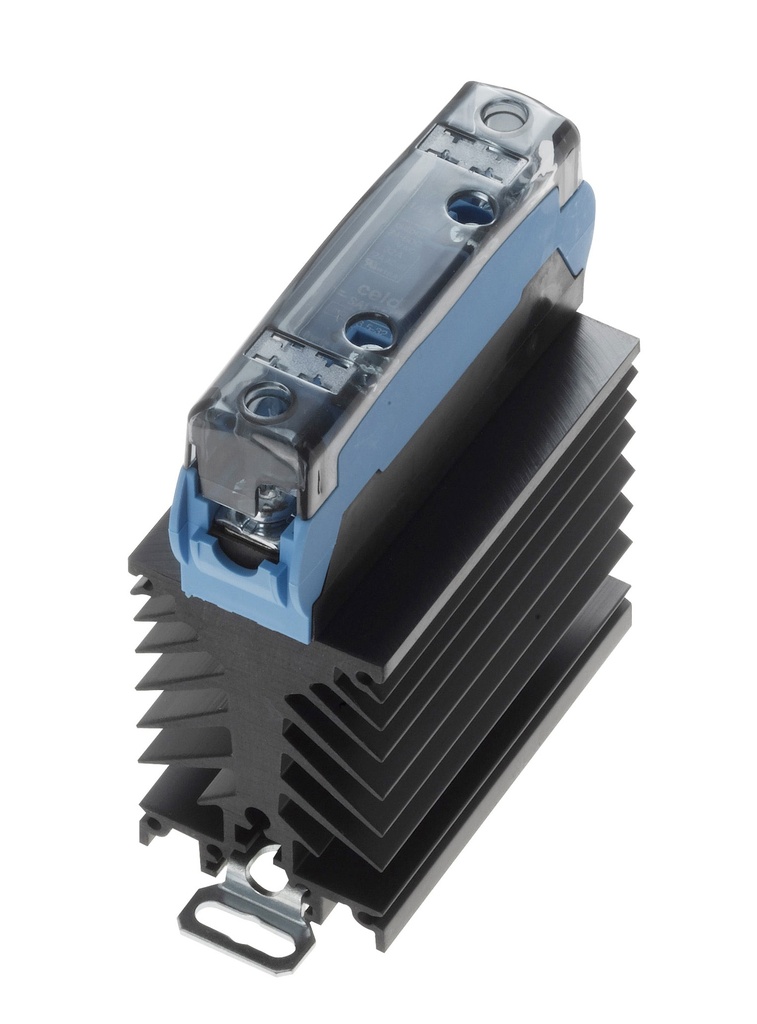

SAM943460 väikese vooluga ühefaasiline staatiline relee nullpunktilülitamise ja jahutusradiaatoriga (28A) pakub kompaktset lahendust väikeste voolude ( kuni 28A AC-1) juhtimiseks madalamas pingevahemikus (12-280VAC). See relee on integreeritud jahutusradiaatoriga pidevaks tööks ja DIN-siini kinnitusega lihtsaks paigaldamiseks. Ideaalne tööstusautomatiseerimiseks, hoonete automatiseerimiseks, mõõteriistade toiteks ja muuks.
Specifications:
Thyristor Rating: Equivalent to 35A (Suitable for loads up to 28A AC-1)
Max. Switching Current (A): 28A AC-1 @ 40°C (de-rating required for higher temperatures or other load types)
Type of Mounting: DIN Rail Mount
Number of Poles: 1 (Single phase)
Function: AC On/Off (Zero-Cross Switching)
Switching Voltage Rate: 12-280VAC (Lower AC Range)
Control Voltage Rate: 3-32VDC (Wider Control Voltage Range)
Standards: CE, CSA, EAC, UKCA, UL (cURus), UL (cULus with SCCR 100kA), VDE
Features:
Low Current AC Output: 28A AC-1 @ 40°C (Solid State Contactor Technology) - Ideal for low power AC loads
Lower AC Switching Voltage Range: 12-280VAC
Wider Control Voltage Range: 3-32VDC (For increased compatibility)
Zero-Cross Switching - Minimizes Electrical Noise and Transients
Integrated Heatsink - Included for Efficient Heat Dissipation (Continuous Operation)
Screw Terminals for Secure Connections
LED Indicator for Status Indication
Suitable for AC-1 Loads (Resistive Loads): Heating Elements, Lamps
DIN Rail Mountable - Easy Installation in Control Panels
Series: SAL9-SAM9
Applications:
Industrial Automation Systems (Control of Low Power Sensors and Devices)
Building Automation Systems (Lighting Control for Low Power Circuits)
Instrumentation and Sensor Power Control (Precise Control with Wider Voltage Range)
