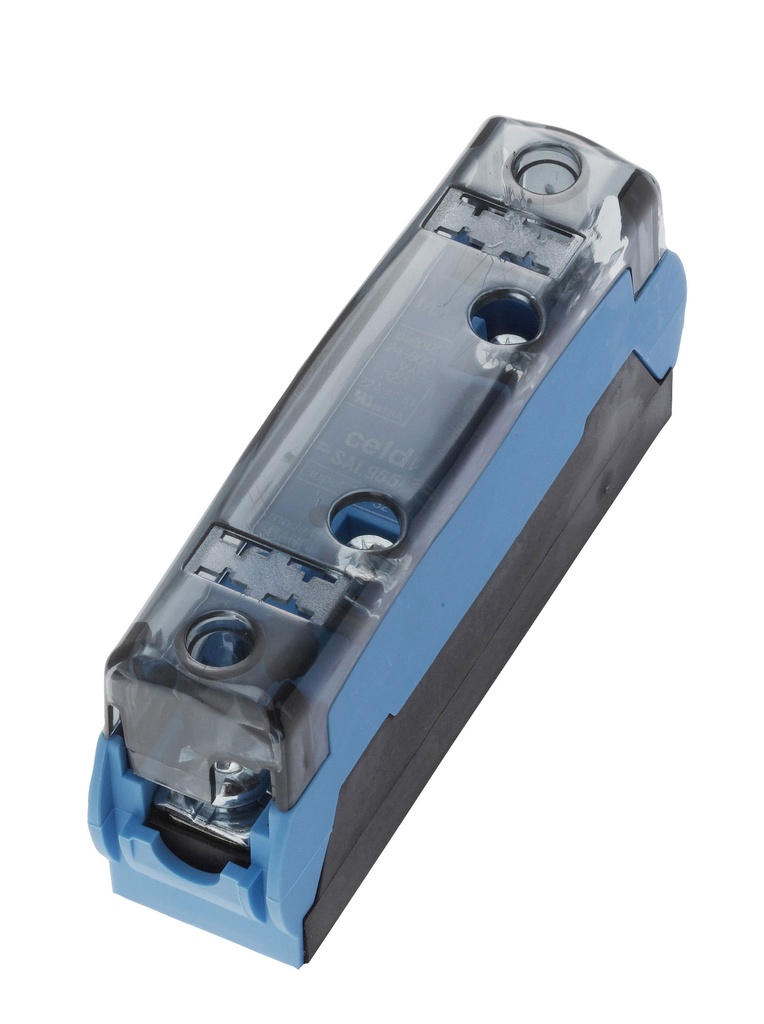

Pooljuhtrelee (SSR) 25A/12-280VAC/sisend 3-32VDC/LED

Pooljuhtrelee (SSR) 25A/12-280VAC/sisend 3-32VDC/LED

SA942460 on usaldusväärne ühefaasiline pooljuhtrelee (SSR), mis on mõeldud otsekinnituseks kruvidega ja tõhusaks kuni 25A madalama pingega vahelduvvoolu koormuse lülitamiseks. Nullpunktilülitamisega pakub see ohutut ja täpset juhtimist rakendustes, kus vahelduvvoolu pinge on vahemikus 12VAC ja 280VAC, näiteks kütteseadmetes ja valgustussüsteemides. Palun pange tähele, et selle SSR-i jaoks on vajalik jahuti.
Technical Specifications:
Thyristor Rating: 25A
Max. Switching Current: 25A AC-1 @ 40°C
Type of Mounting: Screw mounting
Number of Poles: 1 (Single Phase)
Function: AC On/Off Zero-Cross
Switching Voltage Range: 12-280VAC
Control Voltage Range: 3-32VDC

Standards: CE, CSA, EAC, UKCA, UL (cURus), VDE

Features:
Type of Relay: AC
Series: SA9
Heatsink Required: YES (not included)
Terminals (Power): Screws
Housing Type: Low profile

Application: (AC-1 / LC A) Heating Elements, Lighting Systems (within specified ratings)
59,74 € 59,74 € (ilma km-ta)

  • Min thyristor rating per phase (A)
  • Relay control voltage nominal
  • Relay enclosure
  • Relay function
  • Relay heatsink
  • Relay max switching current per phase 40c a
  • Relay number of poles
  • Relay standards
  • Relay switching voltage
  • Relay terminals
  • Relay type AC DC
  • Relay type of mounting
  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
CC_Mono TOR.pdf FT_SA942460.pdf IS_SA.pdf

Manufacturer Part Number: SA942460
Tootekood: EE-100-187-865

Spetsifikatsioon

Relay control voltage nominal 24 VDC, 5/12/24 VDC
Relay standards CE, CSA, EAC, UKCA, UL cURus, VDE
Relay switching voltage 110/120 VAC, 230 VAC
Min thyristor rating per phase (A) 20 29 (Min thyristor rating per phase (A))
Relay enclosure Low profile
Relay function Ac on off zero crossing
Relay heatsink No (Relay heatsink)
Relay max switching current per phase 40c a 20 29 (Relay max switching current per phase 40c a)
Relay number of poles Single phase
Relay terminals Screws
Relay type AC DC AC
Relay type of mounting Screw (Relay type of mounting)
Weight 0.0794 kg
