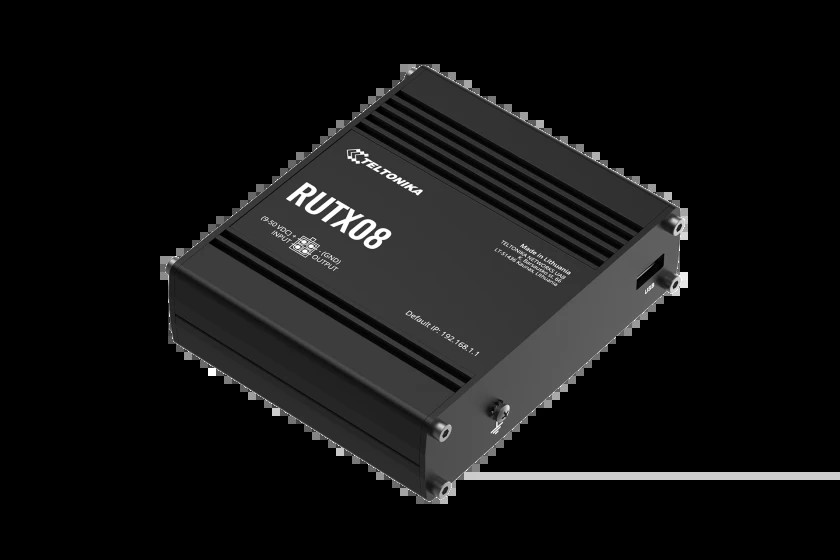

Vastupidav ja võimas Ethernet-to-Ethernet ruuter täiustatud OpenWrt-põhise RutOSi ning sisseehitatud tulemüüri ja VPN-funktsiooniga. Gigabit Ethernet-liidesed, vastupidav alumiiniumist korpus ja tööstuslike võrguprotokollide tugi teevad RUTX08-st täiusliku valiku professionaalseteks rakendusteks.
See vastupidav tööstusruuter on varustatud 4 x Gigabit Ethernet-porti, neljatuumalise protsessori ja 256 MB RAM-iga. Need võimsad tehnilised näitajad koos RutOSi tarkvara põhifunktsioonidega, nagu mitu VPN-teenust, täiustatud tulemüür ja RMS-tugi, muudavad selle seadme suurepäraseks tööstuslikuks tegijaks, kus ei ole vaja mobiili- või WiFi-ühendust.
4x-gigabit
Gigabit Ethernet kiirusega kuni 1000 Mbit/s
rms
Teltonika kaugjuhtimissüsteemiga ühilduv
arm-protsessor
Neljatuumaline ARM Cortex A7 protsessor, 717 MHz
|
ETHERNET |
|
WAN |
1 x WAN port (can be configured to LAN) 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
LAN |
3 x LAN ports, 10/100/1000 Mbps, comply IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
|
NETWORK |
|
Routing |
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2) |
|
Network protocols |
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, MQTT |
|
VoIP passthrough support |
H.232 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets |
|
Connection monitoring |
Ping Reboot, Periodic Reboot, LCP and ICMP for link inspection |
|
Firewall |
Port forward, traffic rules, custom rules |
|
DHCP |
Static and dynamic IP allocation, DHCP Relayd |
|
QoS |
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e |
|
DDNS |
Supported >25 service providers, others can be configured manually |
|
Network backup |
VRRP |
|
SSHFS (optional) |
Possibility to mount remote file system via SSH protocol (not available in standard FW) |
|
SECURITY |
|
Authetication |
Pre-shared key, digital certificates, X.509 certificates |
|
Firewall |
Pre-configured firewall rules can be enabled via web-ui, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T |
|
Attack prevention |
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
|
VLAN |
Port based and tag based VLAN separation |
|
WEB filter |
Blacklist for blocking out unwanted websites, whitelist for specifying allowed sites only |
|
Access control |
Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
|
VPN |
|
OpenVPN |
Multiple clients and server can be running simultaneously, 12 encryption methods |
|
OpenVPN Encryption |
DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
|
IPsec |
IKEv1, IKEv2, supports up to 4 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
|
GRE |
GRE tunnel |
|
PPTP, L2TP |
Client/Server services can run simultaneously |
|
Stunnel |
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the programs' code |
|
MONITORING & MANAGEMENT |
|
WEB UI |
HTTP, status, configuration, FW update, CLI ,troubleshoot, event log, system log, kernel log |
|
FOTA |
Firmware update from server, automatic notification |
|
SSH |
SSH (v1, v2) |
|
TR-069 |
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVsystems |
|
MQTT |
MQTT Broker, MQTT publisher |
|
WEB UI |
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
|
JSON-RPC |
Management API over HTTP/HTTPS |
|
MODBUS |
MODBUS TCP status/control |
|
RMS |
Teltonika Remote Management System (RMS) |
|
SYSTEM CHARACTERISTICS |
|
CPU |
Quad-core ARM Cortex A7, 717 MHz |
|
RAM |
256 MB, DDR2 |
|
FLASH memory |
256 MB SPI Flash |
|
FIRMWARE / CONFIGURATION |
|
WEB UI |
Update FW from file, check FW on server, configuration profiles, configuration backup |
|
FOTA |
Update FW/configuration from server |
|
RMS |
Update FW/configuration for multiple devices |
|
Keep settings |
Update FW without losing current configuration |
|
FIRMWARE CUSTOMIZATION |
|
Operating system |
RutOS (OpenWrt based Linux OS) |
|
Supported languages |
Busybox shell, Lua, C, C++ |
|
Development tools |
SDK package with built environment provided |
|
USB |
|
Data rate |
USB 2.0 |
|
Applications |
Samba share, custom scripts |
|
External devices |
Possibility to connect external HDD, flash drive, additional modem, printer |
|
Storage formats |
FAT, FAT32, NTFS |
|
POWER |
|
Connector |
4 pin industrial DC power socket |
|
Input voltage range |
9 - 50 VDC, reverse polarity protection, voltage surge/transient protection |
|
PoE (passive) |
Passive PoE. Possibility to power up through LAN port, not compatible with IEEE802.3af and 802.3at standards |
|
Power consumption |
11 W Max |
|

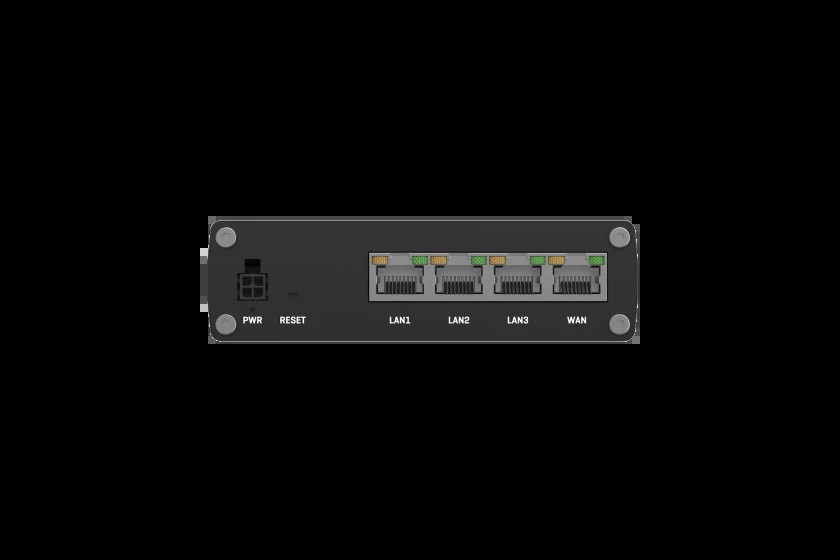

PHYSICAL INTERFACES (PORTS, LEDS, BUTTONS) |
|
Ethernet |
4 x RJ45 ports, 10/100/1000 Mbps |
|
Status LEDs |
8 x LAN status LEDs, 1 x Power LED |
|
Power |
4 pin industrial DC power socket |
|
USB |
USB A port for external devices |
|
Reset |
Reset/restore to default button |
|
PHYSICAL SPECIFICATION |
|
Casing material |
Full aluminium housing |
|
Dimensions |
115 mm x 95 mm x 32 mm (H x W x D) |
|
Weight |
357 g |
|
Mounting options |
DIN rail (can be mounted on two sides), flat surface placement |
|
OPERATING ENVIRONMENT |
|
Operating temperature |
-40 C to 75 C |
|
Operating humidity |
10% to 90% non-condensing |
|
Ingress Protection Rating |
IP30 |
