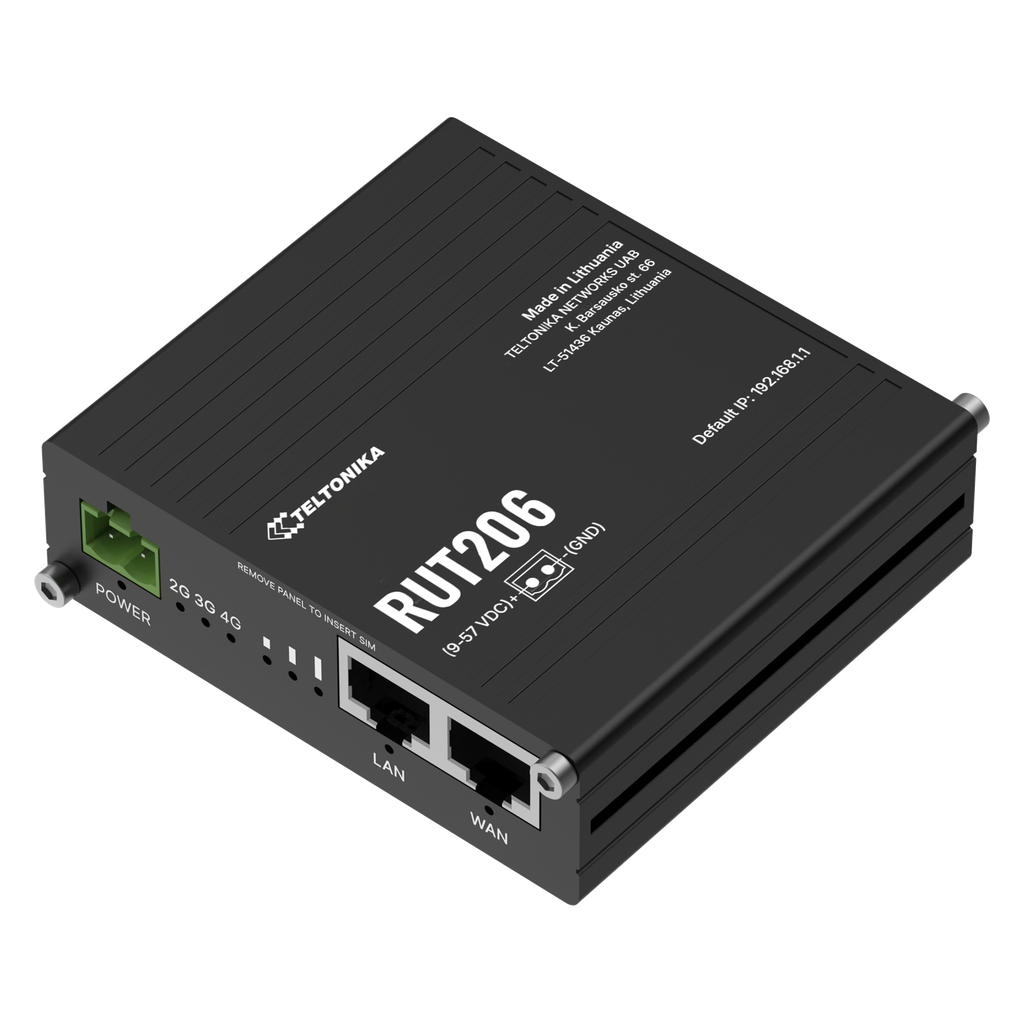

RUT206 on kompaktne tööstuslik ruuter, mis toetab RS232 ja RS485 jadaliideseid ning aktiivseid ja passiivseid PoE-sisendeid. Tänu vastupidavale konstruktsioonile, 2-poolusele toitesisendile ja microSD-pesa kaudu laiendatavale andmesalvestusele on see ideaalne valik mitmesuguste asjade interneti- ja M2M-rakenduste jaoks. See 4G Cat 4 ruuter on varustatud avatud lähtekoodiga RutOS-tarkvaraga ja toetab selliseid peamisi tööstuslikke protokolle nagu Modbus, DNP3 ja DLMS.
ÜHENDUS
4G Cat 4, 3G, 2G
JADALIIDESED
RS232 ja RS485 jadakommunikatsiooniks
2-POOLNE TOITESISEND
Lihtne ja sobib tööstuslike rakenduste jaoks
PoE
Aktiivsed ja passiivsed PoE sisendid
Mobile
- Mobile module
4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
- 3GPP Release
Release 9
- SIM switch
2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
- Status
IMSI, ICCID, operator, operator state, data connection state, network type, bandwidth, connected band, signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, data sent/received, LAC, TAC, cell ID, ARFCN, UARFCN, EARFCN, MCC, and MNC
- SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
- USSD
Supports sending and reading Unstructured Supplementary Service Data messages
- Black/White list
Operator black/white list (by country or separate operators)
- Band management
Band lock, Used band status display
- SIM idle protection service
When working with devices with two SIM slots, the one not currently in use will remain idle until the device switches to it, meaning that no data is used on the card until then
- SIM PIN code management
SIM PIN code management enables setting, changing, or disabling the SIM card's PIN
- APN
Auto APN
- Bridge
Direct connection (bridge) between mobile ISP and device on LAN
- Passthrough
Router assigns its mobile WAN IP address to another device on LAN
Wireless
- Wireless mode
802.11b/g/n (Wi-Fi 4), Access Point (AP), Station (STA)
- Wi-Fi security
WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)
- SSID/ESSID
SSID stealth mode and access control based on MAC address
- Wi-Fi users
Up to 50 simultaneous connections
- Wireless Connectivity Features
Fast roaming (802.11r), Relayd, BSS transition management (802.11v), radio resource measurement (802.11k)
- Wireless MAC filter
Allowlist, blocklist
- Wireless QR code generator
Once scanned, a user will automatically enter your network without needing to input login information
- TravelMate
Forward Wi-Fi hotspot landing page to a subsequent connected device
Ethernet
- WAN
1 x WAN port 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
- LAN
1 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Network
- Routing
Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing
- Network protocols
TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL v3, TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake on Lan (WOL), VXLAN
- VoIP passthrough support
H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets
- Connection monitoring
Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
- Firewall
Port forward, traffic rules, custom rules, TTL target customisation
- Firewall status page
View all your Firewall statistics, rules, and rule counters
- Ports management
View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on
- Network topology
Visual representation of your network, showing which devices are connected to which other devices
- DHCP
Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards
- QoS / Smart Queue Management (SQM)
Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e
- DDNS
Supported >25 service providers, others can be configured manually
- DNS over HTTPS
DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS
- Network backup
Wi-Fi WAN, Mobile, VRRP, Wired options, each of which can be used as an automatic Failover
- Load balancing
Balance Internet traffic over multiple WAN connections
- Hotspot
Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes
- Hotspot 2.0
Hotspot 2.0 is a Wi-Fi standard that enables seamless, secure, and automatic connection to trusted wireless networks
- SSHFS
Possibility to mount remote file system via SSH protocol
- Traffic Management
Real-time monitoring, wireless signal charts, traffic usage history
Security
- Authentication
Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator
- Firewall
Preconfigured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI, DMZ, NAT, NAT-T, NAT64
- Attack prevention
DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)
- VLAN
Port and tag-based VLAN separation
- Mobile quota control
Mobile data limit, customizable period, start time, warning limit, phone number
- WEB filter
Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only
- Access control
Flexible access control of SSH, Web interface, CLI and Telnet
- SSL certificate generation
Let's Encrypt and SCEP certificate generation methods
- 802.1x
Port-based network access control server
VPN
- OpenVPN
Multiple clients and a server can run simultaneously, 27 encryption methods
- OpenVPN Encryption
DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192,
BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256
- IPsec
XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16)
- GRE
GRE tunnel, GRE tunnel over IPsec support
- PPTP, L2TP
Client/Server instances can run simultaneously, L2TPv3, L2TP over IPsec support
- Stunnel
Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code
- DMVPN
Method of building scalable IPsec VPNs, Phase 2 and Phase 3 and Dual Hub support
- SSTP
SSTP client instance support
- ZeroTier
ZeroTier VPN client support
- WireGuard
WireGuard VPN client and server support
- Tinc
Tinc offers encryption, authentication and compression in it's tunnels. Client and server support.
BACNET
- Supported modes
Router
- Supported connection types
RS485, TCP
OPC UA
- Supported modes
Client, Server
- Supported connection types
TCP
MODBUS
- Supported modes
Server, Client
- Supported connection types
RTU, TCP
- Custom registers
MODBUS TCP custom register block requests, which read/write to a file inside the router, and can be used to extend MODBUS TCP Client functionality
- Supported data formats
8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII
DATA TO SERVER
- Protocol
HTTP(S), MQTT, Azure MQTT
- Data to server
Extract parameters from multiple sources and different protocols, and send them all to a single server; Custom LUA scripting, allowing scripts to utilize the router's Data to server feature
MQTT Gateway
- Modbus MQTT Gateway
Allows sending commands and receiving data from MODBUS Server through MQTT broker
DNP3
- Supported modes
TCP Master, DNP3 Outstation
- Supported connection types
RS232, RS485, TCP
DLMS
- DLMS Support
DLMS - standard protocol for utility meter data exchange
- Supported modes
Client
- Supported connection types
TCP
- COSEM
Allows to scan meter COSEM objects for automatic detection and configuration
API
- Teltonika Networks Web API (beta) support
Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com
Monitoring & Management
- WEB UI
HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
- FOTA
Firmware update from server, automatic notification
- SSH
SSH (v1, v2)
- SMS
SMS status, SMS configuration, send/read SMS via HTTP POST/GET
- Call
Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
- TR-069
OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
- MQTT
MQTT Broker, MQTT publisher
- SNMP
SNMP (v1, v2, v3), SNMP Trap, Brute force protection
- JSON-RPC
Management API over HTTP/HTTPS
- RMS
Teltonika Remote Management System (RMS)
IoT Platforms
- ThingWorx
Allows monitoring of: WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
- Cumulocity - Cloud of Things
Allows monitoring of: Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
- Azure IoT Hub
Can be configured with Data to Server to send all the available parameters to the cloud. Has Direct method support which allows to execute RutOS API calls on the IoT Hub. Also has Plug and Play integration with Device Provisioning Service that allows zero-touch device provisioning to IoT Hubs
- AWS IoT Core
Utility to interact with the AWS cloud platform. Jobs Support: Call the device's API using AWS Jobs functionality
System Characteristics
- CPU
Mediatek, 580 MHz, MIPS 24KEc
- RAM
128 MB, DDR2
- FLASH storage
32 MB, NOR Flash
Firmware / Configuration
- WEB UI
Update FW from file, check FW on server, configuration profiles, configuration backup
- FOTA
Update FW
- RMS
Update FW/configuration for multiple devices at once
- Keep settings
Update FW without losing current configuration
- Factory settings reset
A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration
FIRMWARE CUSTOMISATION
- Operating system
RutOS (OpenWrt based Linux OS)
- Supported languages
Busybox shell, Lua, C, C++
- Development tools
SDK package with build environment provided
- GPL customization
You can create your own custom, branded firmware and web page application by changing colours, logos, and other elements in our firmware to fit your or your clients’ needs
- Package Manager
The Package Manager is a service used to install additional software on the device
Serial
- RS232
RS232 interface without flow control signals
- RS485
Half duplex (2-wire) RS485 interface
Input / Output
SD CARD
- Physical size
Micro SD (internal)
- Applications
Samba share
- Capacity
Up to 2 TB
- Storage Formats
FAT32, NTFS, ext2, ext3, ext4
POE IN
- PoE ports
1 x PoE In
- PoE standards
Active PoE input 802.3af Class 0 (12.94 W) on LAN port
Power
- Connector
2-pin industrial DC power socket
- Input voltage range
9 - 57 VDC, reverse polarity protection, surge protection >58V @10us min
- PoE (passive)
Passive PoE over spare pairs 4,5 (+) / 7,8 (-). Possibility to power up through LAN port, passive PoE voltage: 16 - 57 VDC
- Power consumption
Idle: < 2 W, Max: < 3.5 W

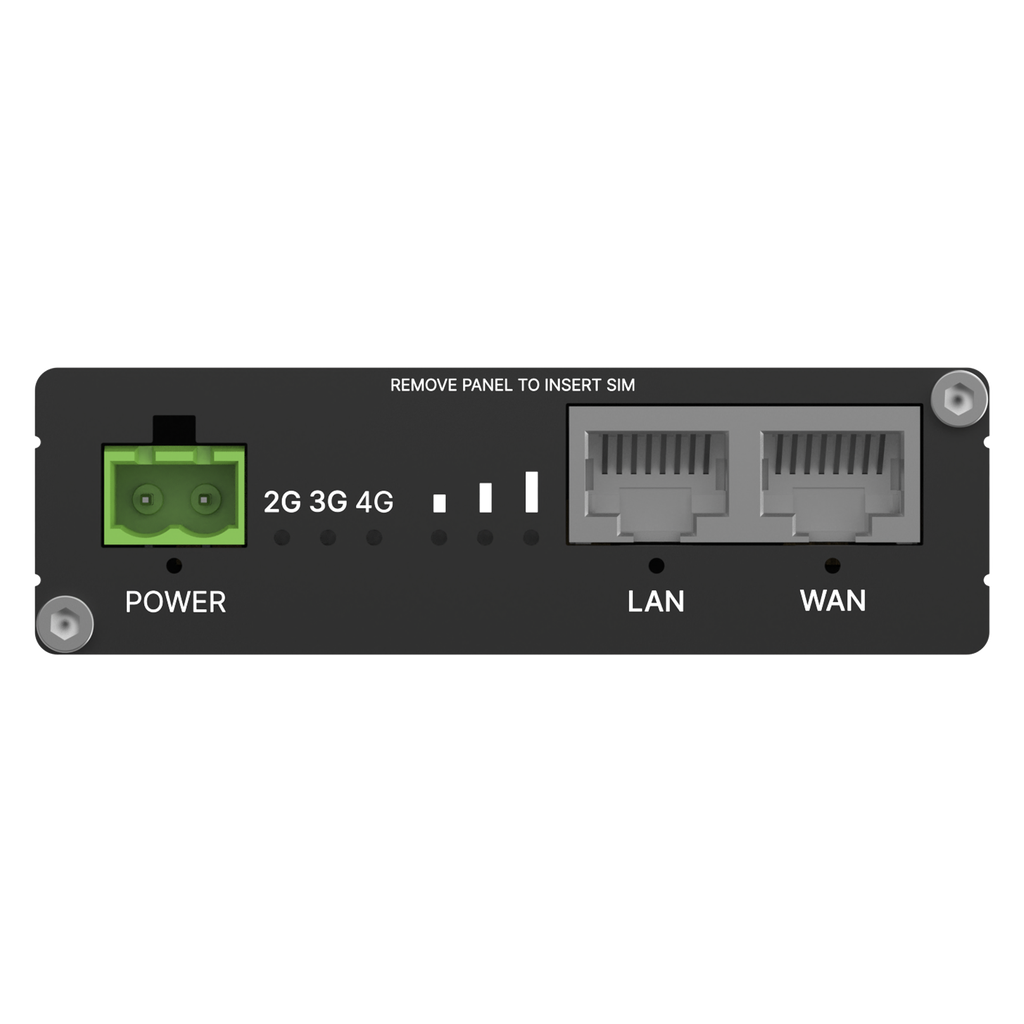

Physical Interfaces
- Ethernet
2 x RJ45 ports, 10/100 Mbps
- Status LEDs
3 x Connection type status LEDs, 3 x Connection strength LEDs, 2 x LAN status LEDs, 1 x Power LED
- SIM
2 x SIM slots (Mini SIM – 2FF), 1.8 V/3 V, double stacked SIM tray
- Power
1 x 2-pin power connector

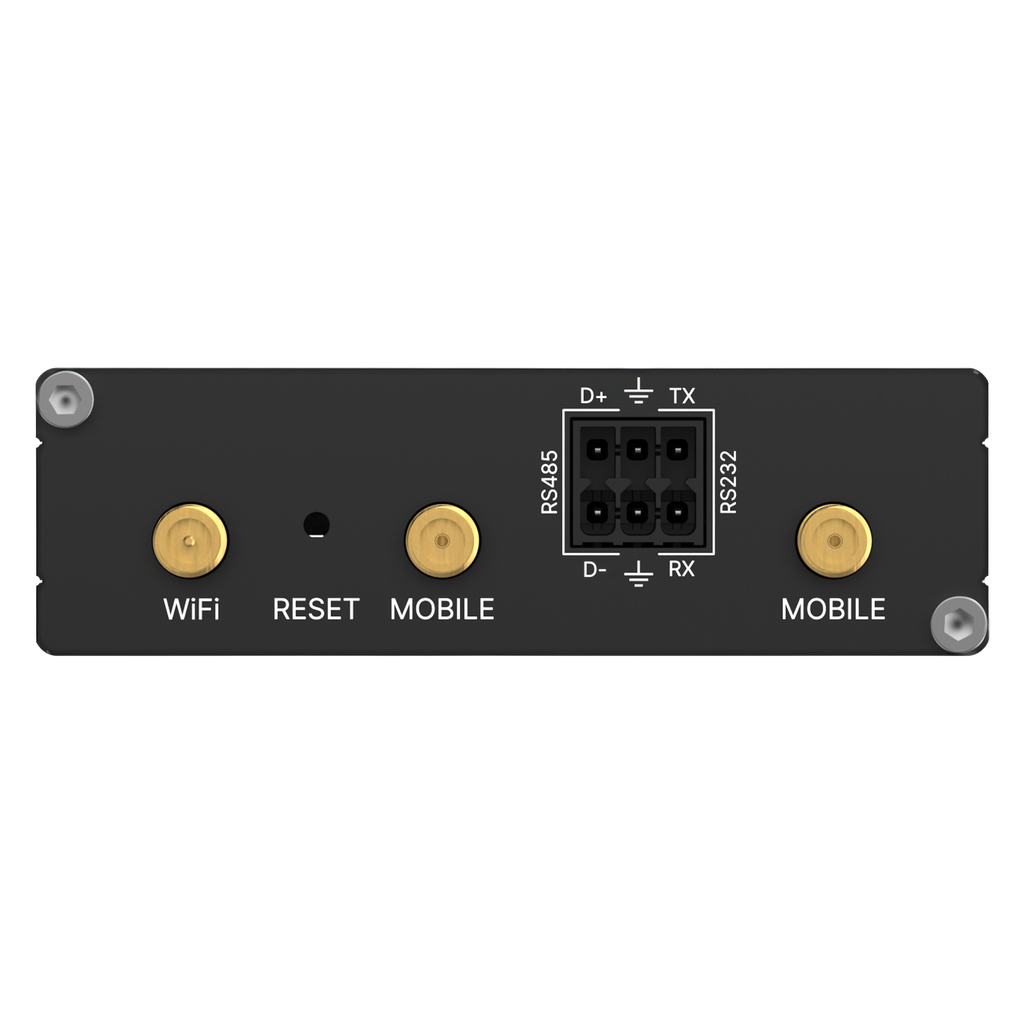

- Antennas
2 x SMA for Mobile, 1 x RP-SMA for Wi-Fi
- RS232, RS485
1 x 6-pin terminal block
- Reset
Reboot/User default reset/Factory reset button
Physical Specification
- Casing material
Anodized aluminum housing and panels
- Dimensions (W x H x D)
83 x 25 x 83 mm
- Weight
132 g
- Mounting options
DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment
- Operating temperature
-40 °C to 75 °C
- Operating humidity
10% to 90% non-condensing
- Ingress Protection Rating
IP30
