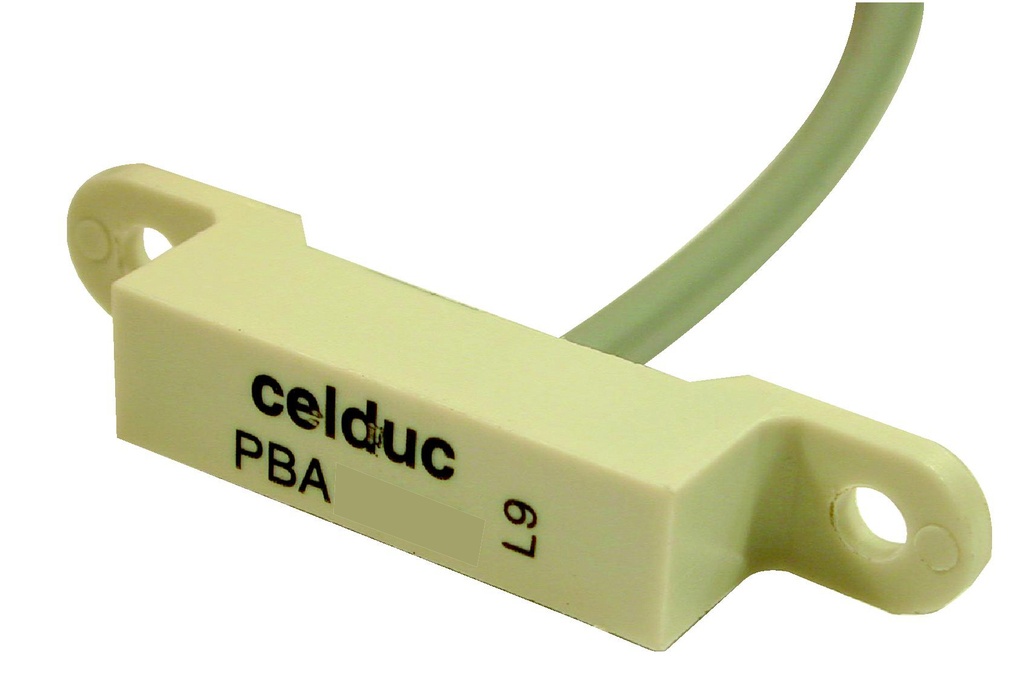

PBA10010 on unikaalne kruvikinnitusega induktiivandur normaalselt avatud (NO) kontakti ja integreeritud ohutusloengu funktsiooniga, mis sobib ideaalselt tööstuslikeks rakendusteks, kus on vaja objektide tuvastamist, juhtimist ja täiustatud ohutusmeetmeid. Pikendatud 8-meetrine kaabel võimaldab paindliku paigutuse jaoks erakordset ulatust. See andur pakub tasakaalu väikese energiatarbe ja mõõdukate lülitusvõimete vahel, pakkudes samas väljundit oluliste juhtimisrakenduste jaoks.
Technical Specifications:
Max Switching Power: 12VA/W (suitable for low-power applications)
Standards: CE, UKCA
Features:
Detection type: Clearance, Presence, Speed (refer to datasheet for details)
Normally Open (NO) Contact for Simple Control Applications (up to 250VDC, 0.4A)
Integrated Safety Loop Output for Enhanced Machine Safety (refer to datasheet for details)
Screw-Mount Design for Secure Installation in Various Locations
Compact Plastic Housing for Space-Saving Integration
Extended 8-meter Cable for Long-Range Applications
13mm Sensing Distance (with P4160000 target, refer to datasheet for specific targets)
Max Switching Voltage: 250VDC (suitable for a wide range of DC control circuits)
Max Switching Current: 0.4A (suitable for moderate-power applications)
Sensor Series: PB
Application: Long-Range Clearance, Presence, Speed Detection with Safety Loop (conveyor systems, material handling, safety interlocking, etc.)
