- Ühendab jadaseadmed ja Ethernet-seadmed IEEE 802.11a/b/g/n võrguga
- Veebipõhine konfiguratsioon sisseehitatud Etherneti või WLANi abil
- Turvaline käivitamine, mis lubab seadmetel käivitada ainult Moxa poolt heakskiidetud püsivara
- Kaugkonfiguratsioon HTTPS (TLS 1.3) ja SSH abil
- Turvaline andmetele juurdepääs WEP, WPA ja WPA2 abil
- WPA/WPA2 Enterprise IEEE 802.1X/RADIUS (EAP-TLS 1.3)
- Kiire rändlus kiireks automaatseks ümberlülitamiseks juurdepääsupunktide vahel
- Offline-portide puhverdamise ja jadadate logi
- Täiustatud ülepingekaitse jadaportidele, LAN-ile ja toitele
- Kaks toite sisendit (1 kruviga toitepistik, 1 klemmplokk)

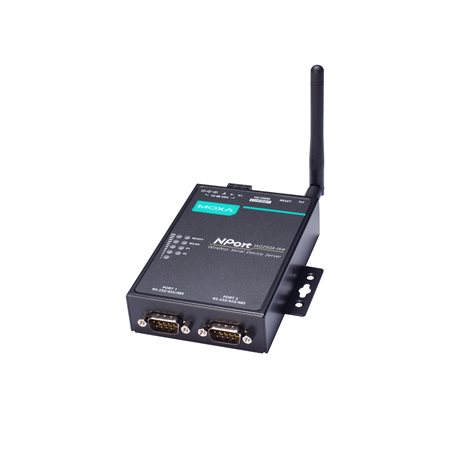

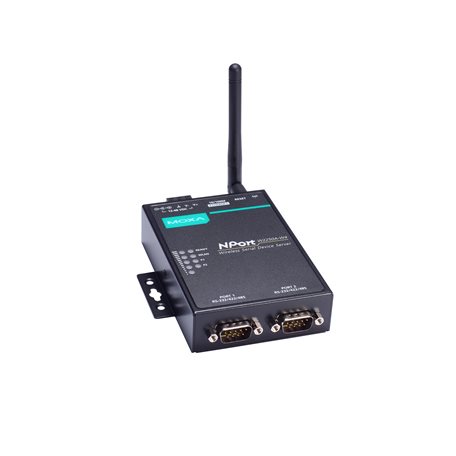

NPort® W2150A-W4 ja W2250A-W4 on ideaalne valik jadaseadmete ja Ethernet-seadmete, nagu PLC-d, arvestid ja andurid, ühendamiseks traadita LAN-võrguga. Teie side tarkvara saab traadita LAN-võrgu kaudu juurdepääsu jadaseadmetele kõikjalt. Lisaks vajavad traadita seadmeserverid vähem kaableid ja sobivad ideaalselt rakendustesse, kus on keerulised juhtmestiku olud. Infrastruktuurirežiimis saavad NPort® W2150A-W4 ja NPort® W2250A-W4 ühenduda kontoris ja tehases asuvate Wi-Fi võrkudega, võimaldades kasutajatel liikuda või rännata mitme AP (juurdepääsupunkti) vahel, ning pakuvad suurepärase lahenduse seadmetele, mida tihti ühest kohast teise viiakse.
10/100BaseT(X) Ports (RJ45 connector)
1
Magnetic Isolation Protection
1.5 kV (built-in)
Standards
IEEE 802.3 for 10BaseT
IEEE 802.3u for 100BaseT(X)
Ethernet Software Features
Configuration Options
Web Console (HTTP/HTTPS)
Windows Utility
Management
DHCP Option 82
HTTP
IPv4
SMTP
SNMPv1/v2c/v3
Syslog
Telnet
Web Console
Windows Real COM Drivers
Windows 11/10/8.1/8/7/Vista/XP/ME/98/95
Windows Server 2022/2019/2016/2012 R2/2012/2008 R2/2008/2003/2000/NT
Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
Kernel Versions: 6.x, 5.x, 4.x, 3.x, 2.6.x and 2.4.x
Fixed TTY Drivers
macOS Versions: 10.12 to 10.15, 11.x
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Arm®-based Platform Support
Linux kernel 5.x/4.x
Virtual Machine
VMWare ESXi (Windows 11/10)
VMware Fusion (Windows on macOS 10.12 to 11.x)
Parallels Desktop (Windows on macOS 10.12 to 11.x)
Android API
Android 3.1.x and later
MIB
Device Settings MIB
RFC1213, RFC1317
Security
HTTPS/SSL
User Authentication Management: local database, RADIUS
Secure Protocols: HTTPS (TLSv1.3), SSH, SNMPv3
Cryptography: HMAC, SHA-1, SHA-256, SHA-384, RSA-1024, AES-128, AES-256
Time Management
NTP Client
SNTP Client
WLAN Interface
WLAN Standards
802.11a/b/g/n
Receiver Sensitivity for 802.11a (measured at 5.680 GHz)
Typ. -91 @ 6 Mbps
Typ. -74 @ 54 Mbps
Receiver Sensitivity for 802.11b (measured at 2.437 GHz)
Typ. -92 dBm @ 1 Mbps
Typ. -84 dBm @ 11 Mbps
Receiver Sensitivity for 802.11g (measured at 2.437 GHz)
Typ. -91 dBm @ 6 Mbps
Typ. -73 dBm @ 54 Mbps
Receiver Sensitivity for 802.11n (2.4 GHz; measured at 2.437 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Receiver Sensitivity for 802.11n (5 GHz; measured at 5.680 GHz)
Typ. -89 dBm @ 6.5 Mbps (20 MHz)
Typ. -71 dBm @ 72.2 Mbps (20 MHz)
Typ. -85 dBm @ 13.5 Mbps (40 MHz)
Typ. -67 dBm @ 150 Mbps (40 MHz)
Modulation Type
DSSS
OFDM
Transmission Distance
Up to 100 meters (in open areas)
Transmission Rate
802.11a/g: 54 Mbps
802.11b: 11 Mbps
802.11n: 6.5 to 150 Mbps
Transmitter Power for 802.11b
16±1.5 dBm @ 1 Mbps
16±1.5 dBm @ 11 Mbps
Transmitter Power for 802.11g
16±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11a
15±1.5 dBm @ 6 Mbps
14±1.5 dBm @ 54 Mbps
Transmitter Power for 802.11n (2.4 GHz)
16 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (72.2 MHz)
Transmitter Power for 802.11n (5 GHz)
15 dBm @ 1.5 Mbps (6.5 MHz)
12 dBm @ 1.5 Mbps (150 MHz)
Frequency Band for CN (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.745 to 5.825 GHz (5 channels)
Frequency Band for EU (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for JP (20 MHz operating channels)
2.412 to 2.472 GHz (13 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
Frequency Band for US (20 MHz operating channels)
2.412 to 2.462 GHz (11 channels)
5.180 to 5.240 GHz (4 channels)
5.260 to 5.320 GHz (4 channels)
5.500 to 5.700 GHz (11 channels)
5.745 to 5.825 GHz (5 channels)
Wireless Security
WEP encryption (64-bit and 128-bit)
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WPA/WPA2-Personal
WLAN Modes
Infrastructure mode
Antenna Characteristics
Connector
RP-SMA (male)
Antenna Type
Omni-directional
Security Functions
Authentication
Local database
RADIUS
Encryption
AES-128
AES-256
HMAC
RSA-1024
SHA-1
SHA-256
SHA-384
Security Protocols
SNMPv3
SSHv2
HTTPS (TLS 1.3)
Wireless Security
WEP
WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS support EAP-TLS 1.3)
WPA/WPA2-Personal
Hardware-based Security
Secure Boot
Serial Interface
Connector
DB9 male
No. of Ports
NPort W2150A-W4/W2150A-W4-T: 1
NPort W2250A-W4/W2250A-W4-T: 2
Serial Standards
RS-232
RS-422
RS-485
Operation Modes
Real COM mode
TCP Server mode
TCP Client mode
UDP mode
RFC2217 mode
Pair Connection mode
Ethernet Modem mode
Disabled
Baudrate
300 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None
RTS/CTS
XON/XOFF
RS-485 Data Direction Control
ADDC® (automatic data direction control)
Pull High/Low Resistor for RS-485
1 kilo-ohm, 150 kilo-ohms
Terminator for RS-485
120 ohms
Surge
1 kV
Physical Characteristics
Housing
Metal
Installation
Desktop
DIN-rail mounting (with optional kit)
Wall mounting
Dimensions (with ears, without antenna)
100 x 111 x 26 mm (3.94 x 4.37 x 1.02 in)
Dimensions (without ears or antenna)
77 x 111 x 26 mm (3.03 x 4.37 x 1.02 in)
Weight
NPort W2150A-W4/W2150A-W4-T: 185 g (0.41 lb)
NPort W2250A-W4/W2250A-W4-T: 191 g (0.42 lb)
Antenna Length
108 mm (4.25 in)
Environmental Limits
Operating Temperature
Standard Models: 0 to 55°C (32 to 131°F)
Wide Temp. Models: -40 to 75°C (-40 to 167°F)
Storage Temperature (package included)
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Power Parameters
Input Current
NPort W2150A-W4/W2150A-W4-T: 429 mA @ 12 VDC
NPort W2250A-W4/W2250A-W4-T: 455 mA @ 12 VDC
Input Voltage
12 to 48 VDC
Standards and Certifications
EMC
EN 55032/35
EMI
CISPR 32, FCC Part 15B Class A
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV
IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11
Radio Frequency
CE (ETSI EN 301 893, ETSI EN 300 328, ETSI EN 301489-1/-17), MIC, KC, RCM, WPC
Safety
UL 62368-1
IEC 62368-1
Reliability
Alert Tools
RTC (real-time clock)
Automatic Reboot Trigger
Built-in WDT
MTBF
Time
NPort W2150A-W4/W2150A-W4-T: 1,356,464 hrs
NPort W2250A-W4/W2250A-W4-T: 1,187,539 hrs
Standards
Telcordia SR332
Warranty
Warranty Period
5 years
