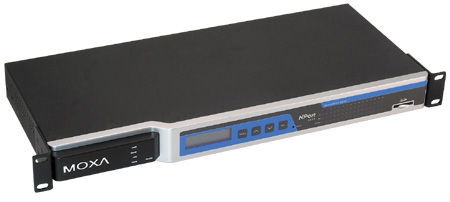

Moxa's terminal servers are equipped with the specialized functions and security features needed to establish reliable terminal connections to a network, and can connect various devices such as terminals, modems, data switches, mainframe computers, and POS devices to make them available to network hosts and process.
Memory
SD Slot
-
Up to 32 GB (SD 2.0 compatible)
Input/Output Interface
Alarm Contact Channels
-
Resistive load: 1 A @ 24 VDC
Ethernet Interface
10/100BaseT(X) Ports (RJ45 connector)
-
1
Auto MDI/MDI-X connection
Magnetic Isolation Protection
Optical Fiber
Optical Fiber
Ethernet Software Features
Configuration Options
-
Web Console (HTTP/HTTPS), Serial Console, Telnet/SSH Console, Windows Utility
Management
-
ARP, BOOTP, DHCP Client, DNS, HTTP, ICMP, IPv4/IPv6, PPPOE, SMTP, SNMPv1/v2c/v3, SNTP, TCP/IP, Telnet, UDP
Windows Real COM Drivers
-
Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Linux Real TTY Drivers
-
Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
Fixed TTY Drivers
-
SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6.x, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Android API
MIB
Time Management
Unicast Routing
Authentication
-
Local Account Accessibility, RADIUS, TACACS+
Serial Interface
Connector
No. of Ports
Serial Standards
Secure Operation Modes
-
Reverse SSH, Secure Pair Connection, Secure Real COM, Secure TCP Client, Secure TCP Server, SSH
Standard Operation Modes
-
Disabled, Ethernet Modem, Pair Connection, PPP, Printer, Real COM, Reverse Telnet, RFC2217, TCP Client, TCP Server, Terminal, UDP
Baudrate
-
50 bps to 921.6 kbps (supports non-standard baudrates)
Console Port
-
RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
Data Bits
Stop Bits
Parity
-
None, Even, Odd, Space, Mark
Flow Control
-
RTS/CTS, DTR/DSR, XON/XOFF
Serial Signals
RS-232
-
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
Power Parameters
Input Current
Input Voltage
-
100 to 240 VAC, 47 to 63 Hz
Reliability
Automatic Reboot Trigger
Alert Tools
-
Built-in buzzer and RTC (real-time clock)
Physical Characteristics
Housing
Dimensions (with ears)
-
480 x 195 x 44 mm (18.9 x 7.68 x 1.73 in)
Dimensions (without ears)
-
440 x 195 x 44 mm (17.32 x 7.68 x 1.73 in)
Weight
Interactive Interface
-
LCD panel display
Push buttons for configuration
Installation
Environmental Limits
Operating Temperature
Storage Temperature (package included)
-
-40 to 75°C (-40 to 167°F)
Ambient Relative Humidity
-
5 to 95% (non-condensing)
Standards and Certifications
EMC
EMI
-
CISPR 32, FCC Part 15B Class A
EMS
-
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
IEC 61000-4-8 PFMF
IEC 61000-4-11 DIPs
Safety
Traffic Control
Vibration
Freefall
MTBF
Time
Standards
-
Telcordia (Bellcore) Standard
