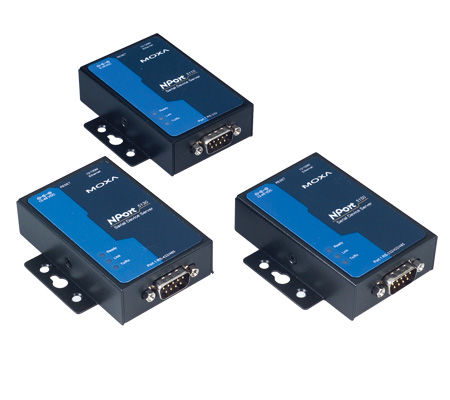

RS-232 server, 1 port, 0 kuni 55°C

RS-232 server, 1 port, 0 kuni 55°C

Our NPort device servers make your serial devices network-ready in an instant. Their compact size makes them ideal for connecting devices such as card readers and payment terminals to an IP-based Ethernet LAN.
Ethernet Interface

  • 10/100BaseT(X) Ports (RJ45 connector)

    • 1

  • Magnetic Isolation Protection

    • 1.5 kV (built-in)
Ethernet Software Features

  • Configuration Options

    • Serial Console

  • Management

    • DHCP Client, IPv4, SNTP, SMTP, SNMPv1, Telnet, DNS, HTTP, ARP, BOOTP, UDP, TCP/IP, ICMP

  • Windows Real COM Drivers

    • Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded

  • Linux Real TTY Drivers

    • Kernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x

  • Fixed TTY Drivers

    • SCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X

  • Android API

    • Android 3.1.x and later

  • MIB

    • RFC1213, RFC1317
Serial Interface

  • Connector

    • DB9 male

  • No. of Ports

    • 1

  • Serial Standards

    • RS-232

  • Operation Modes

    • Disabled, Ethernet Modem, Pair Connection, Real COM, Reverse Telnet, TCP Client, TCP Server, UDP

  • Baudrate

    • 110 bps to 230.4 kbps

  • Data Bits

    • 5, 6, 7, 8

  • Stop Bits

    • 1, 1.5, 2

  • Parity

    • None, Even, Odd, Space, Mark

  • Flow Control

    • RTS/CTS (RS-232 only), DTR/DSR (RS-232 only), XON/XOFF
Serial Signals

  • RS-232

    • TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-4w

    • Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    • Data+, Data-, GND
Power Parameters

  • Input Current

    • 128.7 mA @ 12 VDC

  • Input Voltage

    • 12 to 48 VDC

  • No. of Power Inputs

    • 1

  • Source of Input Power

    • Power input jack
Physical Characteristics

  • Housing

    • Metal

  • Dimensions (with ears)

    • 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)

  • Dimensions (without ears)

    • 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in)

  • Weight

    • 340 g (0.75 lb)

  • Installation

    • Desktop, DIN-rail mounting (with optional kit), Wall mounting
Environmental Limits

  • Operating Temperature

    • 0 to 55°C (32 to 131°F)

  • Storage Temperature (package included)

    • -40 to 75°C (-40 to 167°F)

  • Ambient Relative Humidity

    • 5 to 95% (non-condensing)
Standards and Certifications

  • EMC

    • EN 55032/24

  • EMI

    • CISPR 32, FCC Part 15B Class A

  • EMS

    • IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
      IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
      IEC 61000-4-4 EFT: Power: 1 kV; Signal: 1 kV
      IEC 61000-4-5 Surge: Power: 1 kV
      IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m
      IEC 61000-4-8 PFMF
      IEC 61000-4-11 DIPs

  • Safety

    • UL 60950-1
MTBF

  • Time

    • 3,126,448 hrs

  • Standards

    • Telcordia (Bellcore) Standard TR/SR
Warranty

  • Warranty Period

    • 5 years
143,00 € 143,00 € (ilma km-ta)

  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
moxa-nport-5100-series-datasheet-v1.3.pdf

Manufacturer Part Number: NPort 5110/EU
Tootekood: EE-100-184-364

Spetsifikatsioon

Weight 0.35 kg
