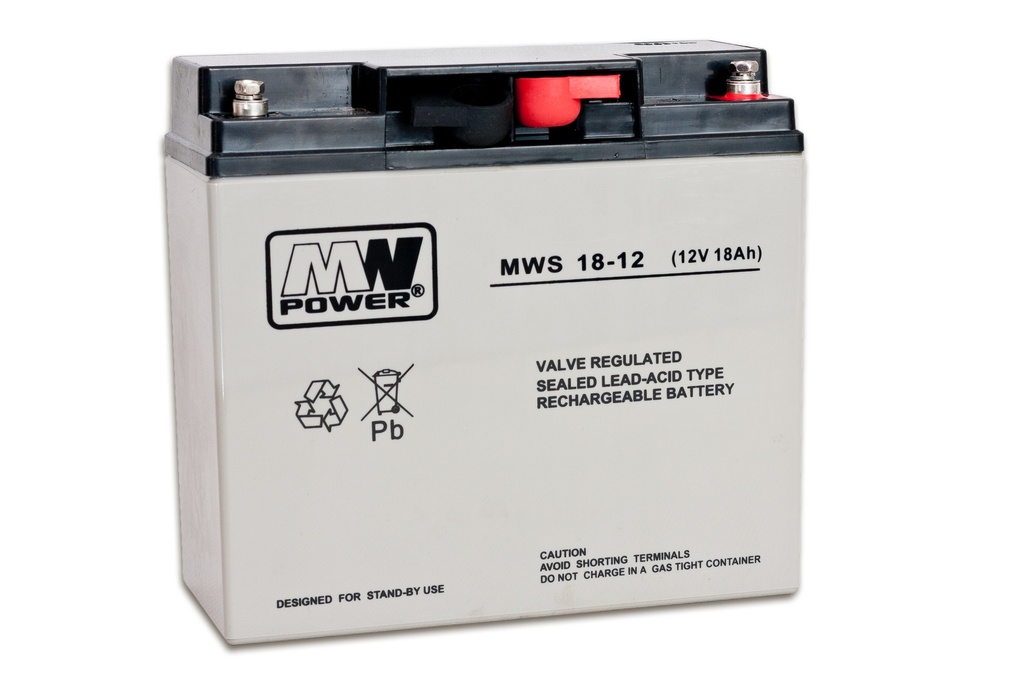

Pliiaku 12V 18AH (181/77/167mm)

Name: [MWS 18-12] Pliiaku 12V 18AH (181/77/167mm)
SKU: EE-100-184-414
Price: 30.17 EUR
Availability: InStock

Batteries MW Power series MW-S are designed

mainly for use in control panels charging systems .

Thanks to profitable quality/ price ralation, the batteries MW-S gained recogniction of many clients. The

batteries of this type can also be used as a source

of charging in portable devices.

Service life is 3-5 years for 20-25 oC .

Nominal voltage 12 V

Nominal capacity 18,0 Ah

Dimensions Lenght 181 mm

Width 77 mm

Height 167 mm

Total height 167 mm

Weight 5,25 kg

Capacity for 25 °

C and cut-off voltage 10.5 V

20h 18,0 Ah

10h 15,8 Ah

5h 13,5 Ah

Internal resistance charged battery 17,0 mΩ

Capacity

for 20oC 100%

for 0oC 85%

for -15oC 65%

Self-discharge

3 m-ths 91%

6 m-ths 82%

12 m-ths 64%

Terminal

Insert M5 (T13)

Bolt and nut M5 (T3) – version F

Charging

Standby use 13,50-13,80V

Cyclic use 14,40-15,00V

Max. charge

current 5,0 A

Max. discharge

current 160 A (5 sec.)

Temperatures of work:

Discharging: -20°C ÷ 50°C

Charging: -20°C ÷ 50°C

Storage: -20°C ÷ 50°C

30,17 € (ilma km-ta)

Lisa ostukorvi

Lisa soovinimekirja

Müügitingimused
Hinnad ei sisalda käibemaksu.

Dokumendid

UPL_MWS_18-12_ang.pdf

Manufacturer Part Number: MWS 18-12
Tootekood: EE-100-184-414

Spetsifikatsioon

Weight

2.47 kg
