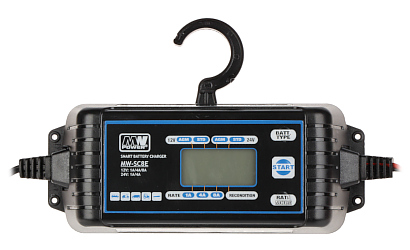

The MW-SC8E Smart Battery Charger is designed for charging lead-acid, gel and AGM batteries used in cars, quads, boats, lawn mowers, motorcycles, mopeds, etc.
Processor control ensures a fully automatic, multi-stage charging process and keeps the battery charged.
12 V : 1.2 Ah ... 240 Ah,
24 V : 1.2 Ah ... 120 Ah
12 V : 1 A / 4 A / 8 A,
24 V : 1 A / 4 A
Battery charging voltage:
14.4 V / 14.7 V DC
28.8 V / 29.4 V DC
LED indicator:
LCD display:
Main features:
Microprocessor control system
Fully automatic 10-stage charging process
Keeping the battery charged
Detection and regeneration of an exhausted battery
Short-circuit protection, Overvoltage
Overcharge protection
Thermal protection
Protection against reverse polarity connection

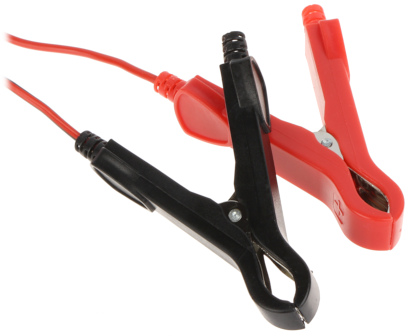

Insulated crocodile clips
The device is designed to work both inside and outside the building
Easy to hook
Power supply:
220 ... 240 V AC / 50 Hz
Power consumption:
max. 140 W
"Index of Protection":
IP65
Isolation class:
Class II
Operation temp:
-5 °C ... 40 °C
Weight:
0.65 kg
Dimensions:
218 x 90 x 50 mm
Manufacturer / Brand:
MW POWER
Guarantee:
2 years
