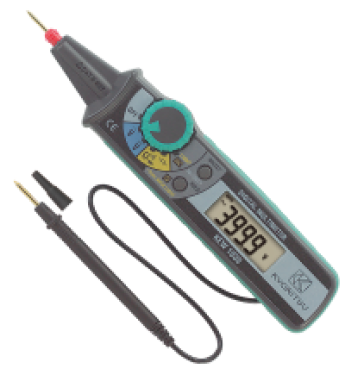

Multimeeter pliiatstüüpi, digitaalne, KEW1030

DC V	400m/4/40/400/600V (5 Range auto) ±0.8%rdg ±5dgt(400mV - 400V) ±1.0%rdg ±5dgt(600V)
AC V	4/40/400/600V (4 Range auto) ±1.3%rdg ±5dgt (4/40V) (50/60Hz) ±1.6%rdg ±5dgt (400/600V) (50/60Hz)
Ω	400/4k/40k/400k/4M/40MΩ (6 Range auto) ±1.0%rdg ±5dgt (400Ω - 4MΩ) ±2.5%rdg ±5dgt (40MΩ)
Continuity buzzer	Buzzer sounds when resistance is 120Ω or less.
Diode test	Test voltage approx. 0.3 - 1.5V
Capacitance	50n/500n/5µ/50µ/100µF (5 Range auto) ±3.5%rdg ±10dgt (50nF) ±3.5%rdg ±5dgt (500n - 50µF) ±4.5%rdg ±5dgt (100µF)
Frequency	5/50/500/5k/50k/200kHz ±0.1%rdg ±5dgt (Measurable input: 1.5Vrms or more)
DUTY	0.1 - 99.9% ±2.5%rdg ±5dgt (Pulse width / Pulse cycle)
Measurement functions	The measured value can be hold by pressing Data hold button
Other functions	When the battery voltage drops to 2.4V±0.2V or less Built-in
Applicable standards	IEC 61010-1: 2001 CAT III 600V IEC 61010-031 IEC 61326-1
Power source	Button type battery LR44 (SR44)1.5V × 2
Dimensions	190(L) × 39(W) × 31(D)mm
Weight	Approx. 100g (including batteries
Included Accessories	Carrying case, LR44 (1.5V) × 2, Instruction manual

58,06 € (ilma km-ta)

Müügitingimused
Hinnad ei sisalda käibemaksu.

Manufacturer Part Number: KEW1030
Tootekood: EE-100-178-943

Weight

0.678 kg
