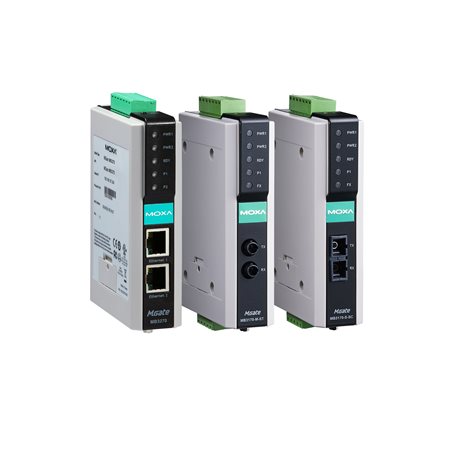

Modbus Serial to Ethernet Gateway, 1 port, 12-48 VDC, 2 KV isolatsiooniga IEX, -40 kuni 75°C

  • Supports Auto Device Routing for easy configuration
  • Supports route by TCP port or IP address for flexible deployment
  • Connects up to 32 Modbus TCP servers
  • Connects up to 31 or 62 Modbus RTU/ASCII slaves
  • Accessed by up to 32 Modbus TCP clients (retains 32 Modbus requests for each Master)
  • Supports Modbus serial master to Modbus serial slave communications
  • Built-in Ethernet cascading for easy wiring
  • 10/100BaseTX (RJ45) or 100BaseFX (single mode or multi-mode with SC/ST connector)
  • Emergency request tunnels ensure QoS control
  • Embedded Modbus traffic monitoring for easy troubleshooting
  • Serial port with 2 kV isolation protection (for “-I” models)
  • -40 to 75°C wide operating temperature models available
  • Supports redundant dual DC power inputs and 1 relay output

  • Introduction

    The MGate MB3170 and MB3270 are 1 and 2-port Modbus gateways, respectively, that convert between Modbus TCP, ASCII, and RTU communications protocols. The gateways provide both serial-to-Ethernet communication and serial (master) to serial (slave) communications. In addition, the gateways support simultaneously connecting serial and Ethernet masters with serial Modbus devices. The MGate MB3170 and MB3270 Series gateways can be accessed by up to 32 TCP master/clients or connect to up to 32 TCP slave/servers. Routing through the serial ports can be controlled by IP address, TCP port number, or ID mapping. A featured priority control function allows urgent commands to obtain an immediate response. All models are rugged, DIN-rail mountable, and offer optional built-in optical isolation for serial signals.

    Integrate TCP Masters without Altering the Modbus RTU/ASCII Network or Software

    The MB3270 can integrate Modbus TCP with Modbus RTU/ASCII, without modifying the existing Modbus RTU/ASCII architecture or software. With the serial redirector function, a serial master can maintain direct access to serial slave devices through a specially mapped serial port. This allows the serial and TCP masters to access serial slaves simultaneously.

    Optical Fiber for Ethernet Communication

    The MGate MB3170 Series includes 100BaseFX fiber models that support transmission distances up to 4 km for multi-mode models, and up to 40 km for single-mode models. Optical fiber is well-suited for industrial applications because it is immune to electromagnetic noise and interference. For environments that experience high ground loop voltages, fiber provides the best isolation protection, and because there is no danger of sparking, optical fiber is safer than copper wire to use in hazardous environments.

    Auto-Device Routing for Easy Configuration (Patent Pending)

    Moxa’s Auto-Device Routing function helps eliminate many of the problems and inconveniences encountered by engineers who need to configure large numbers of Modbus devices. A single mouse click is all that’s required to set up a slave ID routing table and configure Modbus gateways to automatically detect Modbus requests from a supervisory control and data acquisition (SCADA) system. By removing the need to manually create the slave ID routing table, the Auto-Device Routing function saves engineers significant time and cost.

    Priority Control for Urgent Commands (Patented)

    As Modbus networks increase in size and complexity, the lag time between commands and responses becomes a major concern. Advanced models of the MB3000 Series provide a priority control function for urgent commands, allowing users to force certain commands to get an immediate response. Depending on your system’s requirements, different methods are available to define which commands receive priority.
    Patent Numbers: (US/TW)
    • US7,743,192 B2/I332618
    • US7,725,635 B2/I321007

10/100BaseT(X) Ports (RJ45 connector)

2 (1 IP, Ethernet cascade)
Auto MDI/MDI-X connection

Magnetic Isolation Protection

1.5 kV (built-in)

Optical Fiber

Optical Fiber

  • Industrial Protocols

    Modbus TCP Client (Master), Modbus TCP Server (Slave)

  • Configuration Options

    Web Console (HTTP/HTTPS), Device Search Utility (DSU), MGate Manager, Telnet Console

  • Management

    ARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP, NTP Client

  • MIB

    RFC1213, RFC1317

  • Time Management

    NTP Client

  • No. of Ports

    MGate MB3170 Series: 1
    MGate MB3270 Series: 2

  • Connector

    MGate MB3170/MB3170I: DB9 male for RS-232 and terminal block for RS-422/485
    MGate MB3270/MB3270I: 2 x DB9 male

  • Serial Standards

    RS-232/422/485 (software selectable)

  • Baudrate

    50 bps to 921.6 kbps

  • Data Bits

    7, 8

  • Parity

    None, Even, Odd, Space, Mark

  • Stop Bits

    1, 2

  • Flow Control

    DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS

  • RS-485 Data Direction Control

    ADDC® (automatic data direction control)

  • Pull High/Low Resistor for RS-485

    1 kilo-ohm, 150 kilo-ohms

  • Terminator for RS-485

    120 ohms

  • Isolation

    MGate MB3170I: 2 kV (I models)
    MGate MB3170I-T: 2 kV (I models)
    MGate MB3170I-M-SC: 2 kV (I models)
    MGate MB3170I-M-SC-T: 2 kV (I models)
    MGate MB3170I-S-SC: 2 kV (I models)
    MGate MB3170I-S-SC-T: 2 kV (I models)
    MGate MB3270I: 2 kV (I models)
    MGate MB3270I-T: 2 kV (I models)

  • RS-232

    TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

  • RS-422

    Tx+, Tx-, Rx+, Rx-, GND

  • RS-485-2w

    Data+, Data-, GND

  • RS-485-4w

    Tx+, Tx-, Rx+, Rx-, GND

  • Industrial Protocols

    Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

  • Max. No. of Client Connections

    32

  • Max. No. of Server Connections

    32

  • Input Voltage

    12 to 48 VDC

  • Input Current

    MGate MB3170/MB3270: 435 mA @ 12 VDC
    MGate MB3170I/MB3170-S-SC/MB3170I-M-SC/MB3170I-S-SC: 555 mA @ 12 VDC
    MGate MB3270I/MB3170-M-SC/MB3170-M-ST: 510 mA @ 12 VDC

  • Power Connector

    7-pin terminal block

  • Contact Current Rating

    Resistive load: 1 A @ 30 VDC

  • Housing

    Plastic

  • IP Rating

    IP30

  • Dimensions (with ears)

    29 x 89.2 x 124.5 mm (1.14 x 3.51 x 4.90 in)

  • Dimensions (without ears)

    29 x 89.2 x 118.5 mm (1.14 x 3.51 x 4.67 in)

  • Weight

    MGate MB3170 Series: 360 g (0.79 lb)
    MGate MB3270 Series: 380 g (0.84 lb)

  • Operating Temperature

    MGate MB3170: 0 to 60°C (32 to 140°F)
    MGate MB3170-T: -40 to 75°C (-40 to 167°F)
    MGate MB3170-IEX: 0 to 60°C (32 to 140°F)
    MGate MB3170-T-IEX: -40 to 75°C (-40 to 167°F)
    MGate MB3170-M-SC: 0 to 60°C (32 to 140°F)
    MGate MB3170-M-SC-T: -40 to 75°C (-40 to 167°F)
    MGate MB3170-M-ST: 0 to 60°C (32 to 140°F)
    MGate MB3170-M-ST-T: -40 to 75°C (-40 to 167°F)
    MGate MB3170-S-SC: 0 to 60°C (32 to 140°F)
    MGate MB3170-S-SC-T: -40 to 75°C (-40 to 167°F)
    MGate MB3170I: 0 to 60°C (32 to 140°F)
    MGate MB3170I-T: -40 to 75°C (-40 to 167°F)
    MGate MB3170I-IEX: 0 to 60°C (32 to 140°F)
    MGate MB3170I-T-IEX: -40 to 75°C (-40 to 167°F)
    MGate MB3170I-M-SC: 0 to 60°C (32 to 140°F)
    MGate MB3170I-M-SC-T: -40 to 75°C (-40 to 167°F)
    MGate MB3170I-S-SC: 0 to 60°C (32 to 140°F)
    MGate MB3170I-S-SC-T: -40 to 75°C (-40 to 167°F)
    MGate MB3270: 0 to 60°C (32 to 140°F)
    MGate MB3270-T: -40 to 75°C (-40 to 167°F)
    MGate MB3270-IEX: 0 to 60°C (32 to 140°F)
    MGate MB3270-T-IEX: -40 to 75°C (-40 to 167°F)
    MGate MB3270I: 0 to 60°C (32 to 140°F)
    MGate MB3270I-T: -40 to 75°C (-40 to 167°F)
    MGate MB3270I-IEX: 0 to 60°C (32 to 140°F)
    MGate MB3270I-T-IEX: -40 to 75°C (-40 to 167°F)

  • Storage Temperature (package included)

    -40 to 85°C (-40 to 185°F)

  • Ambient Relative Humidity

    5 to 95% (non-condensing)

  • Safety

    EN 60950-1, UL 508

  • EMC

    EN 55032/24

  • EMI

    CISPR 32, FCC Part 15B Class A

  • EMS

    IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
    IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m
    IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV
    IEC 61000-4-5 Surge: Power: 2 kV
    IEC 61000-4-6 CS: 10 V
    IEC 61000-4-8 PFMF
    IEC 61000-4-11 DIPs

  • Hazardous Locations

    ATEX, Class I Division 2, IECEx If you need an IECEx certificate for this product, please contact a Moxa sales representative.

  • Maritime

    DNV-GL

  • Freefall

    IEC 60068-2-32

  • Shock

    IEC 60068-2-27

  • Vibration

    IEC 60068-2-6, IEC 60068-2-64

  • Time

    MGate MB3170/MB3170I Series: 1,349,710 hrs
    MGate MB3170-M-SC/M-ST/S-SC Series: 1,175,887 hrs
    MGate MB3170I-M-SC Series: 768,343 hrs
    MGate MB3170I-S-SC Series: 763,707 hrs
    MGate MB3270/MB3270I Series: 1,236,384 hrs

  • Standards

    Telcordia SR332

  • Warranty Period

    5 years
511,00 € 511,00 € (ilma km-ta)

  • Weight
 Lisa ostukorvi
Lisa soovinimekirja
Müügitingimused
Hinnad ei sisalda käibemaksu.
Dokumendid
moxa-mgate-mb3170-mb3270-series-datasheet-v1.0.pdf

Manufacturer Part Number: MGate MB3170I-T-IEX
Tootekood: EE-100-183-712

Spetsifikatsioon

Weight 1 kg
